Spinpoint M8 Product Manual REV 2.6
13
INSTALLATION
CHAPTER 4 INSTALLATION
This chapter describes how to unpack, mount, configure and connect a Spinpoint M8 hard disk drive.
It also describes how to install the drive in systems.
4.1 Space Requirements
Figure 4-1 shows the external dimensions of the drive.

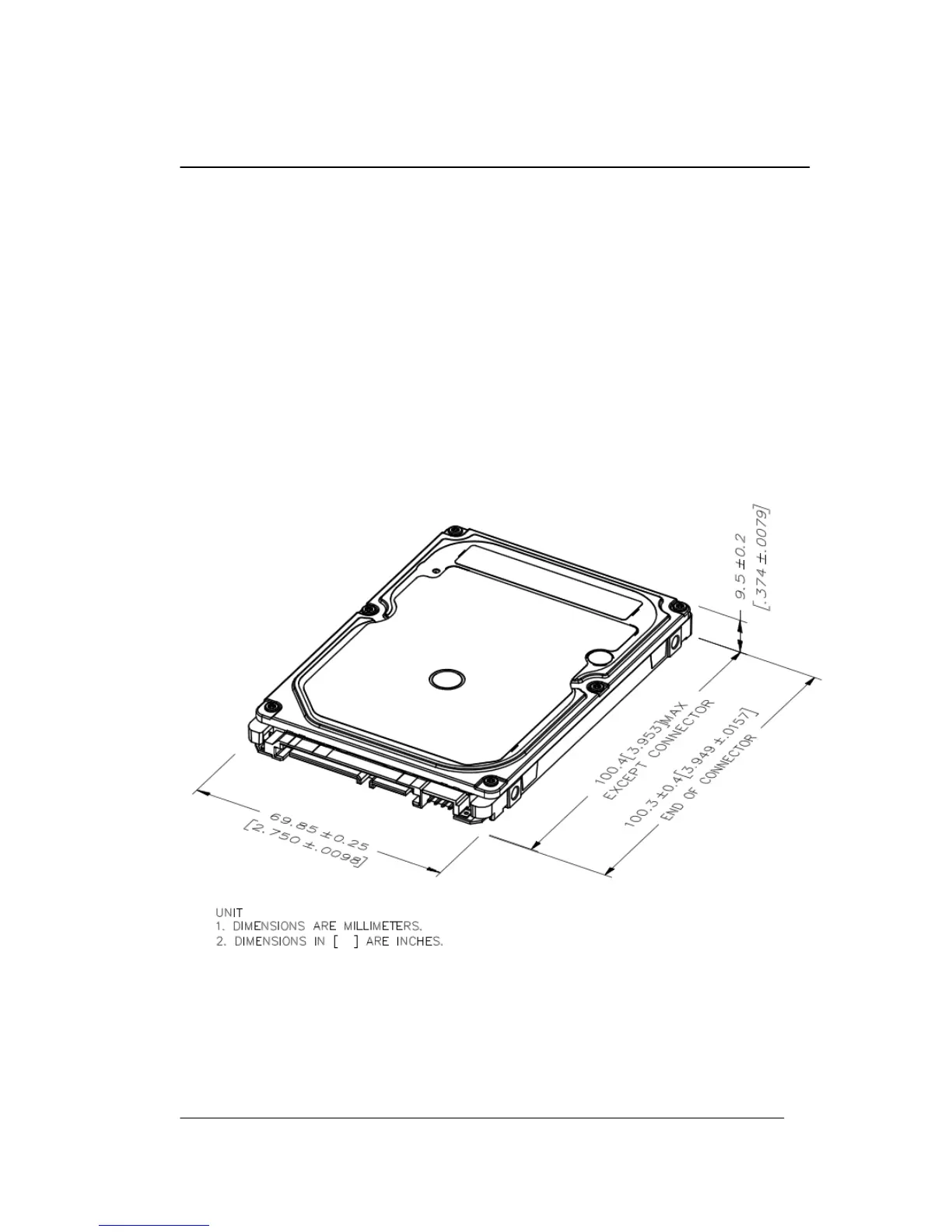

Figure 4-1: Mechanical Dimension
