Seagate Spinpoint M8 - Drive Installation

Spinpoint M8 Product Manual REV 2.6
15
INSTALLATION
4.3.1 Orientation
Figure 4-2 shows the physical dimensions and mounting holes located on each side of the drive. The
mounting holes on Spinpoint M8 hard disk drive allow the drive to be mounted in any direction.

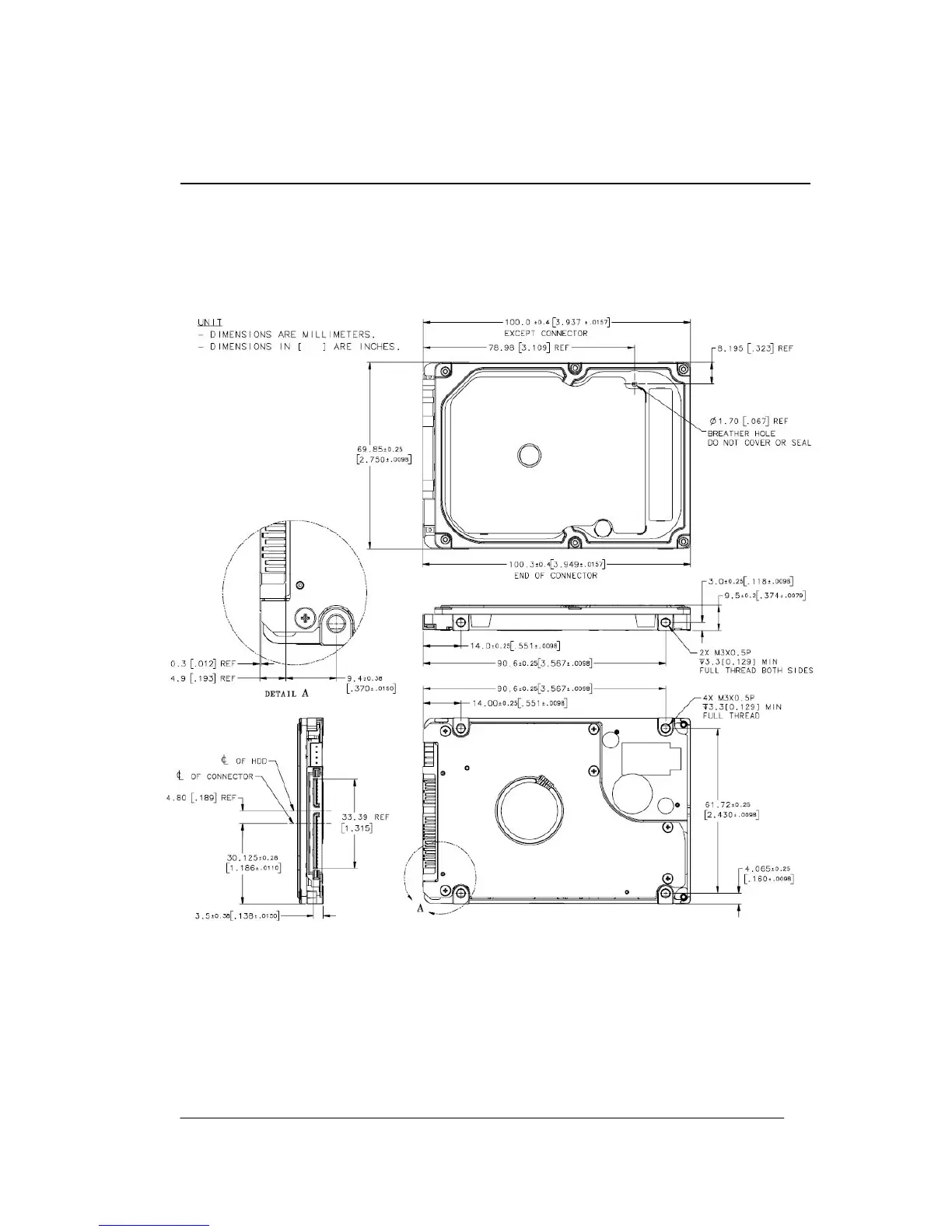

Figure 4-2:
Mounting Dimensions
