SATA-Bus Interface Connector
The SATA-Bus interface connector on the drive connects the drive to an SATA host bus adapter or an
on- board SATA adapter in the computer. Figure 4.6 illustrates the power, SATA, and factory use only
jumper. Figure 4.7 shows pin locations on the SATA drive.

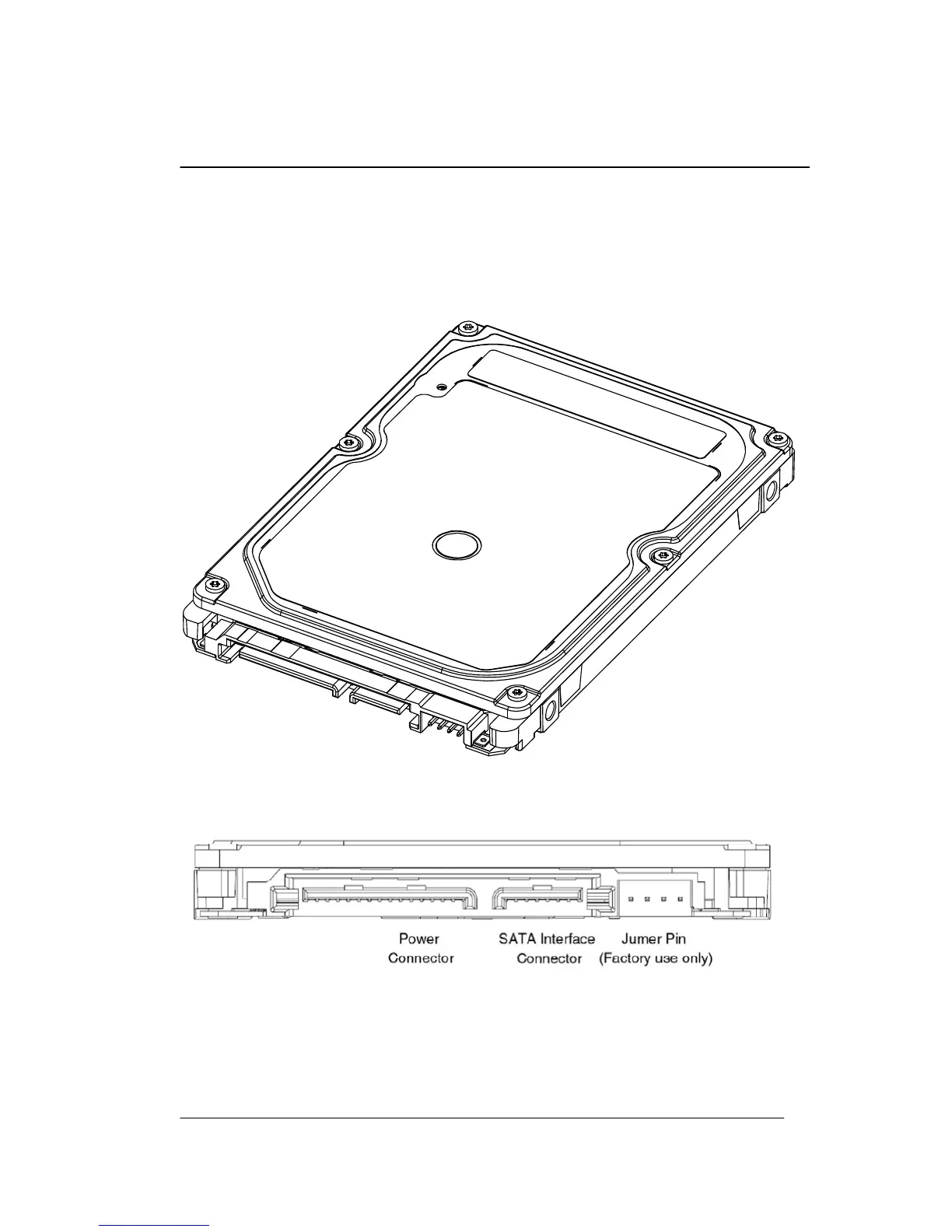

Figure 4-6 HDD Power, SATA Interface, and Factory Jumper Connector
