Seagull Models ZLIN 50 - Aileron Pushrod and Wing Assembly; Aileron Pushrod Horn Installation

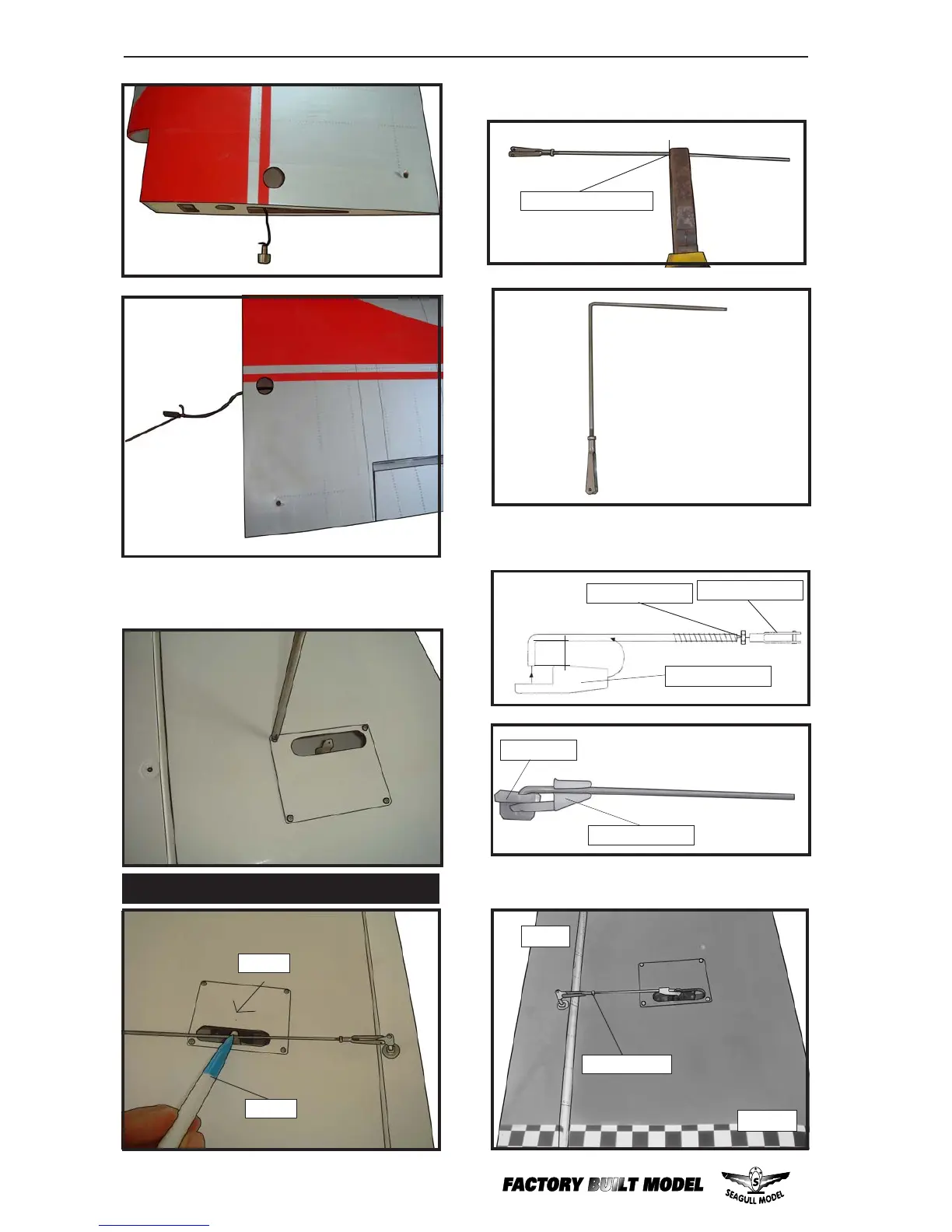

ZLIN 50. Instruction Manual
18
Wing.
Aileron.
M3 lock nut.
1) Mark the control wire where it crosses the
servo arm hole.
Bend at the mark.
AILERON PUSHROD HORN INSTALLATION
9) Set the aileron hatch in place and use a
Phillips screw driver to install it with four wood
screws.
Mark.
Pen.
Snap keeper.
Servo arm.
3) Connect the linkage as shown and secure
the control wire with a snap keeper.
8mm
Snap keeper.
2) Make a 90-degree bend at the mark and cut
off the excess wire leaving 8mm past the bend.
M2 lock nut.
Metal clevis.
