ZLIN 50. Instruction Manual
6
Aluminum Washer.
CONTROL HORN M3
M3 LOCK NUT.
Epoxy.
Aluminum Washer.
16mm.
Epoxy.

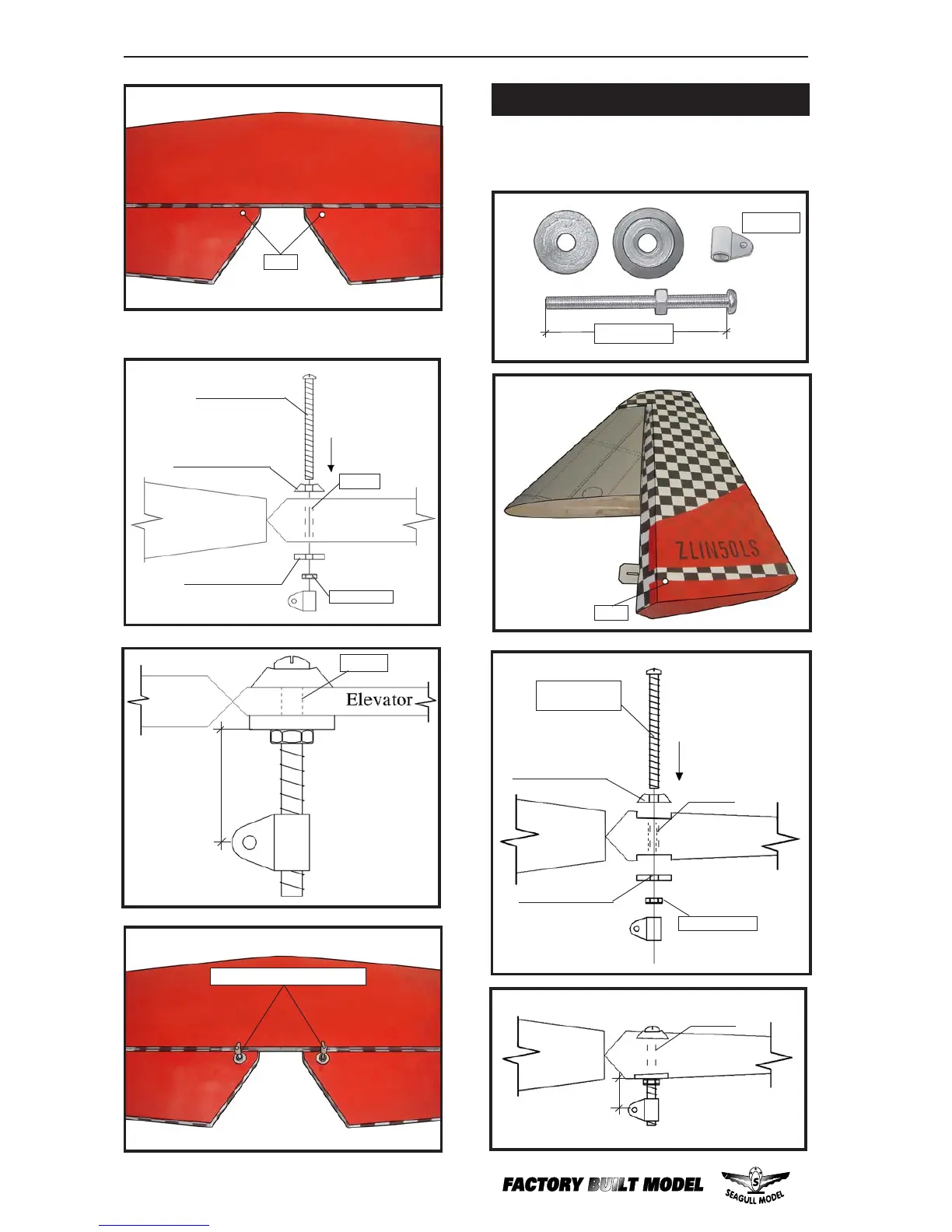

INSTALL RUDDER CONTROL HORN.
Horizontal
Stabilizer.
Elevator control horn.
Horizontal
Stabilizer.
Elevator.
2 sets.
3x50mm.
CONTROL HORN
M3 SCREW.
ALUMINUM WASHER.
ALUMINUM WASHER.
M3 LOCK NUT.
EPOXY.
FUSELAGE
Rudder
18mm.
EPOXY.
Fuselage.
Rudder.
3mm.
Repeat steps to install the rudder control horn
as same as steps done for ailerons.
3mm.
