© 2012 SeaStar Solutions Optimus Operations Manual, Rev. D
2-3
2.4 Optimus EPS

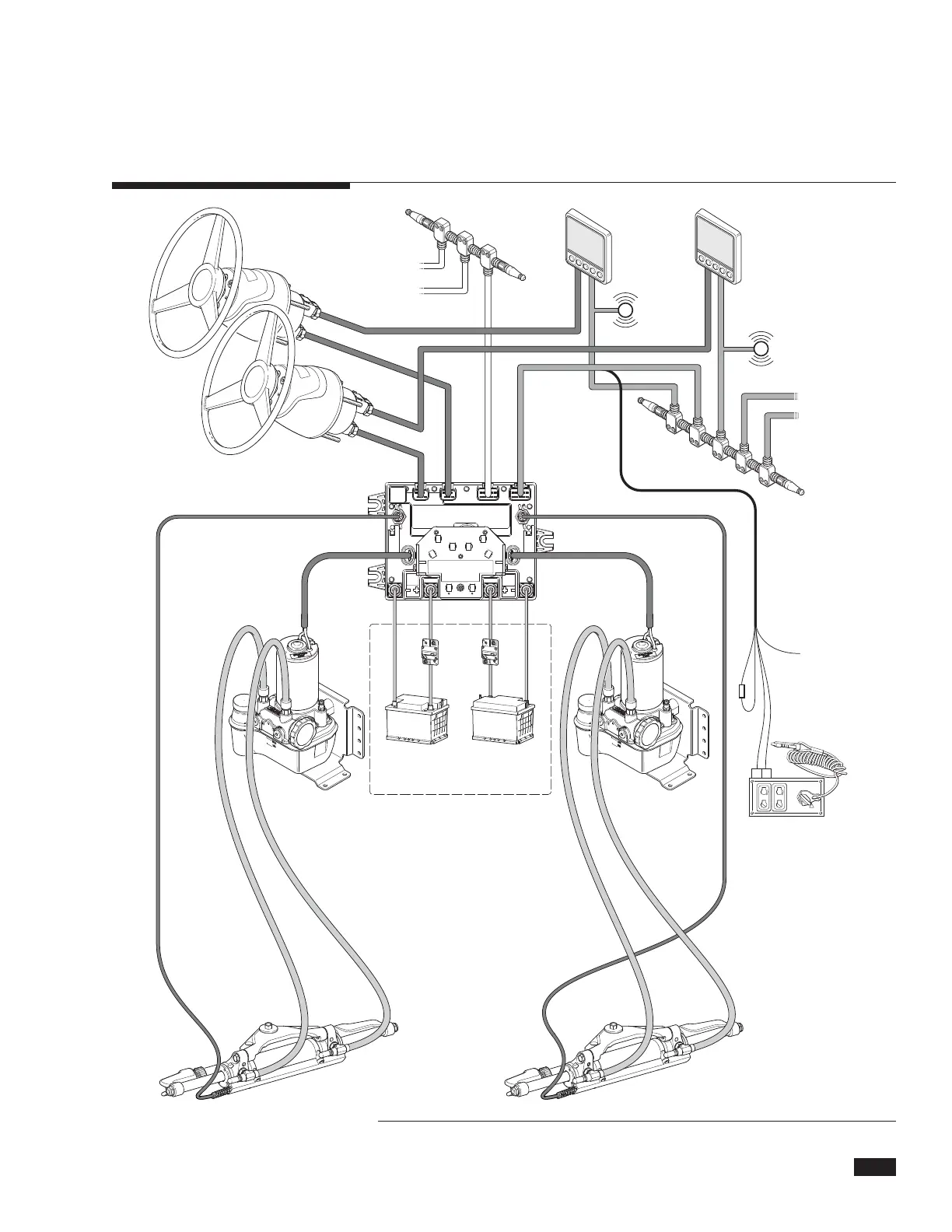

Dual Station System Diagram
Figure 2-2. Optimus EPS system diagram, dual station.
RUN
OFF
CAN1 NETWORK CAN2 NETWORK
PCM
HELM
HELM
COLOR
CANtrak
COLOR
CANtrak
BUZZER
SERVICE PORT
ENGINE GATEWAY
12 VOLT POWER
CAN3 NETWORK
NMEA2000
AUTOPILOT CCU
SWITCH PANEL
SMART
CYLINDER
SMART
CYLINDER
PS
BLACK
GREY
PURPLE
RED
COMPONENTS NOT SUPPLIED
BY SEASTAR SOLUTIONS
BREAKERS
PORT
POWER
SOURCE
STARBOARD
POWER
SOURCE
BUZZER
POWER
STEERING
PUMP
HYDRAULIC
HOSE
HYDRAULIC
HOSE
POWER
STEERING
PUMP
