Replacing a blown fuse

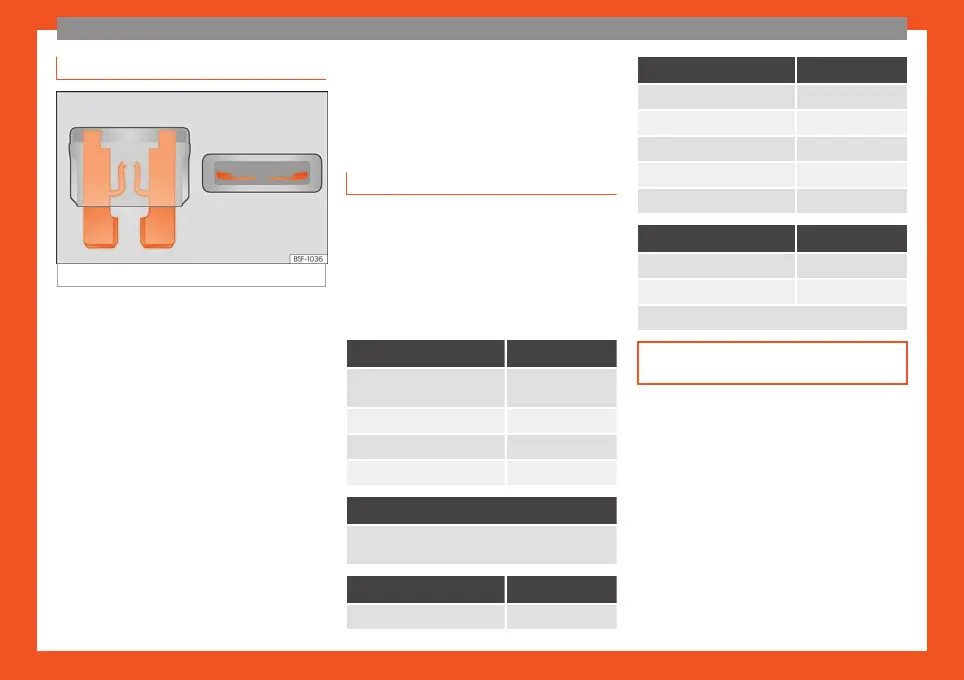

Fig. 69
Image of a blown fuse.
Preparation
●
Switch off the ignition, lights and all electri-
cal equipment.
●
Open the corresponding fuse box
›
›
›
page 94.
Identifying a blown fuse
A fuse is blown if its metal strip is ruptured
››› Fig. 69.
●
Point a lamp at the fuse to see if it has
blown.
To replace a fuse
●
Remove the fuse.
●
Replace the blown fuse by one with an
identical amperage rating (same colour and
markings) and identical size.
●
Replace the cover again or close the fuse
box lid.
Bulbs
Bulbs (12 V)
Note: Depending on the lev
el of equipment
fitted in the vehicle, LEDs may be used for
part or all of the interior and/or exterior light-
ing. LEDs have an estimated life that exceeds
that of the vehicle. If an LED light fails, go to
an authorised workshop for its replacement.
Light source used for each function
Halogen headlights. Type
Daytime running light/side
light
LED (it cannot be
replaced)
Dipped beam headlights
H7 LL
Main beam headlights H7 LL
Turn signal PY21W
Full-LED main headlights
No bulbs may be replaced. All functions are with
LEDs
Front fog light Type
Fog/cornering lights* H8
Rear lights Type
Brake light/tail light P21W LL
Side lights P21W LL
Turn signal PY21W LL
Retro fog light P21W LL
Reverse lights W16W
LED rear lights Type
Turn signal PY21W LL
Reverse lights W16W
The remaining functions work with LEDs
››› page 97
