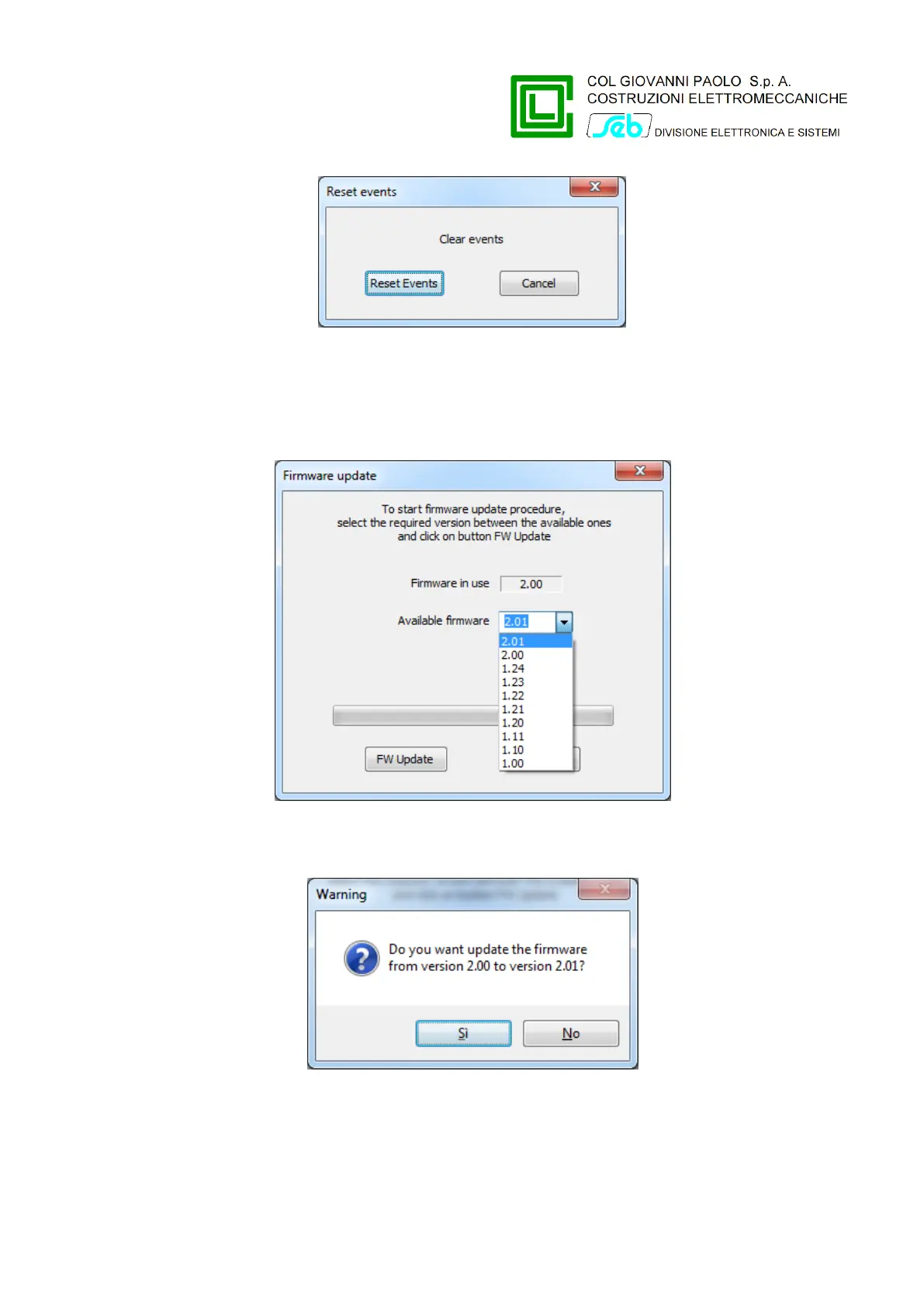

The item "Firmware Update" starts the procedure for updating the firmware of the device.
The program read the current firmware release from RGDA-A70 and then shows a dialog-box to the
user, to select which firmware version to use for the firmware upgrade, selecting from the available
ones, as shown in the following figure.
Clicking on button “FW Update”, if it was possible to detect the firmware in use on the RGDAT-A70, a
dialog-box asks to the user a further confirmation before to start the firmware update procedure.
Clicking on button “Yes”, the RGDAT-A70 runs the boot-loader and the firmware update procedure
starts automatically.
P515D851 Rev. E November 2019 Pag. 32 of 45
