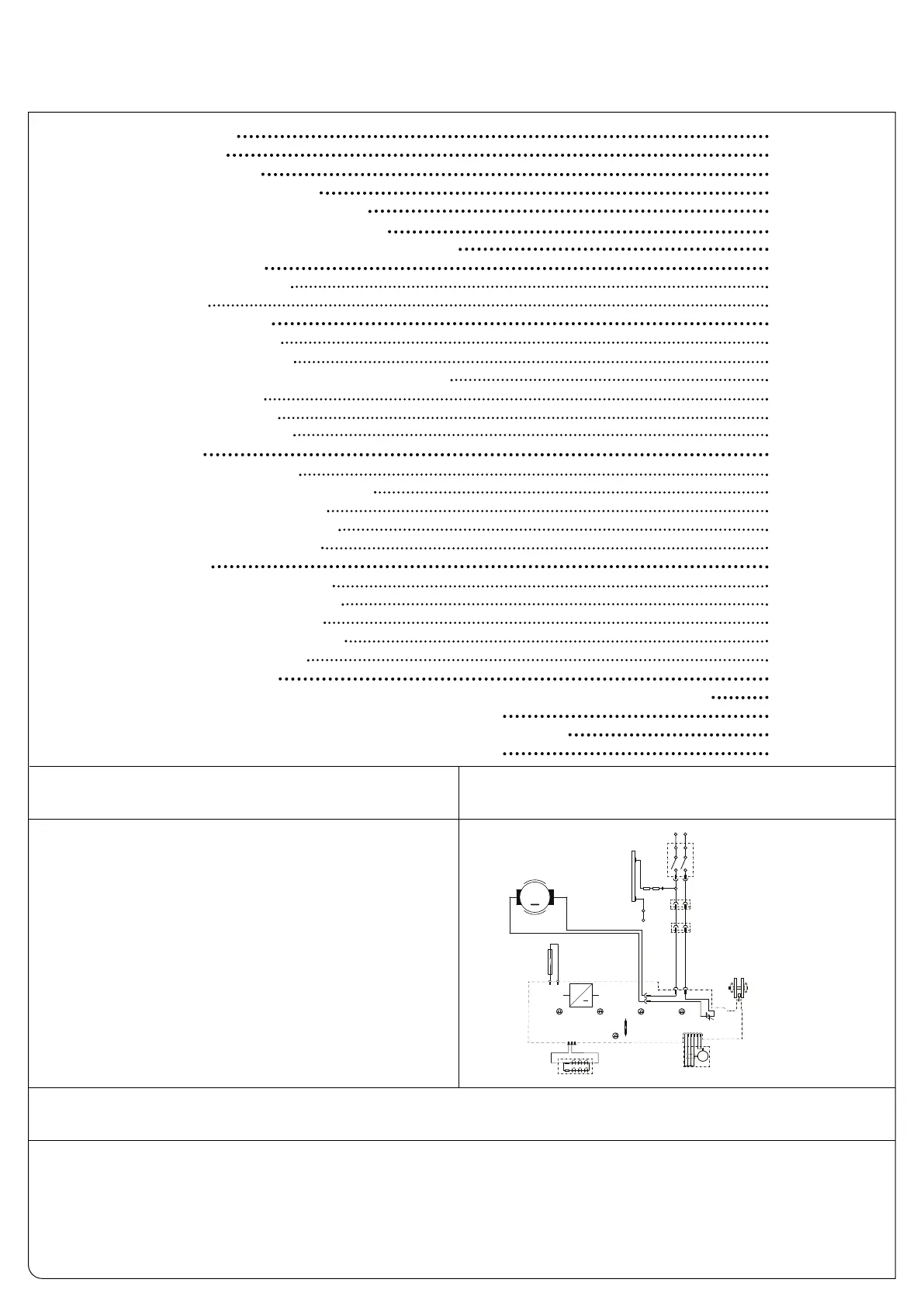

Sebo automatic X Series User Manual

TABLE OF CONTENTS
TECHNICAL DETAILS
M
M
~
Servo motor 12V
Servomoteur 12V
V
accum motor
Moteur d‘aspiration
H
all sensor
Sonde de Hall
~
R
eed contact swivel switch
Contact à lames souples interrupteur joint
Reed contact / indicator BOOST switch*
Contact àlames souplesinterrupteur/ indicateurBOOST*
*
depending on model
*
Suivant les modèles
Head lamp*
Voyant de recherche*
M
ain switch
I
nterupteur principal
Filter housing
L
ogement sac poussiére
Handle tube
Tube de manche
120V ~
PCB power supply /controller
CircuitimpriméAlimentation/ Contr
ôleurélectronique
© SEBOStein& Co.12/2017RH
Wiring SEBO automatic X7 /X8
120 V, 2-wire
including options
BOOST
Head lamp
W:\GA_aktuell\X_XP_Geräte\USA\Abbildungen\X7-8_Wiring_BOOST+LAMP_US_2wire.ai
U.S. Patents: 5,056,175
4,955,106
5,028,245
Technical Details 2
Wiring Diagram 2
How To Contact SEBO 2
Important Safety Instructions 3
SEBO AUTOMATIC X Product Features 4
Standard Features of all SEBO Vacuums 5
Optional Attachments, Accessories, Bags & Filters 6
Identification of Parts 7
Standard Attachments 7
Assembly 7
Operating Instructions 8
Starting the Machine 8
Operating the Machine 8
Using the Cleaning Wand, Hose & Attachments 9
The Display Panel 9
The BOOST Function 9
The Adjustment Wheel 9
Maintenance 10
Changing the Filter Bag 10
Changing the Pre-motor Microfilter 10
Changing the Exhaust Filter 10
Changing the Brush Roller(s) 10
Changing the Sealing Strip 10
Clog Removal 11
Clogs in the Airflow Pathway 11
Clogs in the Attachment Hose 11
Clogs in the Cleaning Wand 11
Clogs in Entrance to Filter Bag 11
Clogs in the Swivel Neck 11
Trouble-Shooting Guide 12
AUTOMATIC X7 I X7 Premium | X8 Bag Housing and Handle Schematic and Part Numbers 13
AUTOMATIC X7 Power Head Schematic and Part Numbers 14
AUTOMATIC X7 Premium Power Head Schematic and Part Numbers 15
AUTOMATIC X8 Power Head Schematic and Part Numbers 16
WIRING DIAGRAM
2
To contact SEBO in the United States of America:
SEBO America, LLC
Telephone: (800) 334-6614
Fax: (303) 792-9196
Website: www.sebo.us
To contact SEBO in Canada:
SEBO Canada
Telephone: (800) 661-8687
Fax: (800) 270-4807
Website: www.sebocanada.ca
HOW TO CONTACT SEBO
For Warranty coverage information please refer to your Warranty Card included with your SEBO vacuum cleaner.
Vacuum motor 120 volts (12 amps)
Water lift (at motor) 91.5 inches
Airflow (at motor) 100.2 CFM
Filter bag capacity 1.4 gal.
Sound level 69 dBA
Body weight X7-16.7 lbs / X8-16.9 lbs
Motor protection electronic cut-out
Working width X7-12 inches / X8-15 inches

Sebo automatic X Series Specifications

General

Brand	Sebo
Model	automatic X Series
Category	Vacuum Cleaner
Language	English
