Sebo automatic X Series User Manual

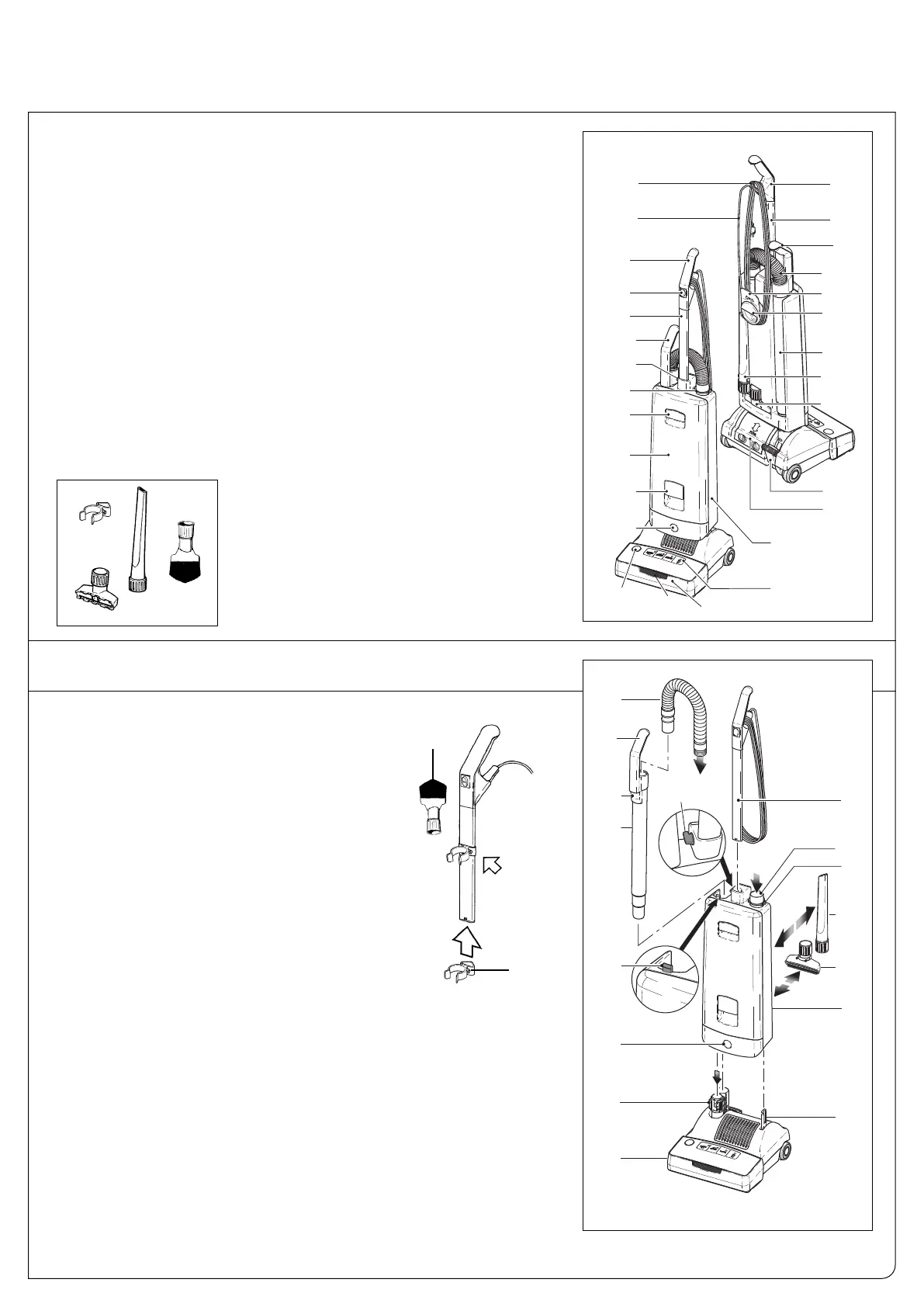

IDENTIFICATION OF PARTS
7
ASSEMBLY
1. Handle grip
2
. On/Off switch
3. Handle assembly
4. Cleaning wand handle
5. Handle catch
6. Retaining ring
7. Cover release flap
8
. Front cover
9. Carrying handle
10. Housing release button
11. Brush roller release button
12. Head lamp*
13. Power head with brush
14. Display
15. Bag housing
16. Cable (cord)
*Depending on model
1
4
18
21
22
23
24
20
15
19
3
1
16
2
3
4
9
5
8
10
12
7
6
25
14
11
13
17
3
30
22
6
5
28
13
10
31
21
18
23
29
15
4
32
17. Upper cable (cord) hook
1
8. Attachment hose
19. Cable (cord) hook
20. Carrying handle
21. Cleaning wand (active wand)
22. Crevice nozzle
23. Upholstery nozzle
2
4. Foot pedal
25. Exhaust filter cover
26. Dusting brush clamp
27. Dusting brush
28. Swivel neck
29. Support lever
30. Connecting tube
31. Protruding tab
32. Hose release button
Place the power head (13) on the floor with the swiv-
el neck (28) and the support lever (29) upright. Hold
the bag housing (15) vertically and place it over the
swivel neck (28) and support lever (29). Push firmly
and evenly down so that the housing release button
(10) snaps outward to its “locked” position.
Slide the dusting brush clamp (26) onto the handle
tube and tighten the screw. The handle of the dust-
ing brush (27) will now snap into the clamp.
To lock the handle (3) to the bag housing (15), turn
the handle catch (5) at the handle joint of the bag
housing (15) forward to “open” position. Then slide
the handle assembly (3) in as far as possible and
lock it in by turning the handle catch to the closed
position.
Push the black end of the attachment hose (18) into
the connecting tube (30) so that it clicks into place.
Insert the cleaning wand (21) into the swivel neck (28)
and push the handle (4) over the protruding tab (31).
Insert crevice nozzle (22) and upholstery nozzle (23)
into the recesses in the back of the machine.
Attach dusting
brush clamp
with screw
26
27
27
23
22
26
Standard Attachments
22. Crevice nozzle
23. Upholstery nozzle
26. Dusting brush clamp
27. Dusting brush
NOTE: All illustra-
tions shown in this
manual represent
the X7 model except
where part numbers
and instructions are
different for each
model. In those
instances, illustra-
tions for both the X7
and X8 will be
shown.
