SEBO duo Brush Machine
Pos. Part # Description
1 1030 UL Cable clamp
2 0106 Screw 3.9 x 13 A2
3 3125 Handle cable
5 3137 DG Switch cap
6 3136 HG Switch cap holder
7 0127 Screw taptite M4 x 10
9 5353 HG Cable
10 3055 HG Spot cleaning brush
11 3142 HG Handle grip
12 0532 ER Rocker switch
13 0105 Screw 3.9 x 19
14 5352 HG Clamp
15 0129 Screw taptite M4 x 12
16 3115 Handle
17 3118 HG Cable hook
19 3027 HG Handle connector cover
20 3113 HG Handle connector
21 1020 UL Contact cover
22 0103 Screw 3.9 x 16
23 3122/H Handle cpl.
25 3033 Storage tray
26 2007 MG Bumper
27 3005 ER Brush assembly
28 3002 SW Base plate
29 0112 Screw M4 x 10 A2
30 3010 HG Bearing block RH
31 3001 HG Brush housing
32 3032 Handle stop spring
33 0502 Terminal block
34 3049 ER Motor 120 V
05084 S Carbon brush set
35 0141 Locking washer
Pos. Part # Description
37 3038 Drive belt
38 0116 Screw M4 x 30 A2
39 3004 SE Cover
41 0149 Spacer washer
44 2438 HG Plunger button, complete
45 2423 Spring
47 2022 HG Swivel neck cover
48 3111 HG Swivel neck complete
50 3051 Swivel neck support
51 3014 Motor pulley
52 3030 Clamp
53 3013 Pulley
54 3042 Drive belt
55 3022 Gear wheel
56 3036 Spacer
57 3037 Shaft RH
58 0222 Ball bearing
59 3015 Pulley
60 3039 Bridge
61 3035 Shaft LH
62 3021 Gear wheel
63 3018 Pulley
64 3071 Clip
65 3040 End plate
66 3009 Pulley
67 3028 Spring
68 3007 Brush drive cog
69 3074 HG Bearing block
70 3052 HG Bearing block assembly LH
71 3017 Pulley
72 3056 Pulley 12R/Ms

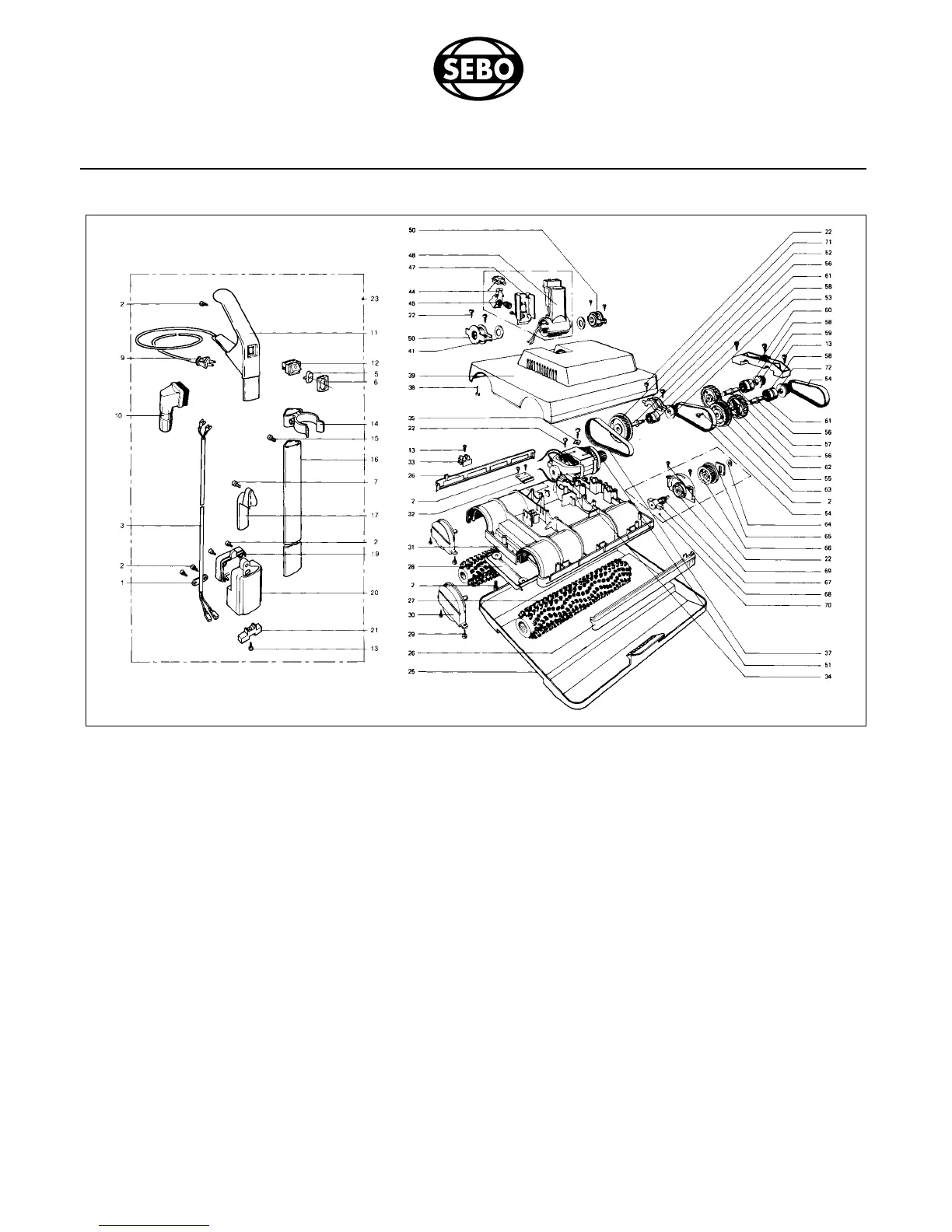

Schematic and Parts List
