Seca 334 LC - Replacing Load Cell and Mains Socket; Fitting Replacement Components

Replacement
seca 334 LC / 335 LC
12.11.2012 /SSC 6 (6) 30-34-00-752a
2 Replacing the load cell and the mains socket
Please be sure to observe the sequence listed below when removing/fitting the parts!
2.1 Replacing the load cell
x Unsolder the load cell from the electronics unit (D).
x Unscrew the load cell (E) from the platform.

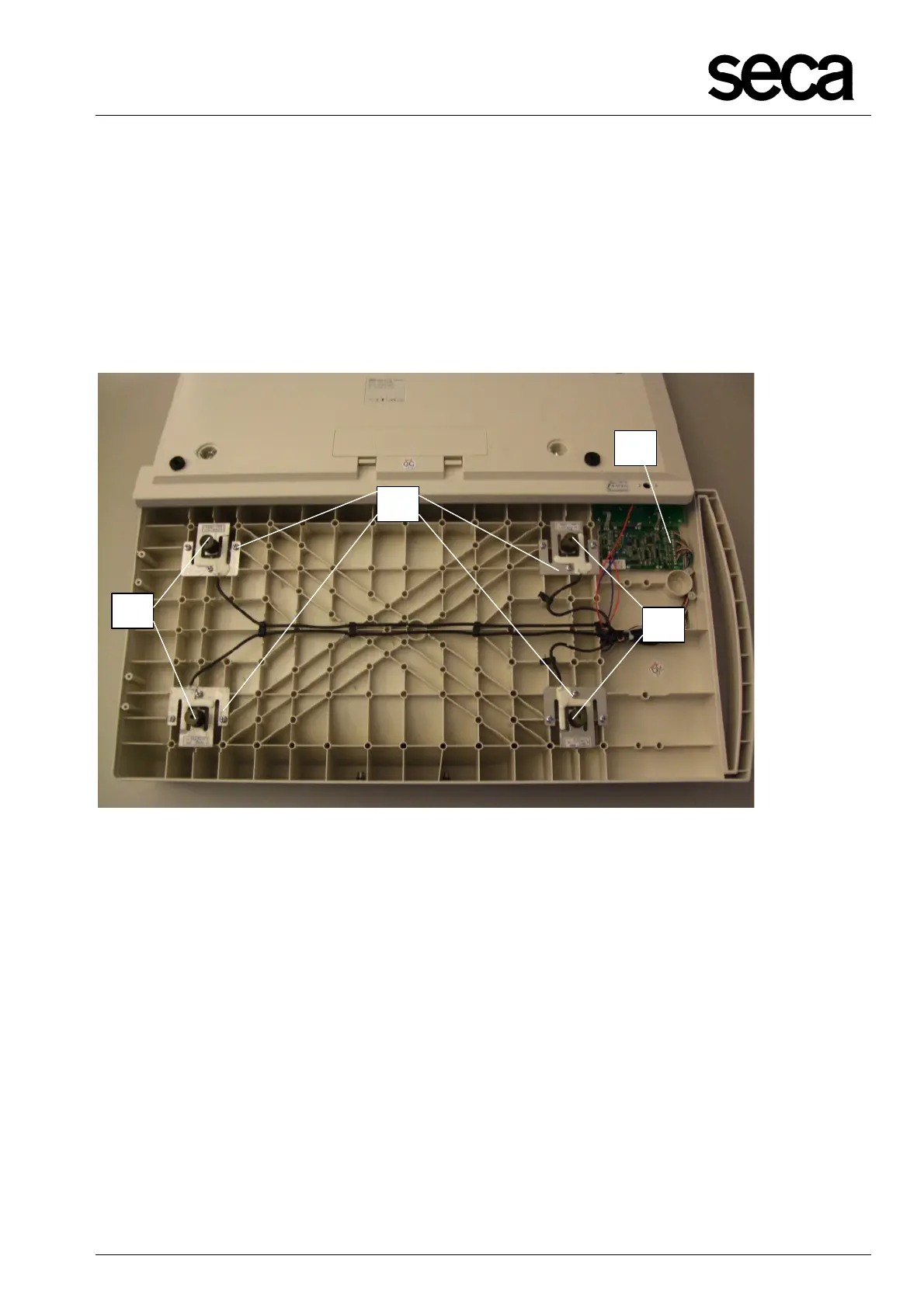

Figure 4: Remove the platform
3 Fitting the replacement components
3.1 Fitting
x Fit in reverse order.
x Torques: load cells (E) 1.5 Nm, rubber puffer (F) 1.5 Nm.
x ATTENTION: When fitting the cables, ensure that they are not damaged!
E
D
F
F
