Seca 634 - Fitting the Display; Wall Bracket

Model 634 15
GB
3. Before you start…

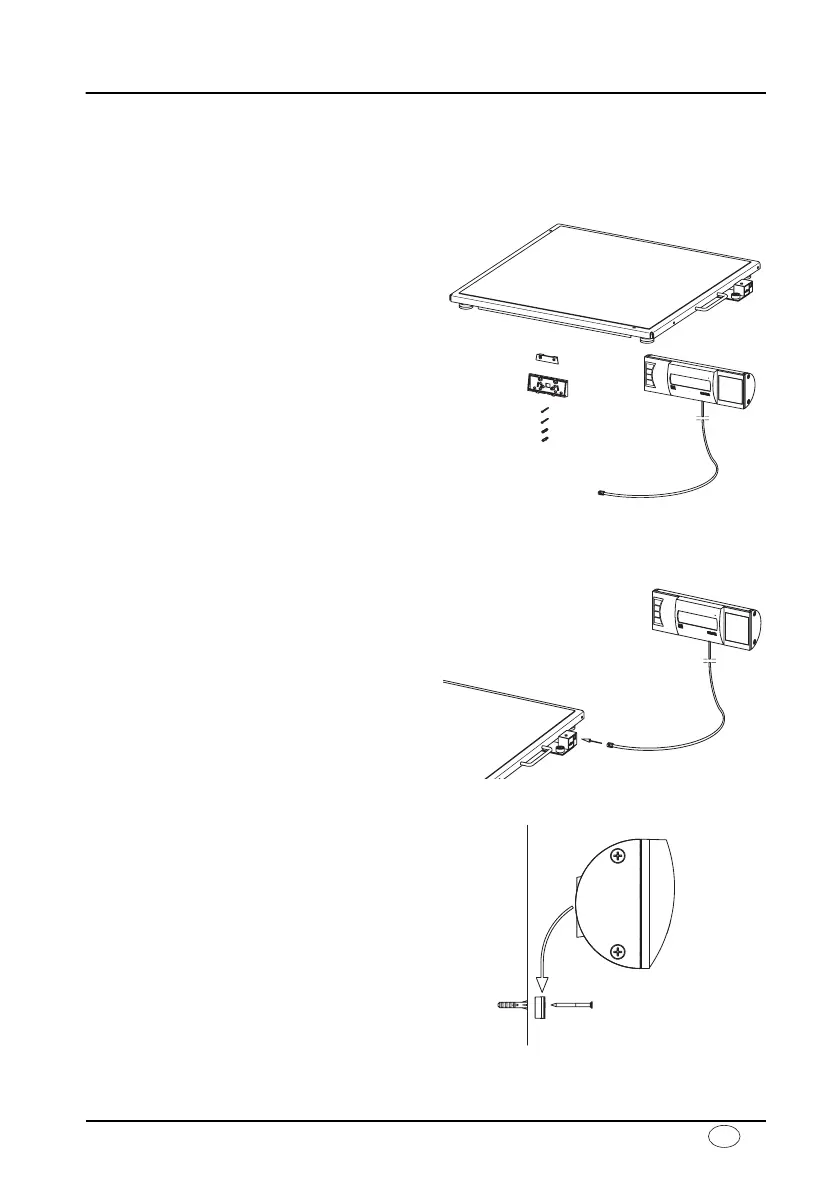

Unpacking
Remove the packaging and place the scale on a firm, level surface.
The scope of supply includes:
• Weighing platform
• Display head plus connecting cable
• Wall bracket
•1 angle adapter
•2 Screws
•2 Rawlplugs
• Set of operating instructions plus
declaration of conformity
Fitting the display
– Carefully put down the scale.
– Connect the connecting cable to the
electronics box.
Wall bracket
– Place the desk-top stand on the display
casing from underneath.
The narrow side must be located at the
top of the display. The desk-top stand
locks in position.
– Fit the wall bracket to the wall at the de-
sired height.
– Push the display casing onto the wall
bracket.
