PUBLIC BGX501-747-R04, Premier 300 User Manual Page 15 of 41
7.
Cover open indicator
8.
Magnet tamper indicator
9.
Phase presence indicator
10.
Quadrant indicator shows import, export, lag and lead. This indicates type of
energy being displayed which can be basic import or export, inductor and
capacitor for reactive lag and reactive lead respectively.

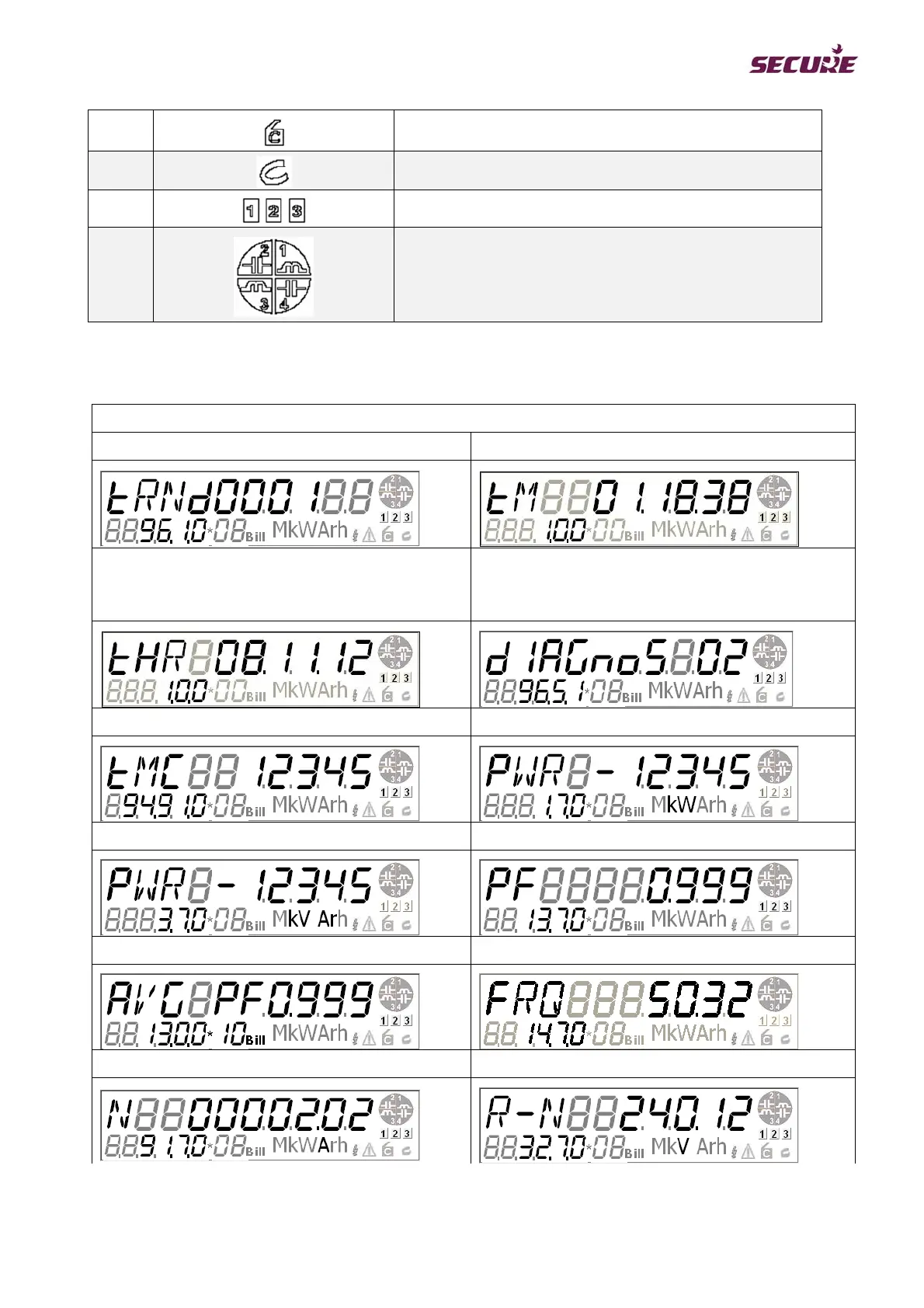

Table 4: Segment / Annunciators details for Premier 300 LCD
The table below shows an indicative list of supported Premier 300 displays. There may be more supported
displays.
General Displays
Meter serial number Time
Date
Self diagnostic check
00: Healthy, 01: NVM Fail, 02: Battery Fail, 03: Both
Fail
Cumulative tamper occurrence count Instantaneous active power
Instantaneous reactive power Instantaneous power factor
Average power factor -history 1 Frequency
Neutral Current Instantaneous voltage R Phase
