Section 16 -Zone Programming
16–9
Wireless Key Predefined Default Templates
YOU MUST
PROGRAMME
THIS BUTTON
LOOP 3
LOOP 1
LOOP 2
LOOP 4
ENROLL AS "BR"
5804BD FRONT VIEW
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
BUTTON A
BUTTON D
BUTTON B
BUTTON C
GREEN/YELLOW
LED
RED/YELLOW
LED
LOOP 3
LOOP 2
LOOP 4
LOOP 1
GRE
GREEN/YELLOW
LED
RED/YELLOW
LED
(YOU MUST PROGRAM
THIS BUTTON)
ENROLL AS "BR"

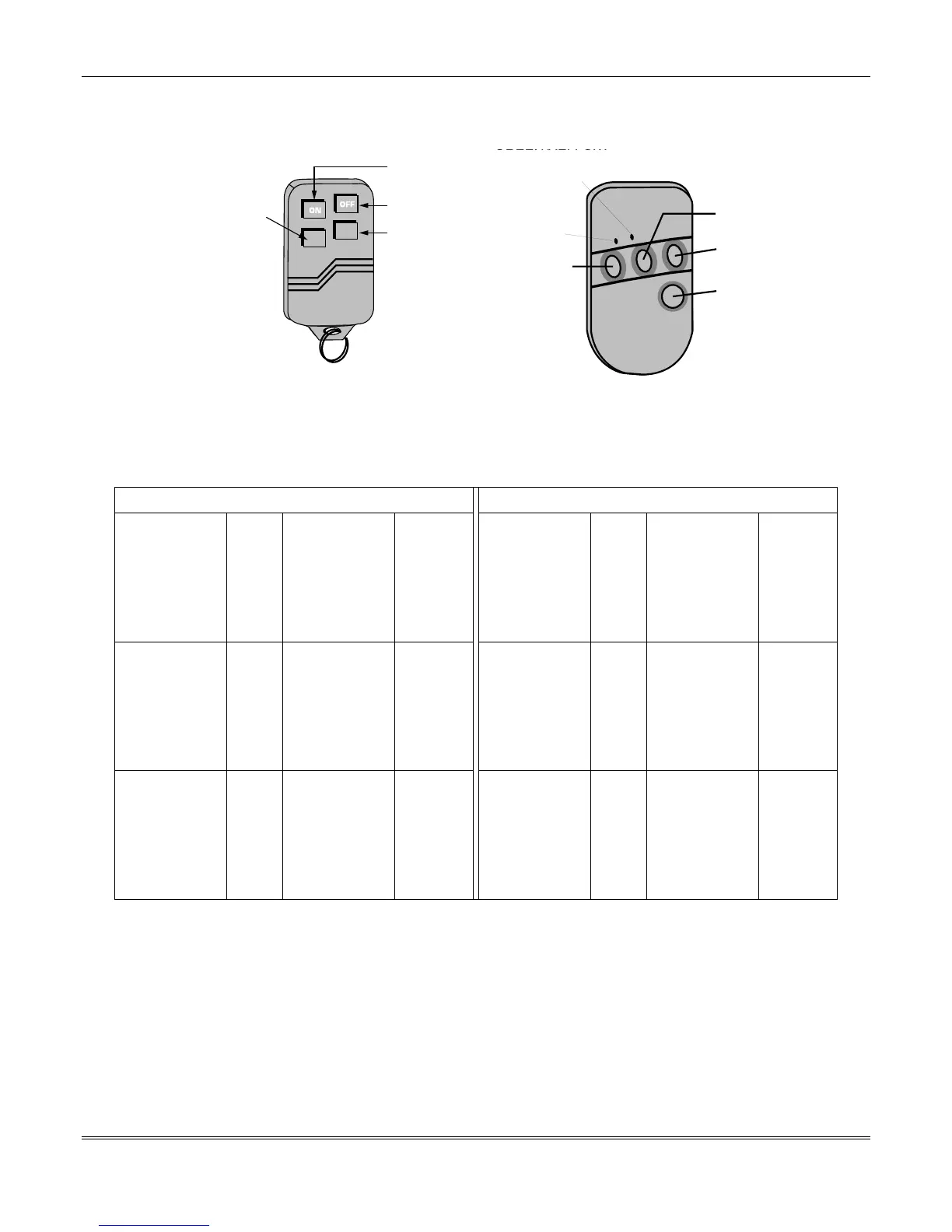

5804 Wireless Key Transmitter 5804BD 2-Way Wireless Key Transmitter
UL NOTE: These transmitters are not designed for use in UL installations
For 5804 For 5804BD
Loop Function Zone Type Loop Function Zone Type
1 No Response 23 1 No Response 23
2 Disarm 22 2 No Response 23
3 Arm Away 21 3 Arm Away 21
TEMPLATE 1
4 No Response 23
TEMPLATE 4
4Disarm 22
Loop Function Zone Type Loop Function Zone Type
1 No Response 23 1 No Response 23
2 Disarm 22 2 Arm Stay 20
3 Arm Away 21 3 Arm Away 21
TEMPLATE 2
4 Arm Stay 20
TEMPLATE 5
4Disarm 22
Loop Function Zone Type Loop Function Zone Type
1 24-hour Panic 07 1 24-hour Panic 07
2 Disarm 22 2 Arm Stay 20
3 Arm Away 21 3 Arm Away 21
TEMPLATE 3
4 Arm Stay 20
TEMPLATE 6
4Disarm 22
