8.9 RESTORING VERTICAL MOVEMENT FOR THE RAD ELEVATING TABLE DUE
TO “DOWN SAFETY” (SW8) MICROSWITCH ACTIVATION
The object of this troubleshooting is to deactivate (close) the “Down Safety”
(SW8) Microswitch allowing the Table to be raised.
1. Remove the Table-top.

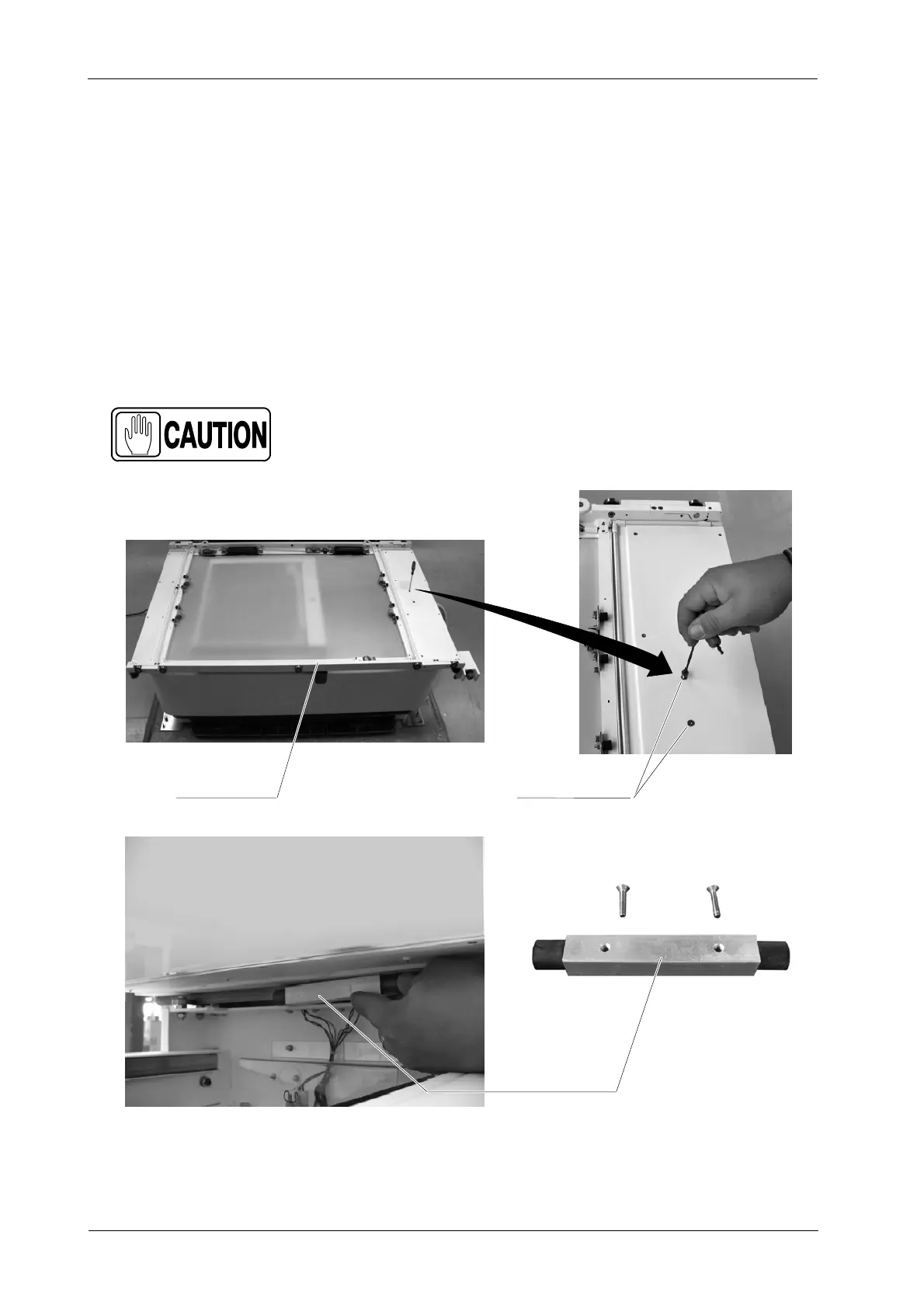

2. While holding the Frame Stop with a hand, carefully remove the two
screws and then the Frame Stop under the Table-Top Frame.
Keep the Frame Stop from falling to prevent any damage
inside the table.
TABLE-TOP FRAME
FRAME STOP SCREWS
FRAME STOP
