5.3.3 INSTALLATION EXAMPLE OF A DIGITAL DETECTOR IN THE RAD TABLE
Perform this procedure before installing the Tabletop. In case the
Tabletop has been already installed, remove it as explained in this
Service Manual.

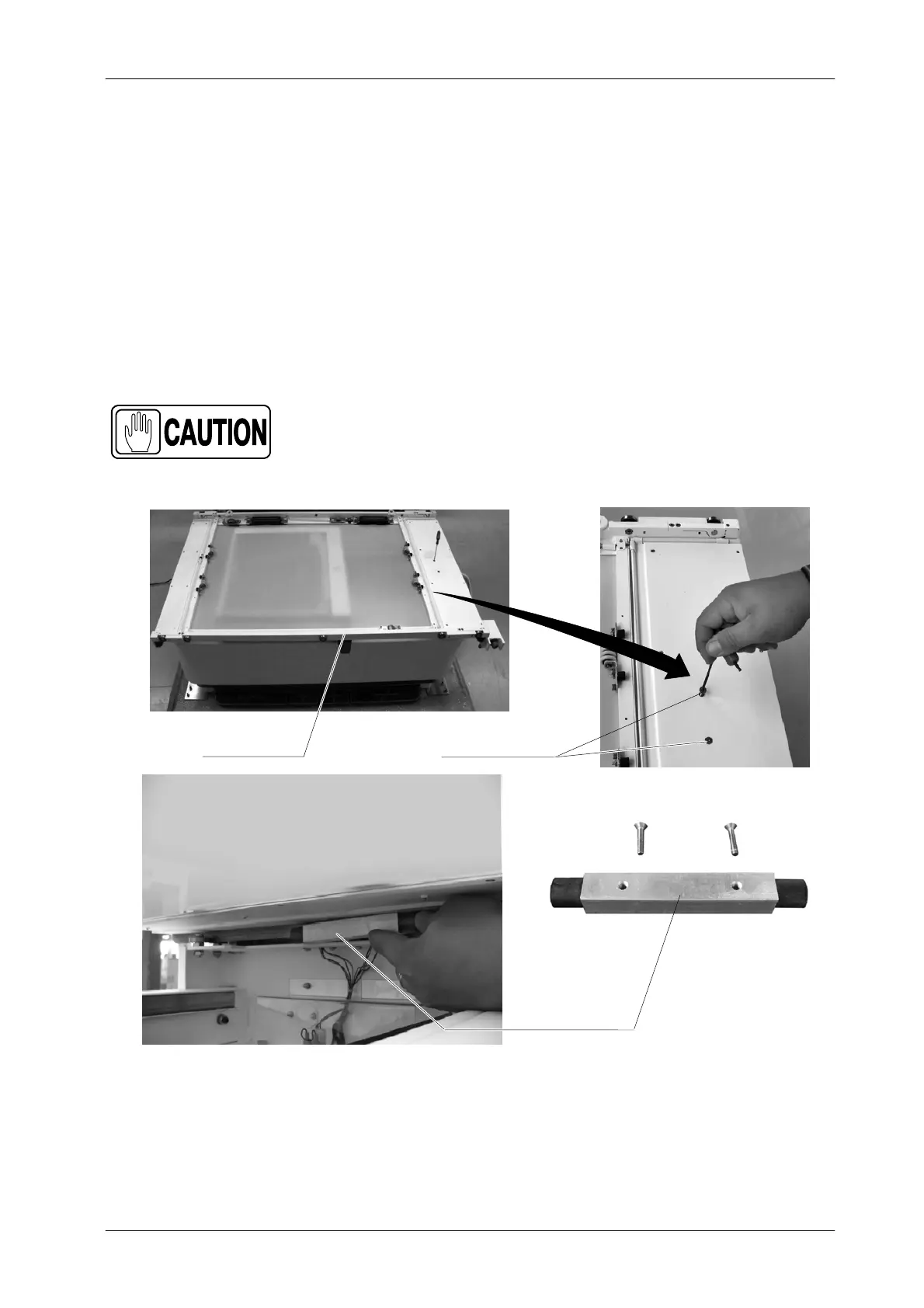

1. Remove the two screws that attach the Frame Stop with one hand while
holding the Frame Stop under the Table-Top Frame with the other hand.
Keep the Frame Stop from falling to prevent any damage
inside the table.
TABLE-TOP FRAME
FRAME STOP SCREWS
FRAME STOP
Note .
