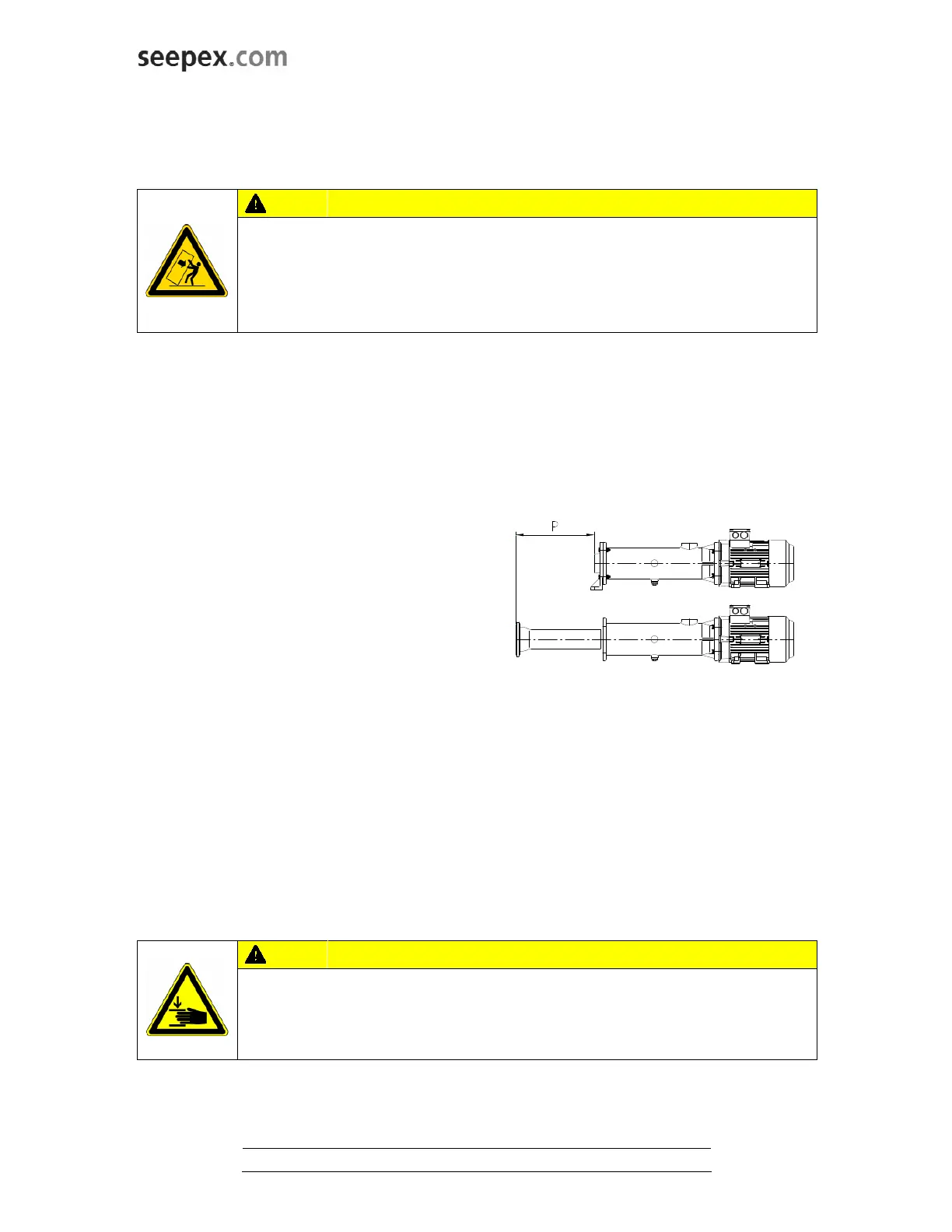

5.1 Mounting tools/lifting gear
C
AUTION
Pump falling over
Slight injury or damage to property may result.
! Adhere to the lifting tool’s starting point.
! Pay attention to the dimensions, weight and centre of gravity of the pump
! Use suitable mounting tools/lifting gear.
5.2 Required space
The required space should be determined by considering the following factors:
• Dimensions and weight.
• Requisite transport and lifting equipment.
• Pipe routing – dismantling (stator construction dimensions).
5.3 Stator construction dimensions (P)
• Refer to the dimensional drawing.
5.4 Erection of the complete mounted pump
! Erect in accordance with technical data (Chapter 3.0).
! Heed dimensional drawing.
Tension-free mounting of the pump
! Balance unevenness with suitable supports.
• Applies to mounting on foundations/load-bearing elements.
• Total areas of all pump bearing areas are resting on the surface.
Correct position of the drives
• All drives are set up ready for operation and mounted.
• Correct slipping of the drive during transport/installation of the pump by adjusting/fixing
the drive motor.
CAUTION
Safety protection equipment.
Slight injury or damage to property may result.
! Connect safety protection equipment and activate.
