5.7.7 Outside dimension of CTs
The structural forms of the CTs depend on the switchboard construction, i.e. they are in compliance with specific
customer needs. We have various standard designs. For further information please contact your sales partner.
Note
The current transformers shown below are dimensioned for nominal voltages
<1000 V. This means, for application in MV-switchboards <36 kV these current
transformers may only be used with insulated primary conductors for example
cables with appropriate insulation resistance against earth. These current trans-
formers are not allowed to be used for non-insulated primary conductors
> 1000 V against earth.
Type: WIC1-WxAS1
The diameter A of the CT whole is 45 mm for type WIC1W1AS1
The diameter A of the CT whole is 50 mm for the types WIC1WE2AS1 and WIC1W2AS1 to WIC1W5AS1

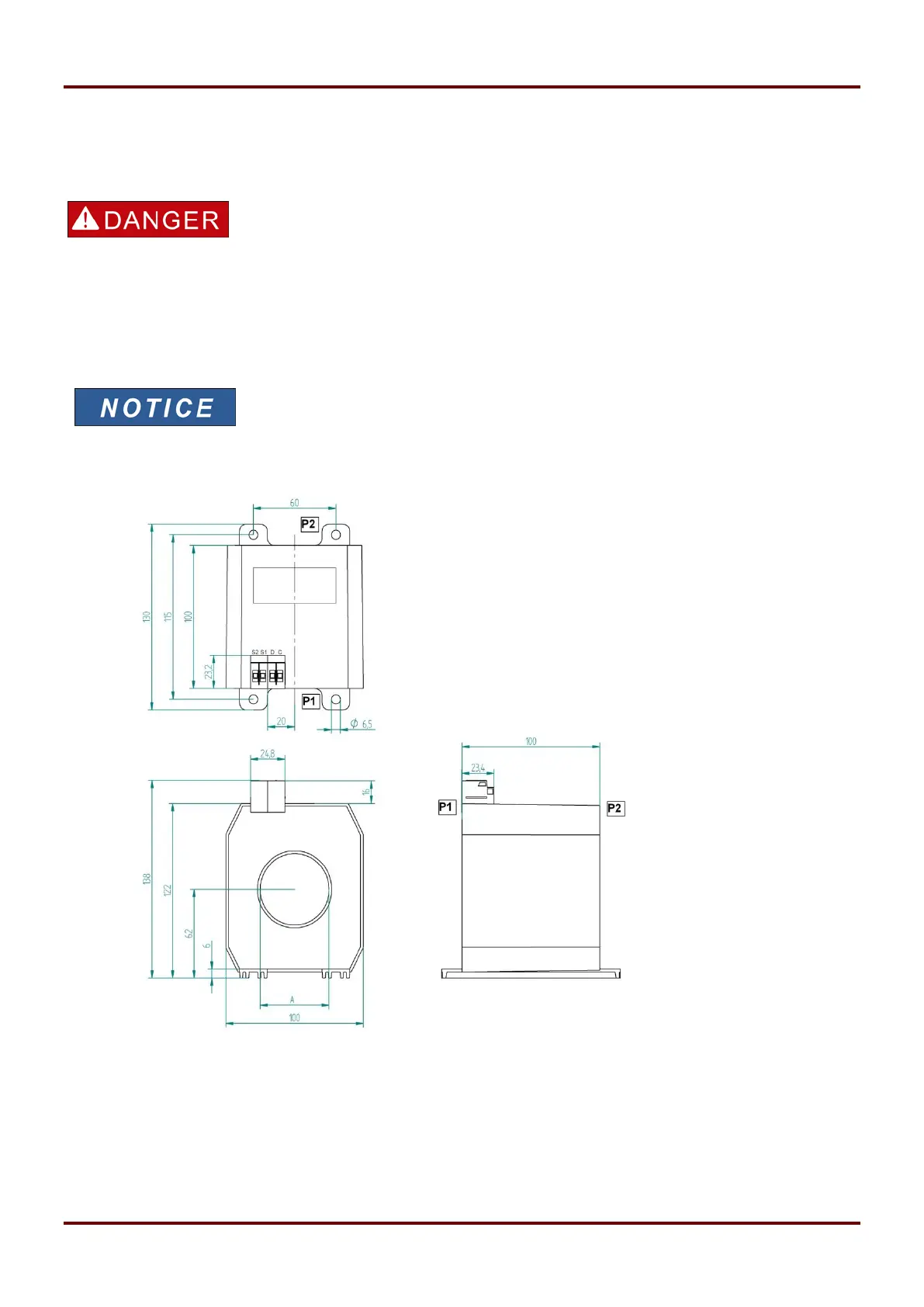

Figure 5.3: Type WIC1-W2AS1 – WIC1-W5AS1 as panel mounting
