52
www.sauservice.com
9-1 SWITCH UNIT AND COIN METER
Never touch places other than those specified. Touching places not specified can cause
electric shock and short circuit accidents.
● Adjust the sound to the optimum volume, taking into consideration the
environmental requirements of the installation location.
● Removing the Coin Meter circuitry renders the game inoperable.

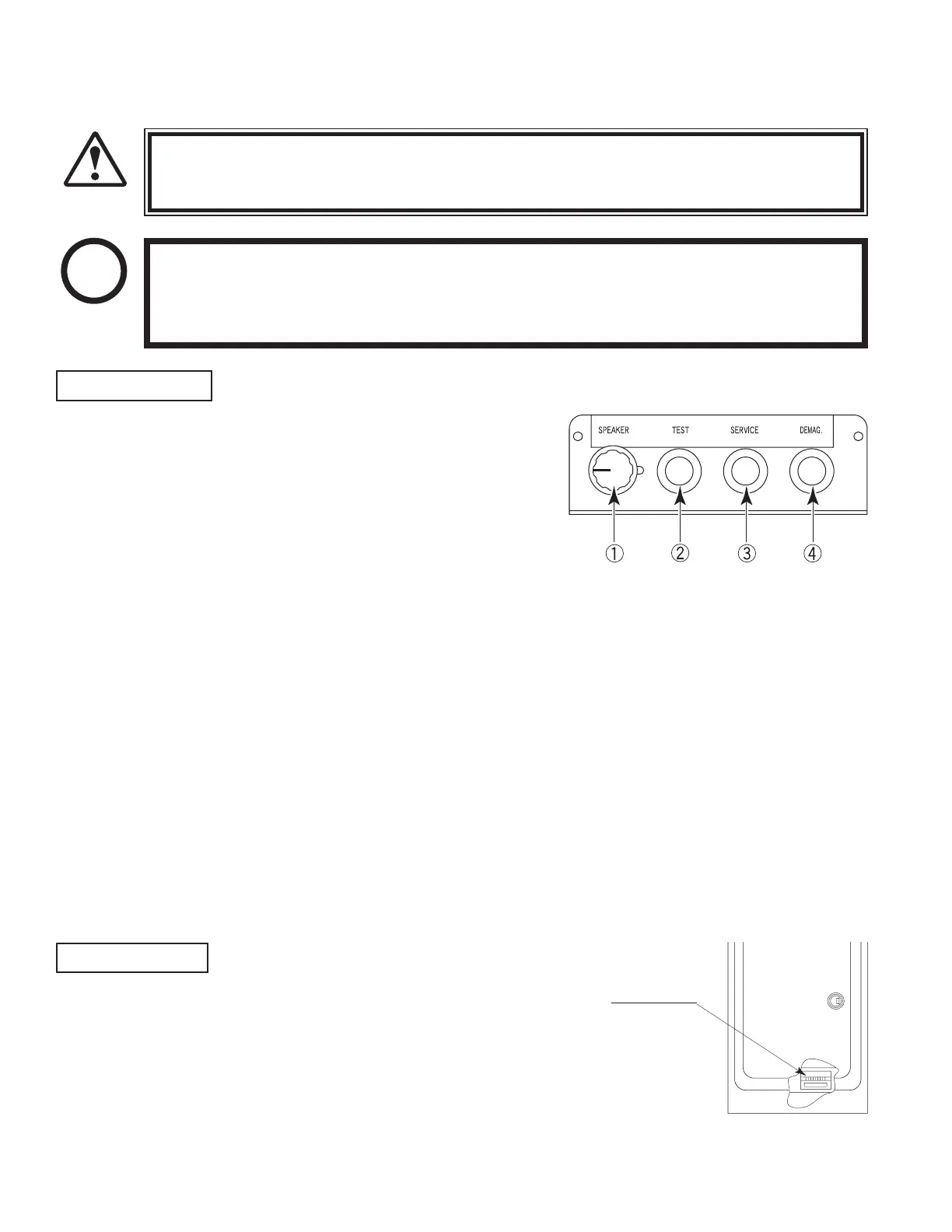

FIG. 9. 1 a SWITCH UNIT
Open the coin chute door, and the switch unit shown will
appear.
The functioning of each SW is as follows:
FIG. 9. 1 b
SWITCH UNIT
● SOUND VOLUME: Adjusts sound volume for all of the machines' Speakers.
(SPEAKER)
● TEST BUTTON: For the handling of the test button, refer to the following pages.
(TEST)
● SERVICE BUTTON: Gives credits without registering on the coin meter.
(SER
VICE)
● DEMAGNETIZER SWITCH: Eliminates the on-screen color unevenness due to magnetization of
(DEMAG.) CR
T. First use this SW before performing the monitor's color adjustment.
Open the Cashbox Door by using the key to have the Coin Meter
appear underneath the Cashbox.
COIN METER
COIN METER
CAUTION!
STOP
IMPORTANT!
To Next Page
