SECURING IN PLACE
2
Make sure that all the adjusters are resting on the fl oor. The cabinet may move and cause an accident if the adjusters are not laid out
properly.
Leave at least 8” of space behind the projector for air exchange. The air vent is on the back of the machine. This air vent must never be
blocked by anything. If it is blocked heat may build up creating the risk of fi re. It may also speed up damage and deterioration of parts.
The cabinet is equipped with 8 casters (4 for DLP Base and 4 for Cabinet) and 6 adjusters (4 for DLP Base and 2 for Cabinet).
After deciding on a location, bring the adjusters into direct contact with the ground and adjust the cabinet so that it is completely level. If the fl oor is level, the
machine should be level with the casters about 5 millimeters from the fl oor.
1) Move the cabinet to the desired location. Make sure there is space in the back for air to fl ow.
2) Bring the adjusters into direct contact with the fl oor. Use a wrench to align the height of the
adjusters until the cabinet is perfectly level.
3) After making the fi nal adjustments, fi x the adjuster height by tightening up the adjuster nuts.
ADJUSTER (6)
CASTER (8)

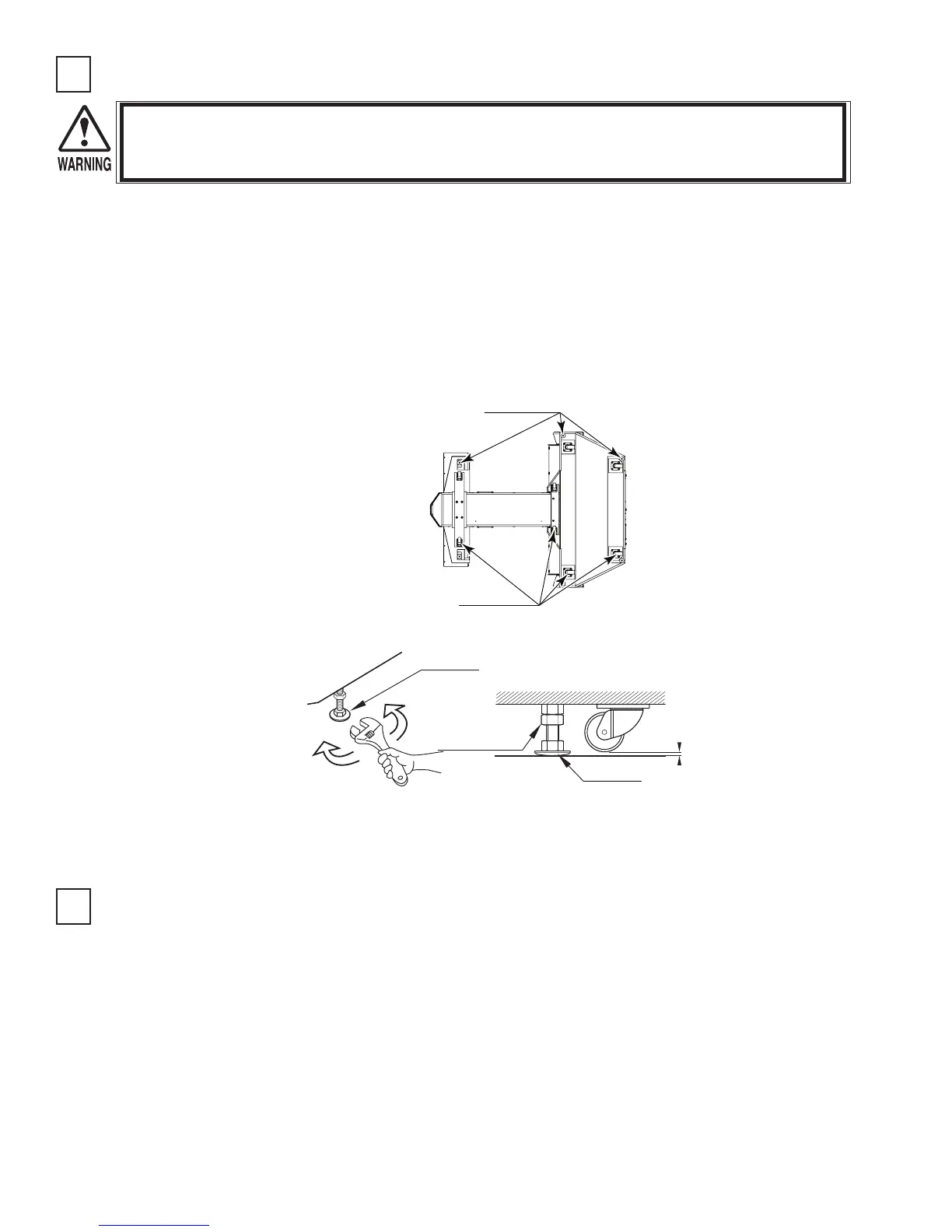

FIG. 6.4a Bottom View
FIG. 6.4b Aligning the adjusters
ADJUSTER
CASTER
Approx. 5mm
ADJUSTER
Fasten the nuts in
an upward direction.
POWERING ON
3
Turn the main switch on the AC unit ON to supply power.
As soon as the power is supplied the fl uorescent lamps inside the billboard and the cold-cathode tubes inside the lighting unit will come on. A few seconds
later the LINDBERGH start-up screen will be displayed and then the Advertisement Mode (Attract Mode) will start, which displays a demo of the game
and score rankings. It takes approximately 3 minutes to reach the Attract Mode. During Attract Mode sound will be emitted from the left and right speakers
beneath the projector. However if sound during Attract Mode is turned off in TEST Mode, no sound will be emitted. Even if the product’s power is turned off
the number of credits played, ranking data, game diffi culty and other settings and bookkeeping data will all be saved. The number of incomplete credits (coins
inserted that did not equal a credit) and the bonus adder count data will not be saved.
