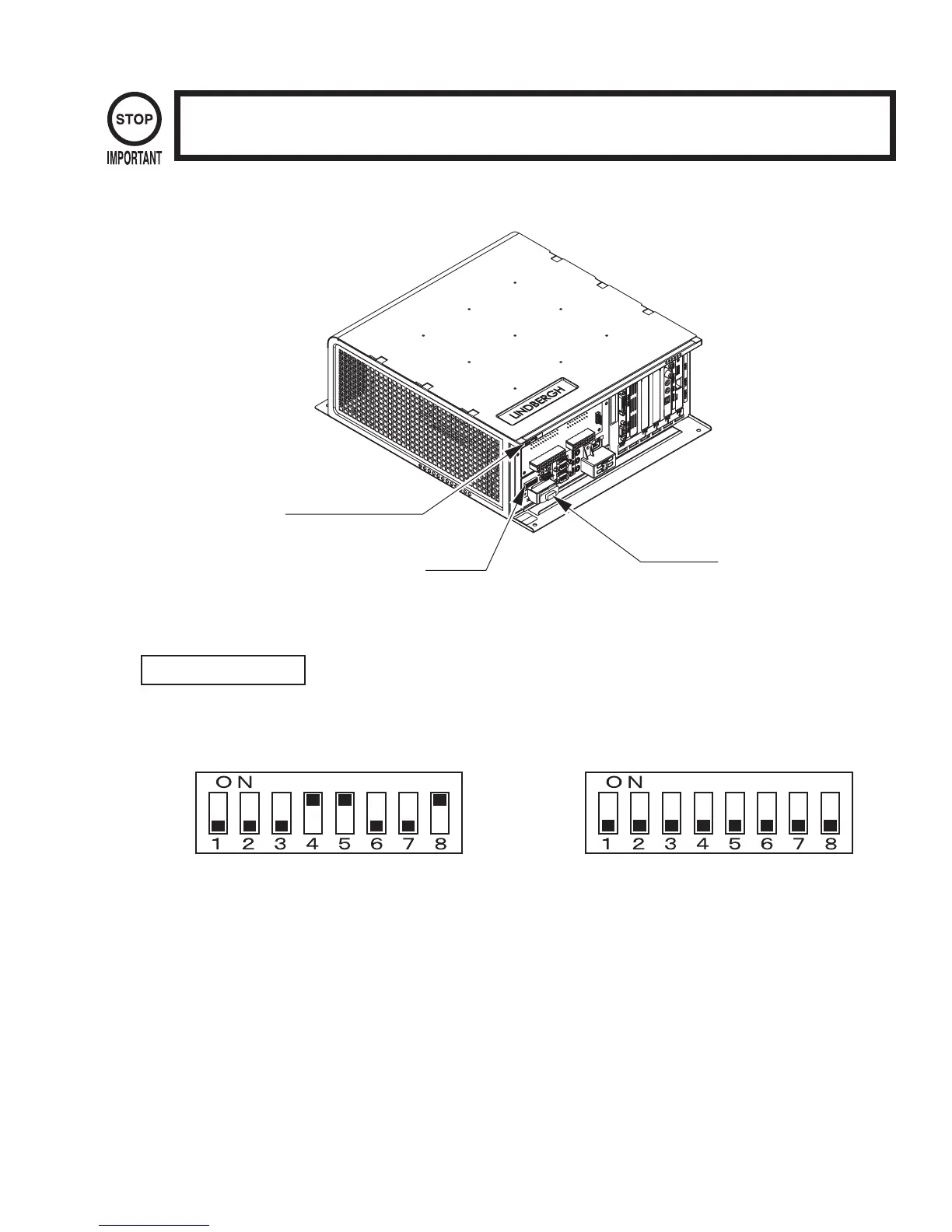

15-2 COMPOSITION OF THE GAME BOARD
The game board becomes the game board for this product once the key chip is inserted.
The DIP SW (dip switches) on the board must be set as specifi ed below. If set incorrectly for this product, an error will be displayed and
the game will not run.
ASSY CASE LBG L 1GB HDF EXP (844-0002D-02)
Board number sticket
DIP SW
KEY CHIP
FIG. 15.2a
DIP SW Setting
Use this product with the DIP SW settings shown in the figure below.
FIG. 15.2b
DX 52" / 62" STD (UR) 29"
47
