Sega The House Of The Dead 4 29"STD User Manual

U NUT (2)
LED BOARD
838-13145R02
PHOTO 14.1 e

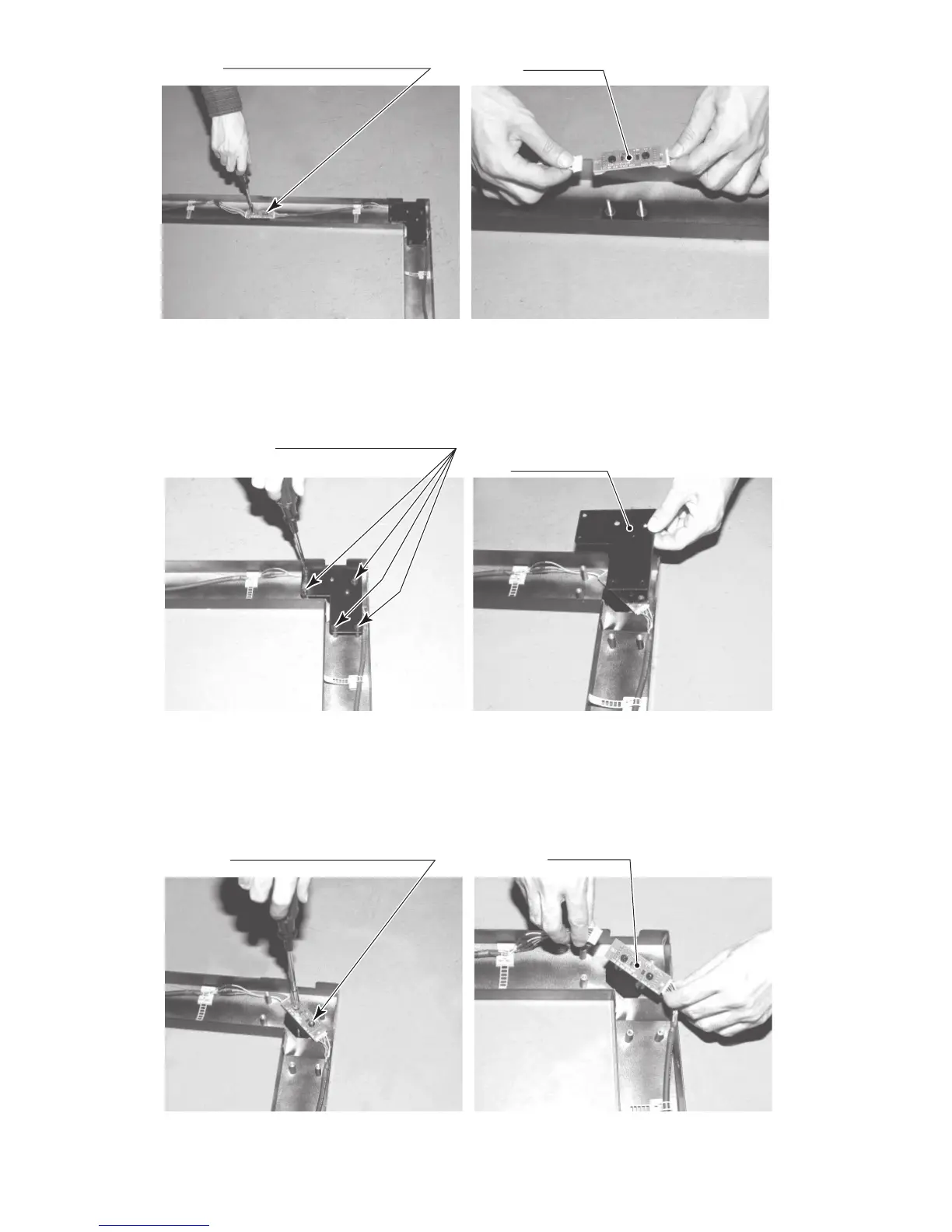

5) If the problematic LED board is in the corner of the mask remove the 5 screws and remove the joint bracket. The joint bracket has the same parts are the
boards along the straight sections of the mask, and there are 2 types.
SCREW (5), black
JOINT BRACKET
PHOTO 14.1 f
6) Remove the two U nuts, disconnect both connectors and remove and replace the LED board. Be carefully not to lose the fl at metal washers and plastic
washers safe, and pay attention to the facing/direction of the LED board when inserting it.
U NUT (2)
LED BOARD
8
3
8
-
1
3
1
4
5
R
0
2
PHOTO 14.1 g
42
