Seko KOMPACT AMC 200 - Introduction; Pump Head Materials; Technical Specifications

EM00136401 rev.1.0 EN
1
INSTALLATION AND START-UP MANUALFOR KOMPACT AMC DOSING
PUMP
Below are the technical and pump performance data:
PVDF-T
!
Model
Pressure
Flow rate
cc /stroke
Connections
Stroke / min
(mm)
bar
l/h
Int / Ext
200
8
100% = 5
0.52
4 / 6
100% = 160
20% = 1
20% = 32
10
100% = 3
0,31
100% = 160
20% = 0,6
20% = 32
INTRODUCTION
The pump is composed of a part that houses the control electronics and the magnet and a hydraulic side always in contact with
the liquid to be dosed.
Check the rating plate of the main features of your pump

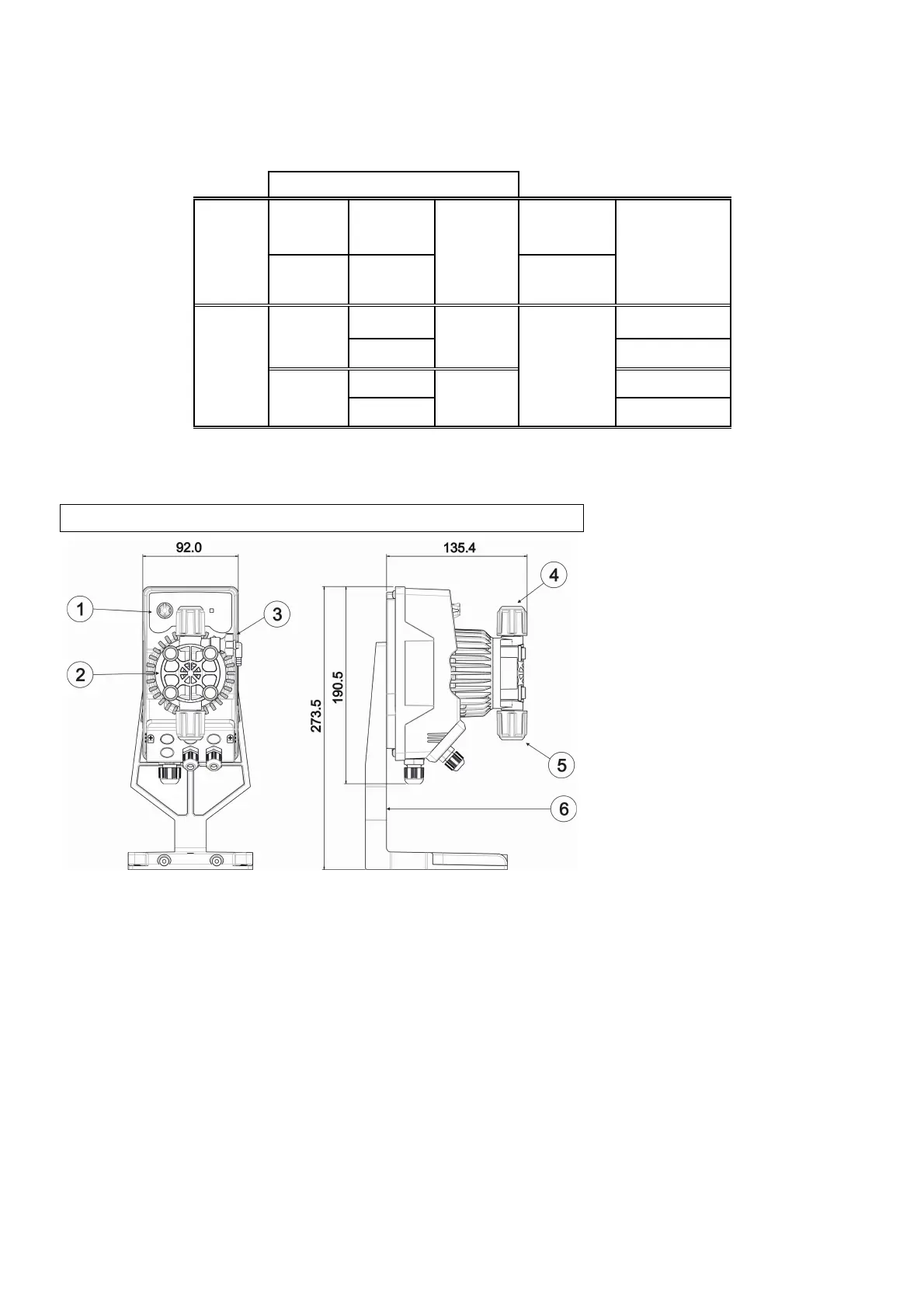

1. Adjustments area
2. Dosing head
3. Priming valve
4. Delivery connector
5. Suction connector
6. Base fixing bracket (optional)
We recommend checking the chemical compatibility between the product and the materials in contact.
PUMP HEAD MATERIALS
• Pump body: PVDF-T
• Valves: PVDF-T
• Balls: Ceramic
• Diaphragm: PTFE
SPECIFICATIONS
• Weight: 1.5 Kg
• Power Supply: 100 - 240 Vac (50-60 Hz)
• Consumption: 13W @ 100 Vac – 19W @ 240 Vac
• Fuse: 2A 250V T 5x20
• Protection rating: IP65
• Level control input: Dry contact (on-off)
• Pulse input: Dry contact (on-off) maximum frequency 80Hz
