KOMPACT AMC – Control Panel
CONSTANT MODE (switch in position C)
The pump dispenses the percentage selected manually with a potentiometer.
Steady green LED switches off with every stroke that the pump runs.
Flashing Green led with the potentiometer to 0.
PROPORTIONAL MODE 1:N (switch in position P)
For every external pulse received (water-meter pulse sender), the pump makes “n” strokes, as regulation scale of
the potentiometer (1=10% - 10=100%). At the first signal received, the pump makes “n” strokes at maximum speed,
and then automatically distributes the “n” strokes, measuring the time between two successive pulses, for a
maximum of 60 seconds, after which period the pump once again doses at maximum speed, resetting the time
count. The pump also has a memory alarm, which is triggered if it receives other external signals (water-meter
pulse sender) during the dosage of the “n” strokes.
Below are some examples of operation:
Potentiometer [%]
N stroke / Pulses
100
10
50
5
10
1
Steady orange LED switches off with every stroke that the pump runs.
Flashing orange LED with the potentiometer at 0.
ALARMS
Display
Cause
Interruption
Steady red LED switches on.
End level alarm.
Restore liquid level.

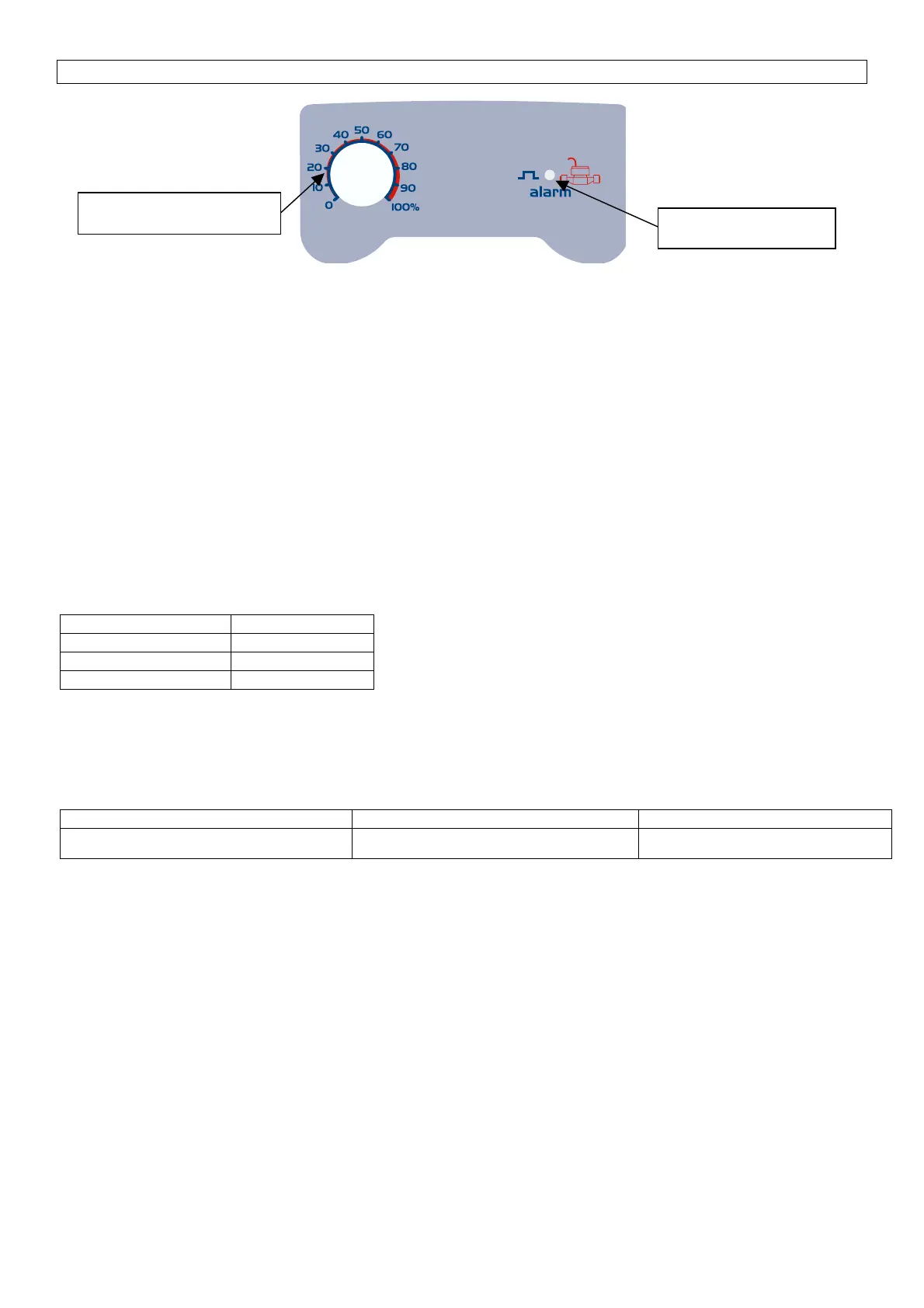

LED for dosing indication
and level probe alarm
signal
Potentiometer for% flow rate
regulation
