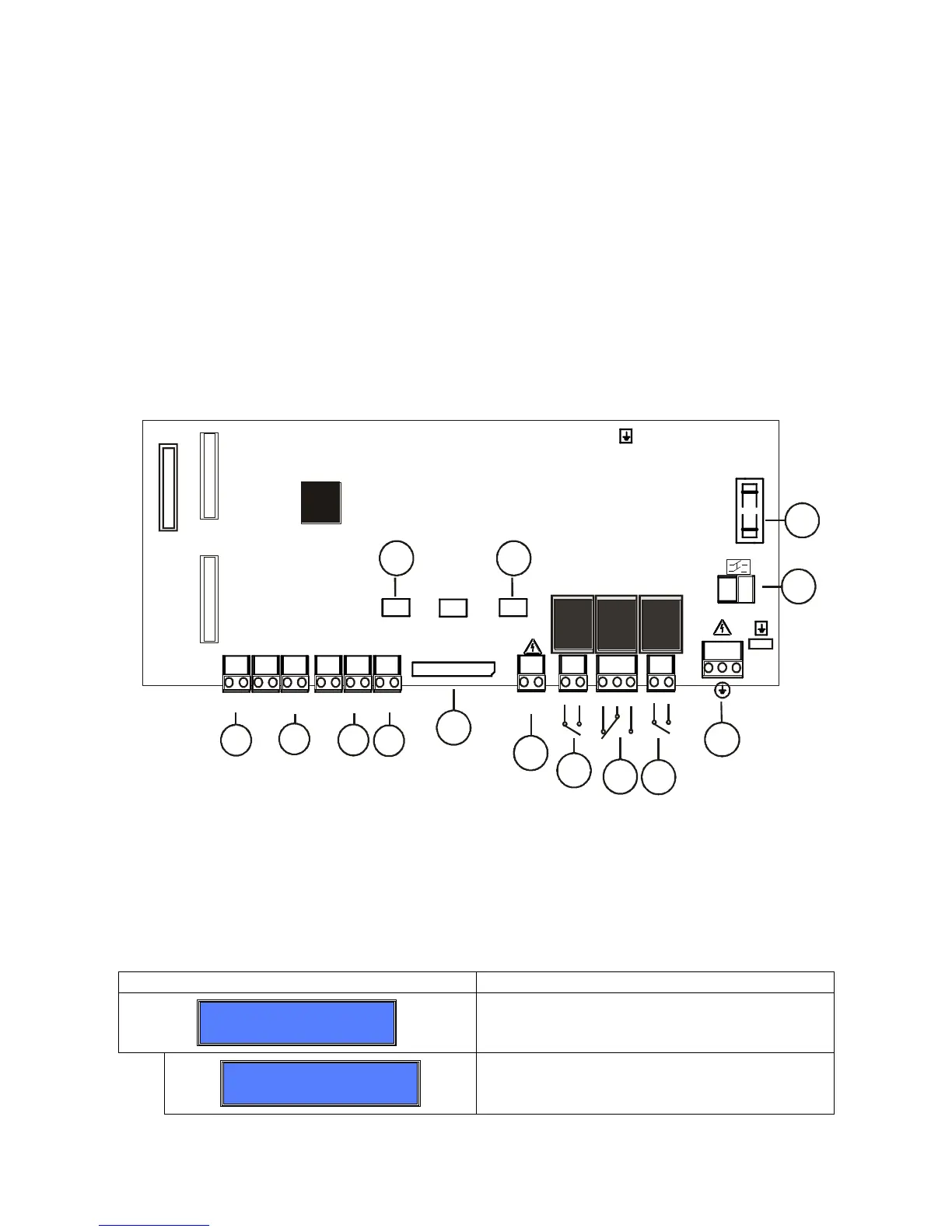

6. DESCRIPTION OF THE CIRCUIT
1) Inlet pH measurement
2) Inlet temperature probe
3) Inlet probe level for product pH
4) Inlet probe level for product H
2
O
2
5) Keyboard input
6) Flow (recirculation pump)
7) Relay for pH product, external pump.
8) Alarm relay
9) Relay for H
2
O
2
product, external pump.
10) Power supply input
11) Switch
12) Fuse
13) Power supply for pH pump
14) Power supply for H
2
O
2
pump
7. CALIBRATION MENU
7.1 Calibration
Before proceeding, the calibration must be enabled. Scroll down the menu
AdvancedCal, the display will show:
Exit the menu and return to the normal system status.
Calibration Menu Display
Settings
Advanced
Cal Off
Press ENTER to access the menu.
Advanced
Cal Full
Press ENTER and the + and – keys to
modify the calibration. Select Full and
confirm with ENTER.
Al arm
RL pH
Input
Fl ow
F
N
Net
Fuse
µChip
Rel ay
Rel ay Rel ay
1
5
6
7
8
9
10
12
14
Lev
pH
Temp
Probe
Input
pH
2
3
4
11
PumppH
13
- +
Lev
HO
22
RL HO
22
H O Pump
2 2
Not Used
Not
Used
Not
Used
