SEL-2414 Data Sheet Schweitzer Engineering Laboratories, Inc.
6
Current Duration, C57.109-1993. Use through-fault
event data to schedule proactive transformer bank main-
tenance and help justify through-fault mitigation efforts.
Apply the accumulated I
2
t alarm capability of the device
to indicate excess through-fault current over time.
Load Tap Position and Control
Monitoring
The SEL-2414 supports load tap position and control
(LTPC) monitoring by using digital inputs in the
binary-coded decimal (BCD) or binary format. It can
monitor as many as 32 tap positions with one or three
neutral tap positions. Additionally, it monitors the raise
and lower controls to assert alarms for tap position
change failures or unexpected tap positions.
Implement individual tap position statistics monitoring
with the nonvolatile counters and voltage regulation by
using measured voltages, timers, and analog control
variables.
Simplify Your Transformer
Commissioning
The SEL-2414 front panel simplifies commissioning and
troubleshooting:
➤ View field data and calculated values
➤ Diagnose data flow problems in seconds instead of
hours
➤ Dramatically reduce troubleshooting time
➤ Eliminate the need for out-of-service time

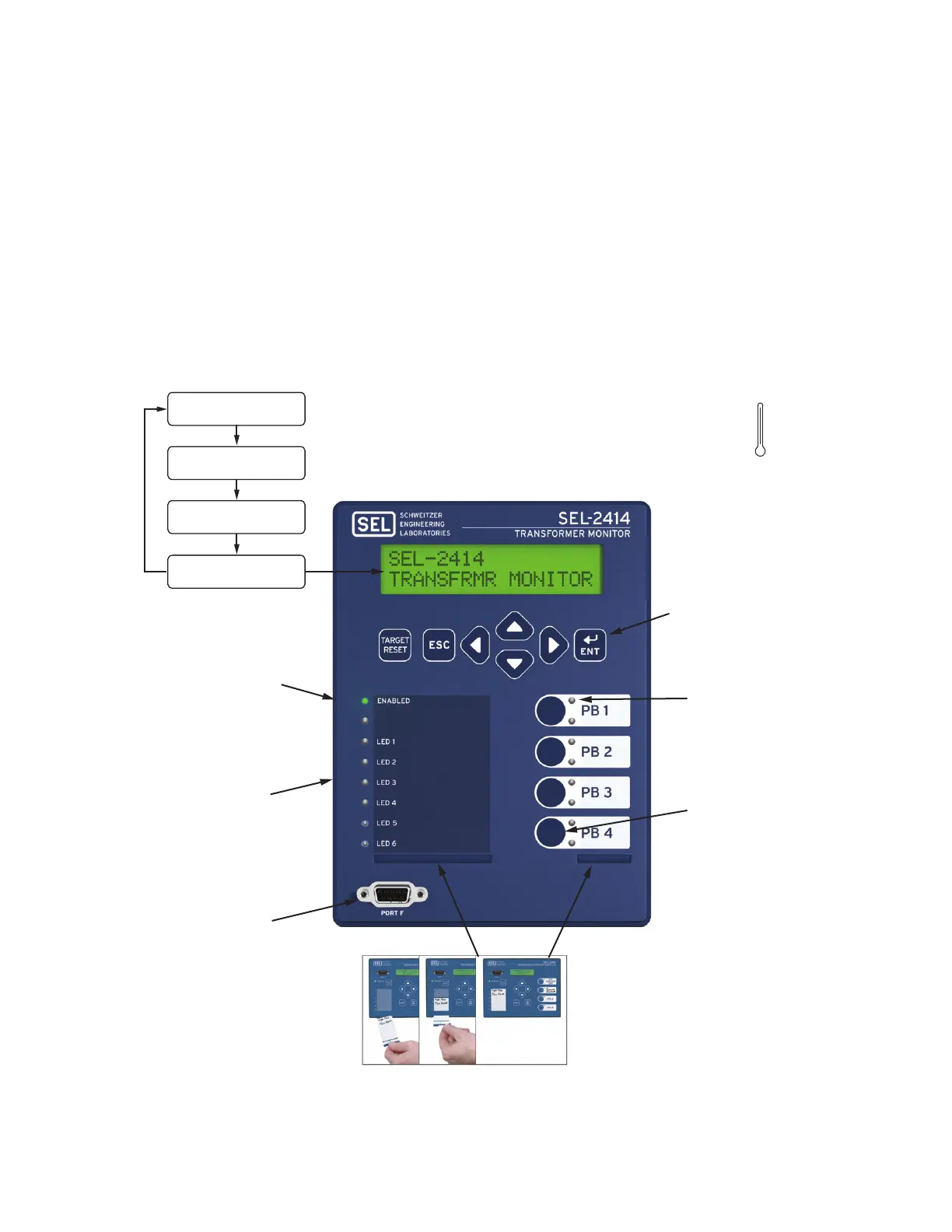

Figure 7 Simplify Your Commissioning
Large
temperature
range for
installing in
outdoor
cabinets
Access device
configuration,
detailed I/O status,
alarms, and
measured values
with easy-to-use
controls for
operator interface
Program 4
pushbuttons to
perform direct
user controls
Program LEDs to
indicate control state
Make your own labels by hand or with
included Microsoft
®
Word template
Configure 7
programmable
LEDs to indicate
I/O activity and
device status
Powered properly and
self-tests are okay
+85°C
—40°C
EIA-232 Port
Ambient Temperature
24.0 deg C
Top Oil Temperature
75.0 deg C
Max Top Oil Temperature
80.1 deg C
LTC Oil Temperature
65.0 deg C
Front-Panel Visualization and Control
Build your own custom displays.
Rotating displays show device measurements and settings
information based on user-configured display points.
