Configuration and Commissioning Software
The included ACSELERATOR QuickSet software program simplifies device configuration in addition to providing
commissioning and analysis support for the SEL-2414.
➤ Access settings creation help online.
➤ Organize settings with the device database manager.
➤ Load and retrieve settings using a simple PC com-
munications link.
➤ Analyze event records with the integrated wave-
form and harmonic analysis tool.
➤ Use the PC interface to remotely retrieve reports
and other system data.
➤ Monitor analog data, device I/O, and logic point
status during commissioning tests.
➤ Remotely operate and monitor using the device
overview as a virtual front panel.

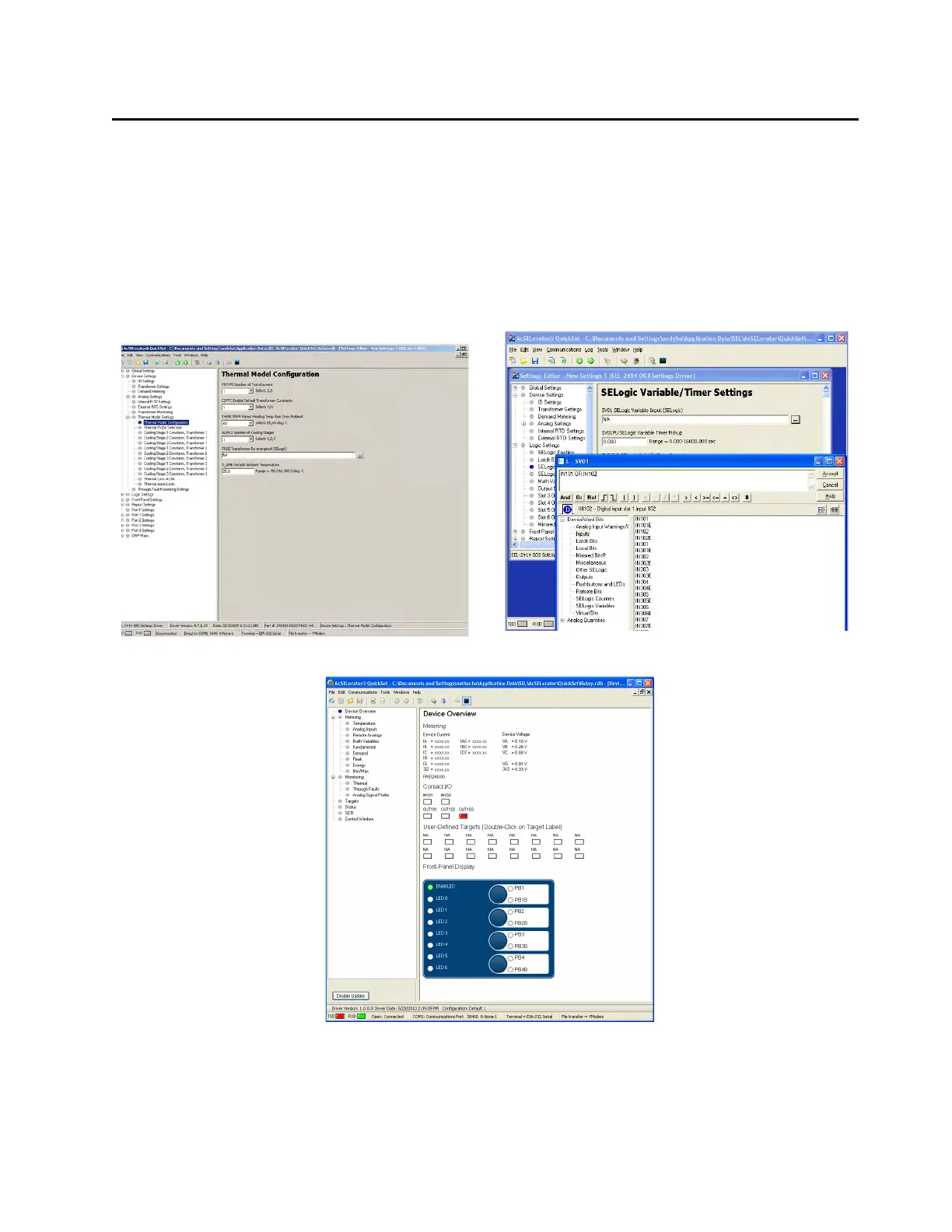

Settings–Develop Settings Offline With an Intelligent Settings
Editor That Only Allows Valid Settings.
Settings–Create SELOGIC Control Equations With a Drag and
Drop Editor and/or Text Editor.
HMI–Device Overview.
