Select Engineered Systems TEC1A Series - User Connections

TEC1A Installer Guide
01/20
Rev B2
Page 7 of 11
Figure 3: TEC1A Ground Lug Connection

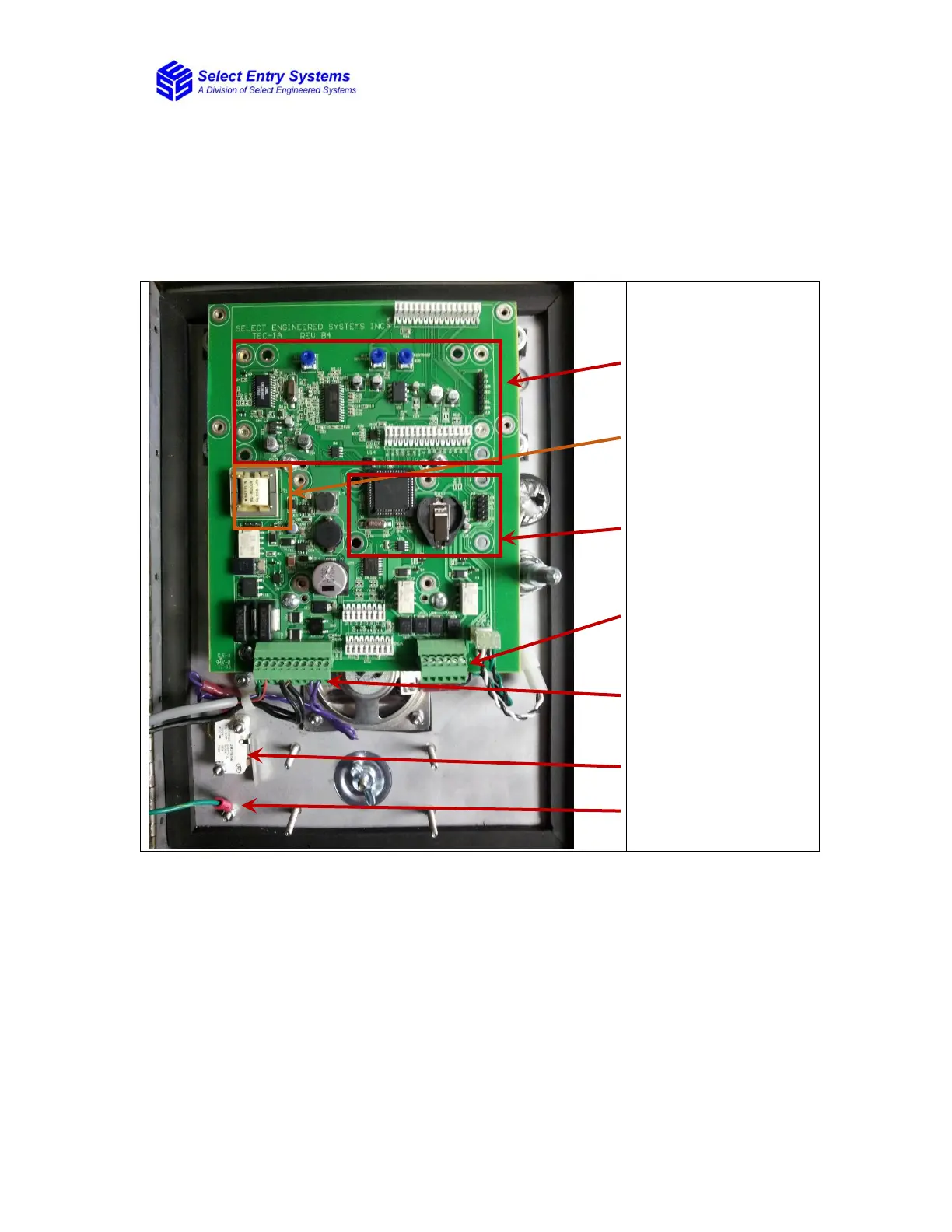

1.4.2 Overall Main Board Layout
See Figure 4 below for an image of the main board.
Comm Board
Mounting Location
(Add-on option)
MUI Board Mounting
Location
(Add-on option)
2-Reader Board
Location
(Add-on option)
User Connection Strip
P1A (Connector Plug
shown)
User Connection Strip
P1 (Connector Plug
shown)
Postal Lock Switch
Door Ground Stud
Figure 4: Inside Door of TEC1A
