1.4.3 User Connections

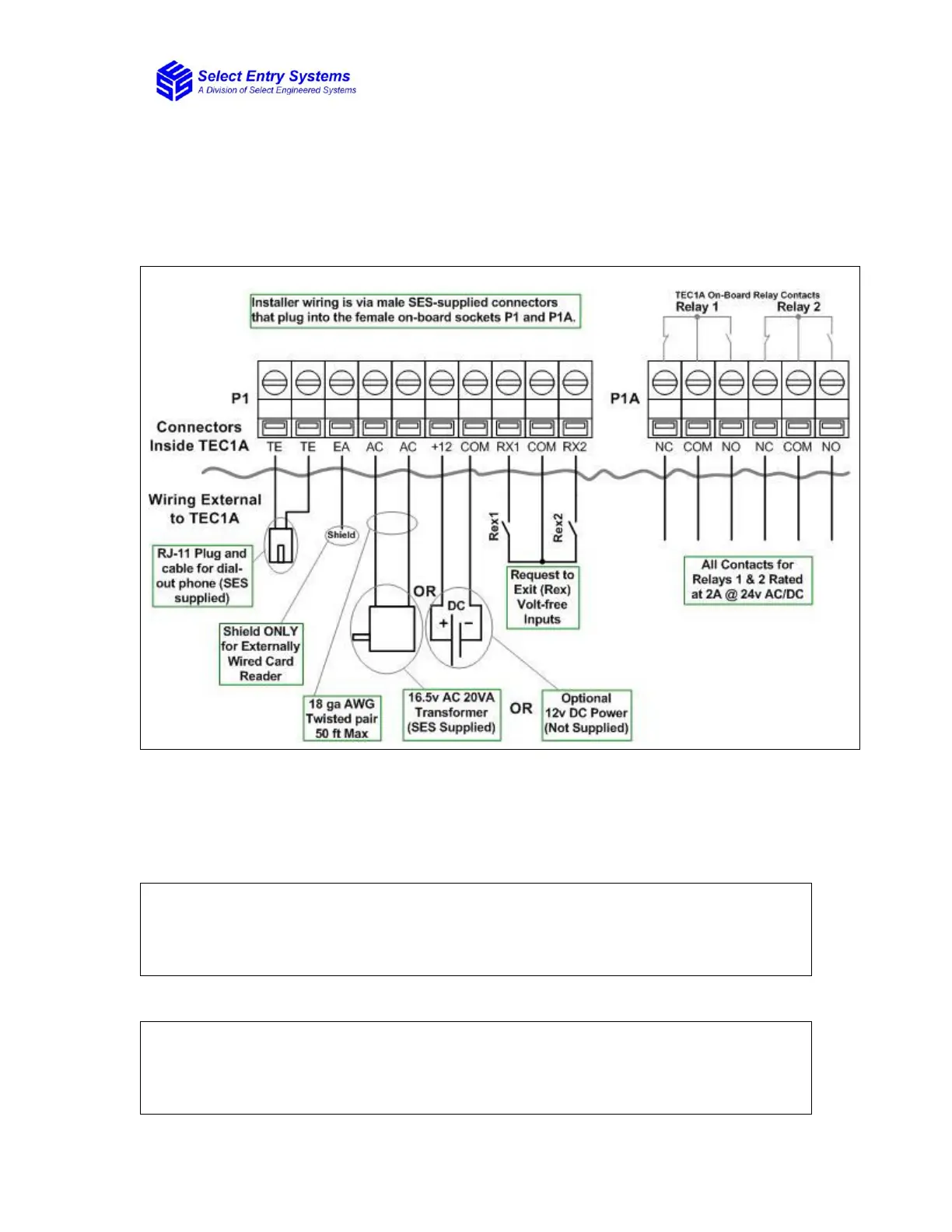

Figure 5 shows the Terminal Strip connections P1 and P1A for user connections, along
with the Door Ground Stud. No other connections are required.
Figure 5: TEC1A User Connections
1.4.3.1 Telephone Connection
Use the RJ-11 supplied with the flying lead to connect the TEC1A to the telephone
network provided.
WARNING – FCC Regulations
Failure to use the RJ-11 supplied may invalidate FCC regulatory compliance.
CAUTION Do Not Connect Other Non-SES Equipment
NO OTHER TELEPHONE DEVICES or NON-SES EQUIPMENT should be attached to this
phone line.
