EXTERNAL SCHEMATIC AND INSTALLATION

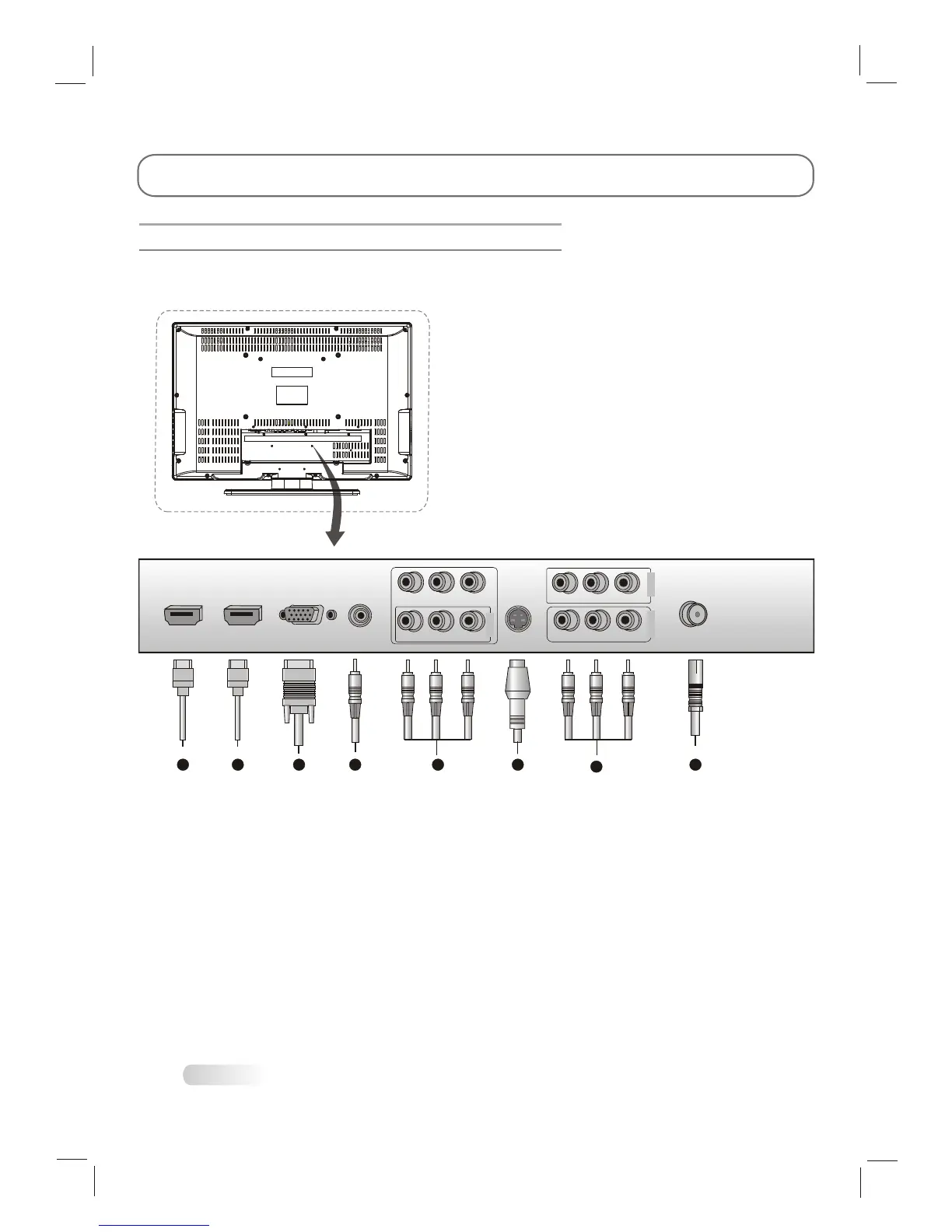

BACK PANEL
Note: The graphics are for representation only.
1. HDMI1/HDMI2: Connect HDMI input signal from signal source such as DVD.
2. VGA: Connect a PC via a VGA cable.
3.VGA AUDIO IN: Connect audio signal from PC.
4. AV1 IN: Connect AUDIO and VIDEO input signal.
Y Pb Pr : Connect RCA cable to connect DVD player or other video device's YPbPr output.
Share the same AUDIO input with AV1.
5. S-VIDEO1 IN: Connect S-VIDEO,Use same AUDIO input as AV input.
6. AV2 IN / AV OUT: Connect AUDIO and VIDEO input or outpu signal.
7. ANTENNA IN: Connect a coaxial cable to receive signal from the antenna or cable.
