SP PRO Interactive Inverter Charger
Section 5 for LG Chem Rack Mount Modules
1. Do not connect any wires to the pre-charge or battery sense terminals. The battery sense
voltage is read from the LG Chem Rack Mount BMS.
2. Follow the LG Chem Rack Mount instructions to install the LG Rack Mount.

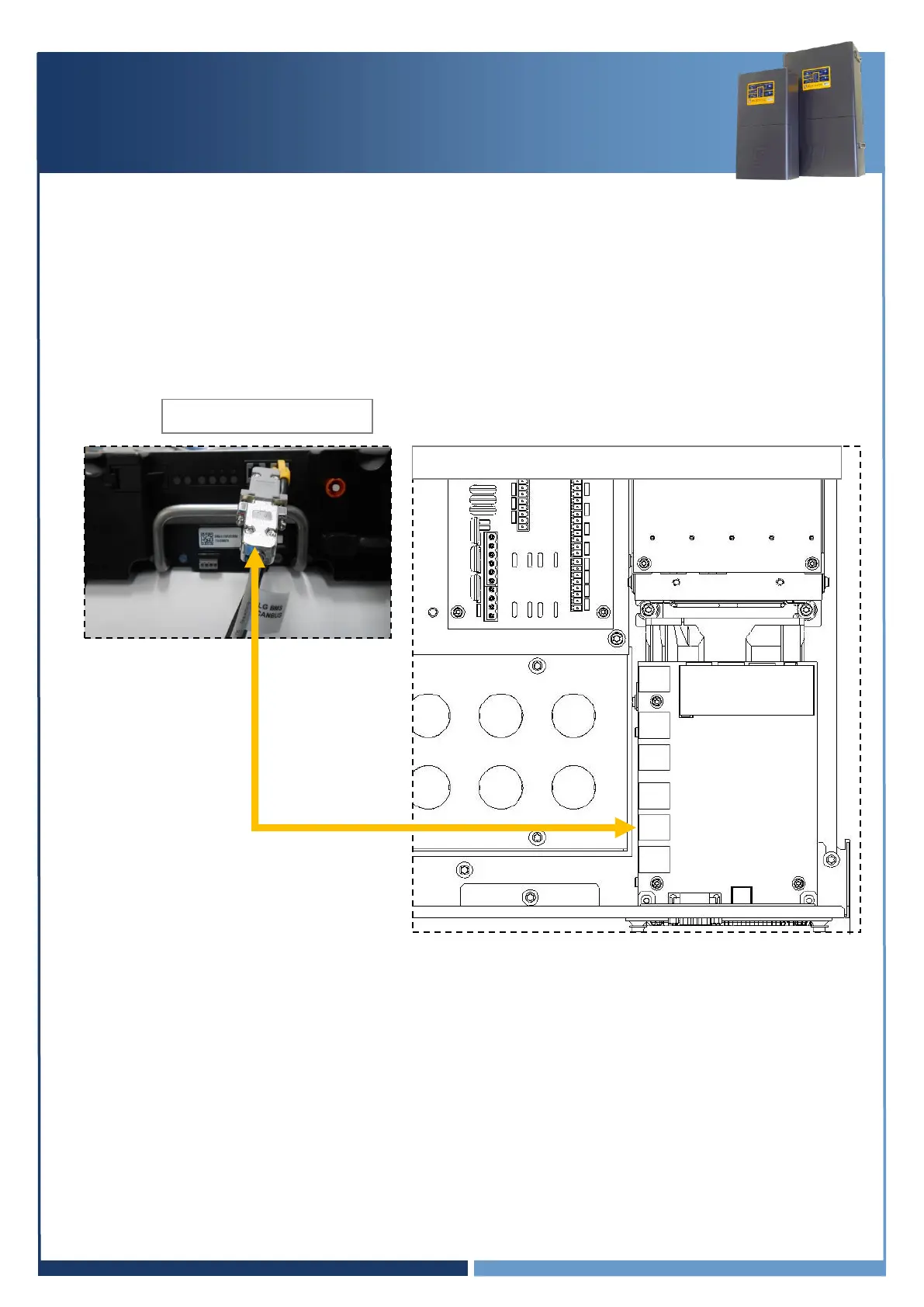

3. Using the applicable installation kit, connect the RJ45 end of the cable to the SP PRO blue or
black comm card “SP PRO CANBUS” and connect the DB9 end to the LG Chem Rack Mount
battery DB9 cable “BMS CANBUS”.
Go to section “Check Communications Card Firmware” page 16
SP PRO Inverter (L1 only in a multiphase system)
