SP PRO Interactive Inverter Charger
Section 6 for Pylontech US2000 modules
1. Leave the battery temperature sensor connected and rolled up inside the SP PRO. This is not
used in a managed battery system.
2. Follow the Pylontech instructions to install the modules.

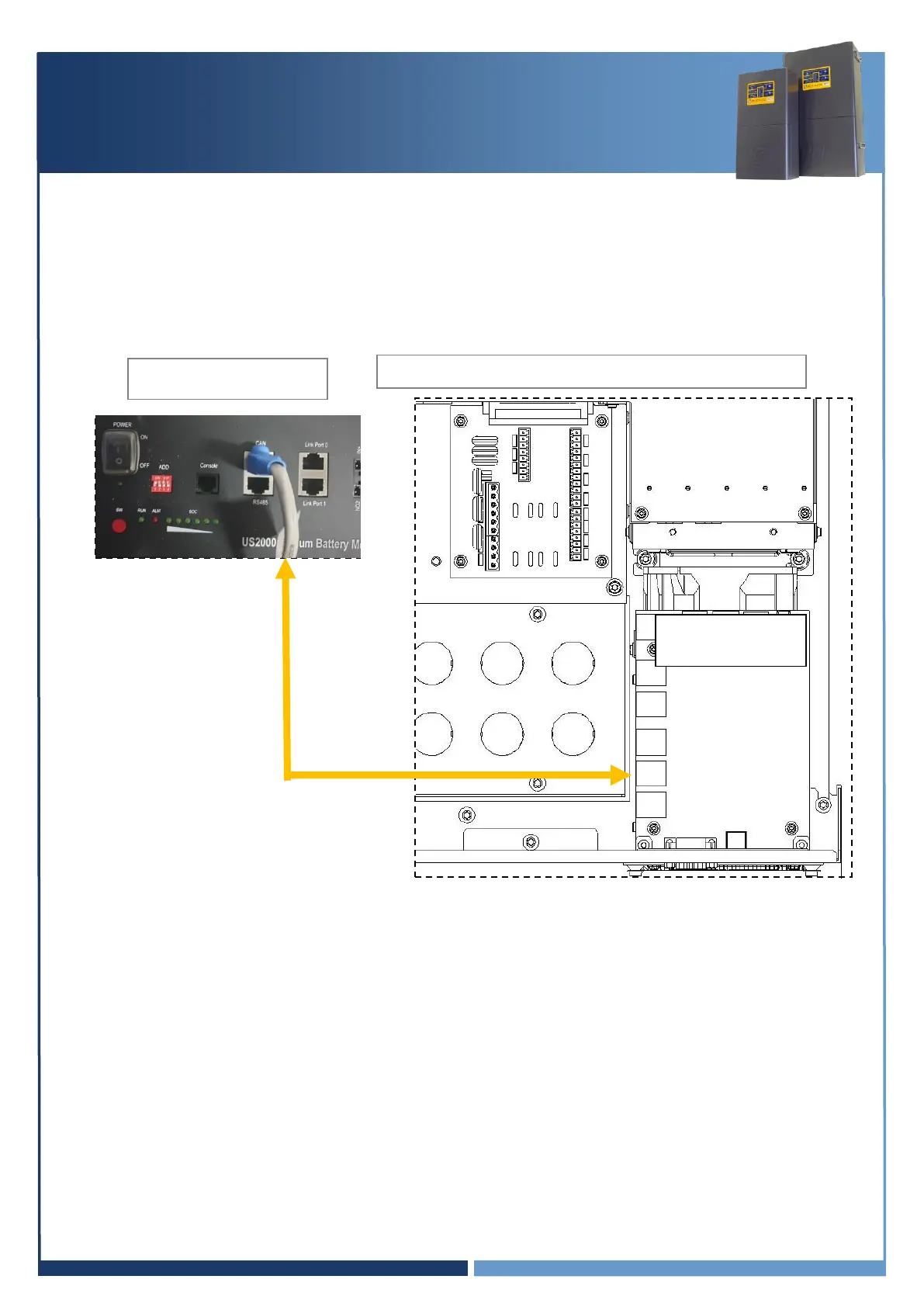

3. Using the applicable installation kit, connect the RJ45 Connector cable from the SP PRO blue or
black comm Card “SP PRO CANBUS” to the Pylontech module “BMS CANBUS”.
Go to section “Check Communications Card Firmware” page 16
blue or black
Comm Card
(Comms Card 2017)
