SELFSAT H10D - Page 15

English
www.self-sat.com
14

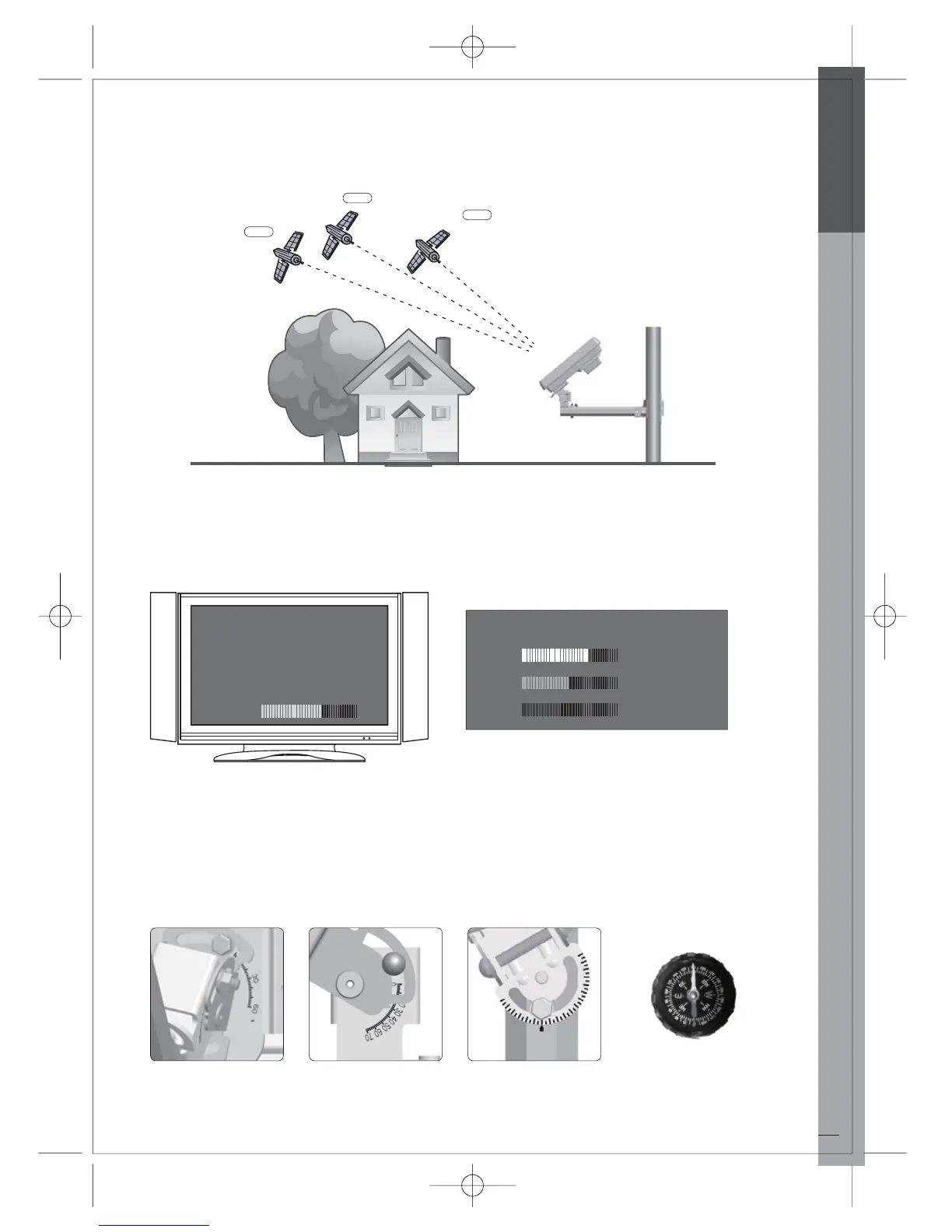

ASTRA 2
< Skew > < Elevation > < Azimuth >
S
N
28,2
o
ASTRA 1 19,2
o
HOTBIRD 13
o
Antenna Pointing Menu
Signal: 0
Satelite : ASTRA 1
Transponder : 23
LNB : ON
Polarisation : Horizontal
Frequency : 12640
Antenna Pointing Menu
Signal:
Signal:
Signal:
90 Good
75 Not Sucient
55 Bad
The signal level and quality is indicated on the TV screen and will uctuate and change colour accord-
ing to the adjustment & movement of the antenna while you are pointing & nding (azimuth, elevation
and Skew angle).
The level indicates the power of the signal and the colour is the signal reception quality from the
chosen satellite.
Once ne tuning is complete, and the signal is at its peak level with a good quality, you can stop
adjusting the antenna.
(Example of pointing & nding the signal)
In order to watch Canal+ through ASTRA1(19.2 East) from the city ‘Brest’ of France, you will see Skew
angle at -12.7, Elevation angle at 30, and Azimuth angle at 149.6 (in reference to the angle table on the
back page of this manual)
SELFSAT-H10D/H21D
