13
ENGLISH

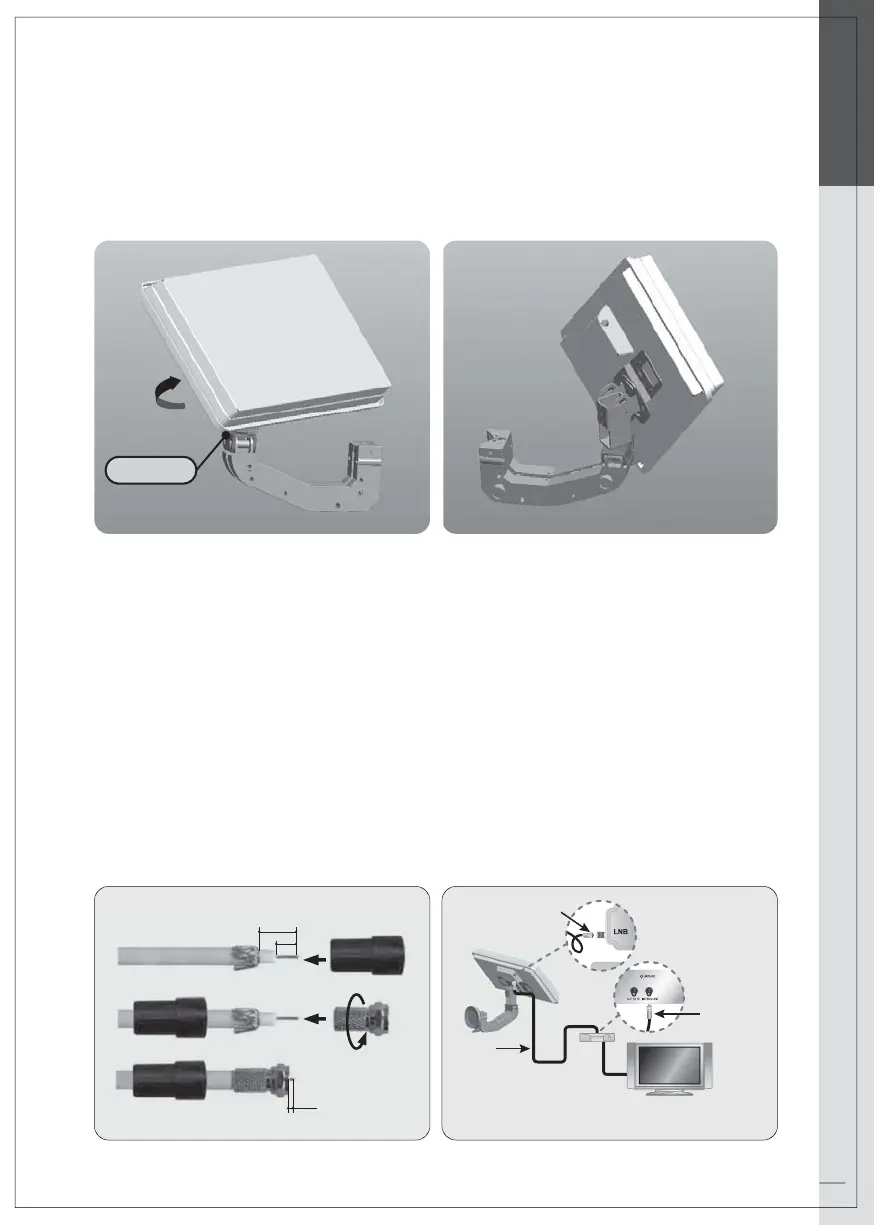

- Find the suitable elevation and tighten the M6 Knob Nut
Adjusting the elevation
M6 x 25mm
Knob nut
A) How to prepare the cable?
It is important that the coaxial cable does not become damaged or kinked
during the installation procedure.
B) How to connect the cable to the antenna and
the set top box?
One side
To Antenna
Other side
To receiver
Cable
15mm
CONNECTOR COVER
F CONNECTOR
8mm
3mm
Step 4 : Connecting the Antenna and the Set top box
Once you have installed the antenna in an open loop space and mounted the way you want it to be the next
step is to connect it all together.
In order to be able to watch your favorite satellite programs, you need to connect your satellite antenna to a
receiver by a cable. The cable between the antenna and the Satellite receiver should not exceed 30m as it will
decrease the quality of the signal. The use of a long or bad quality cable and not isolated jacks can cause a loss
of the signal level, it would be preferable to use an RG6 Coaxial cable (HF 17VATC or 19VATC cable), in order
to minimize a signal loss.
