Note
please take reference to the table of the Azimuth angles specied in the back pages of this manual.
Note

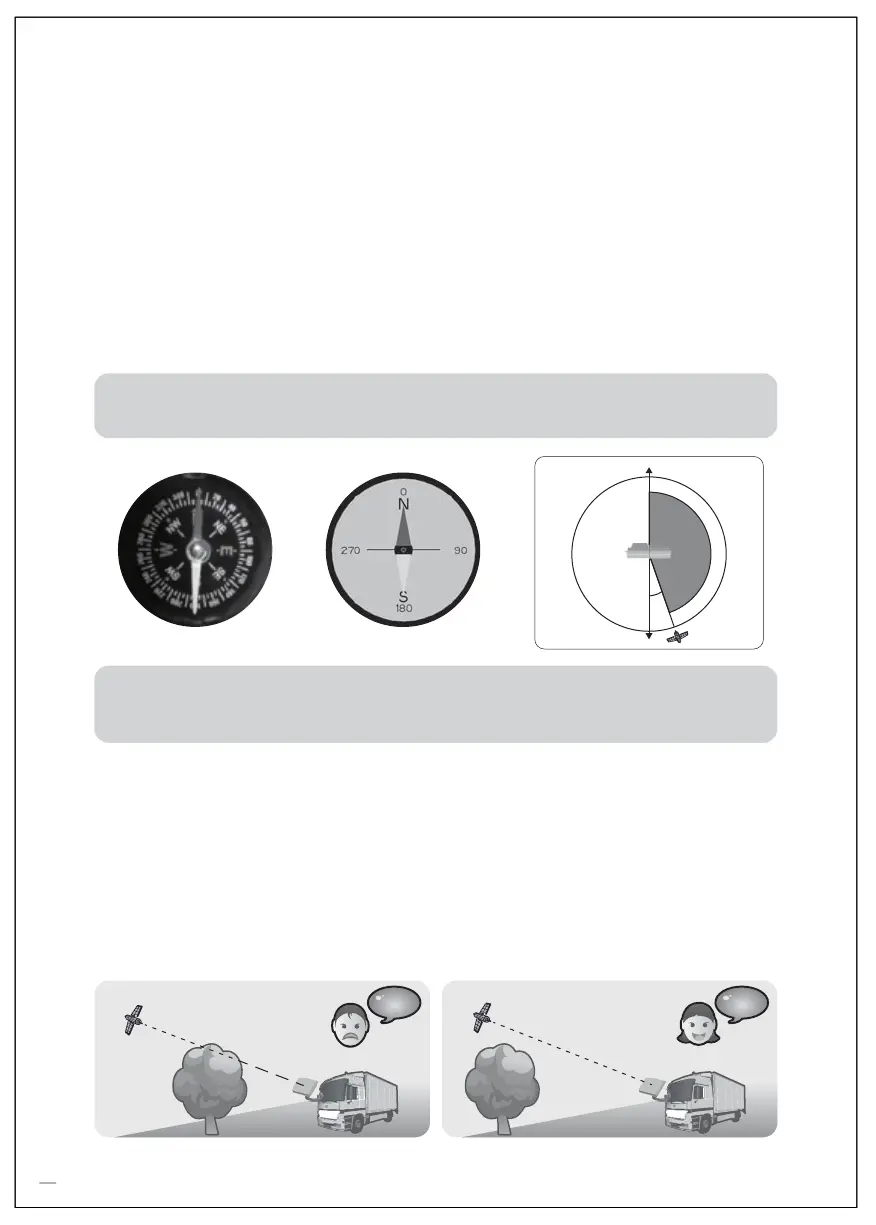

< Compass > < Azimuth Angle >
To ensure an accurate compass reading, stay away from large metal objects, specically electrical cables
and then make multiple readings.
Bad Quality Singnal Reception
BAD!BAD!
Good Quality Singnal Reception
GOOD!GOOD!
Azimuth
Angle
S 180
o
N 0
o
Satellite position
How to Install?
By following the instructions step by step, you can proceed easily to install
SELFSAT-H30D Travel Kit by yourself or with the help of a professional antenna installer.
Step 1: Where to Install?
In order to receive a signal from the Satellite, SELFSAT-H30D Travel Kit is to be installed in an open loop space
(outside the house or the apartment), in the direction of the satellite towards the equator, for which, you will
need a compass to exactly orient SELFSAT-H30D Travel Kit toward the satellite.
Make sure that there are no obstacles in front of SELFSAT-H30D Travel Kit which can decrease the signal reception
quality, such as buildings or trees (you may keep in mind that trees will grow and may block the signal).
In order to be able to x and install your antenna easily, you might choose an easily accessible place without any
potential danger for installation.
Think about the way you might pass your cable in a discreet way from the SELFSAT-H30D Travel Kit to your Set top
Box. The antenna should not be too distant from your satellite receiver; a cable longer than 30 meters may decrease
the quality of the signal.
Before installing your antenna, you check that SELFSAT-H30D Travel Kit box contains all the items listed above
in the ‘Box Content’. In the event of any missing parts, please contact your distributor.
