5
ENGLISH

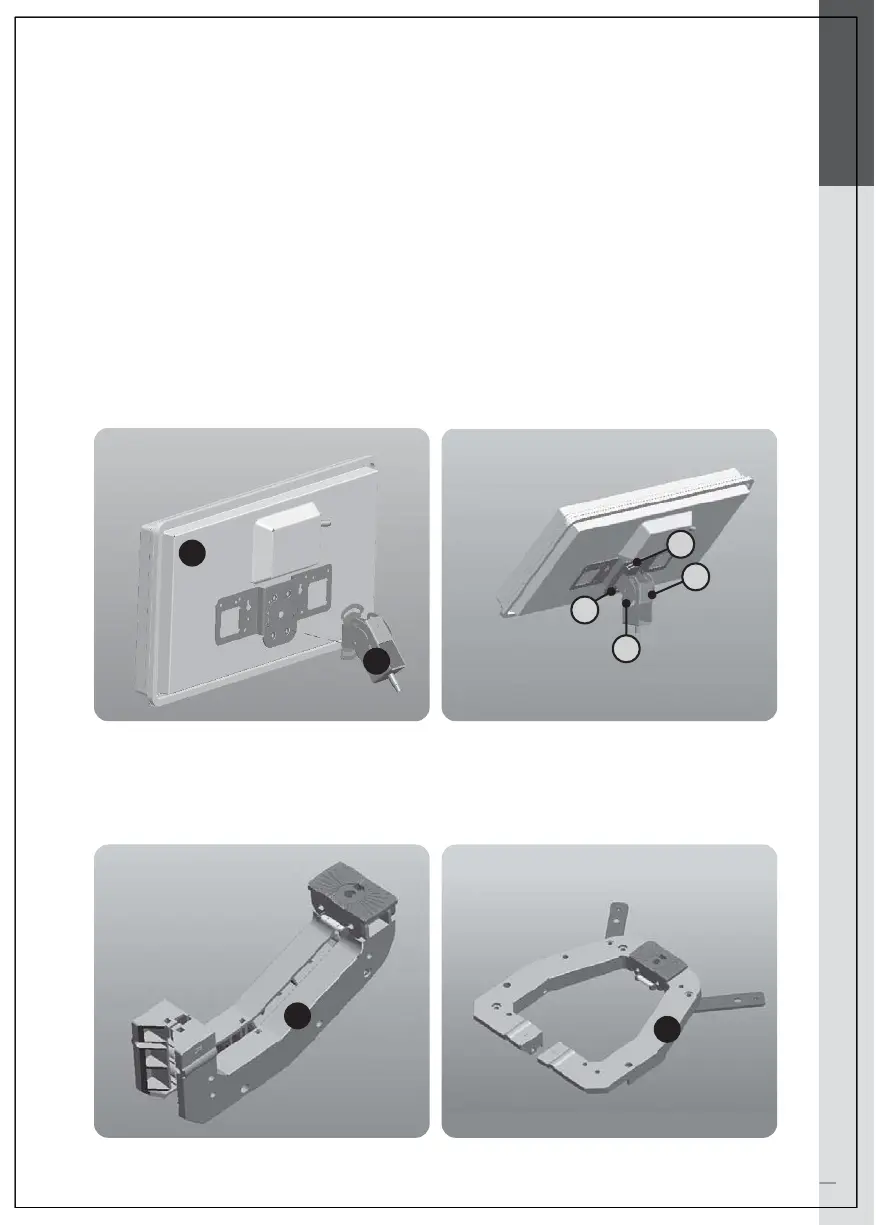

Step 3 : Assembly Instruction
A) Joint Angle Bracket and Antenna Body
Joint Angle Bracket and Antenna Body by screw
1)
S6
S4
S6
S7
A1
B1
B) Assembling the Multi-Functional Base
Open the Multi-Functional Base
- Open the two wings of the Multi-Functional
1)
B2
B2
Step 2: Check Information
In order to install antenna, you need to nd skew, elevation and azimuth angle by referring the table on the
back of the manual. If you can’t nd your location, please refer to the information of the nearest place from
your location. This manual will show you the installation example to receive ASTRA1 satellite in Brest region
of France. The angle information for Brest region is Skew : -19.7, El : 30, Az : 149.6
