9

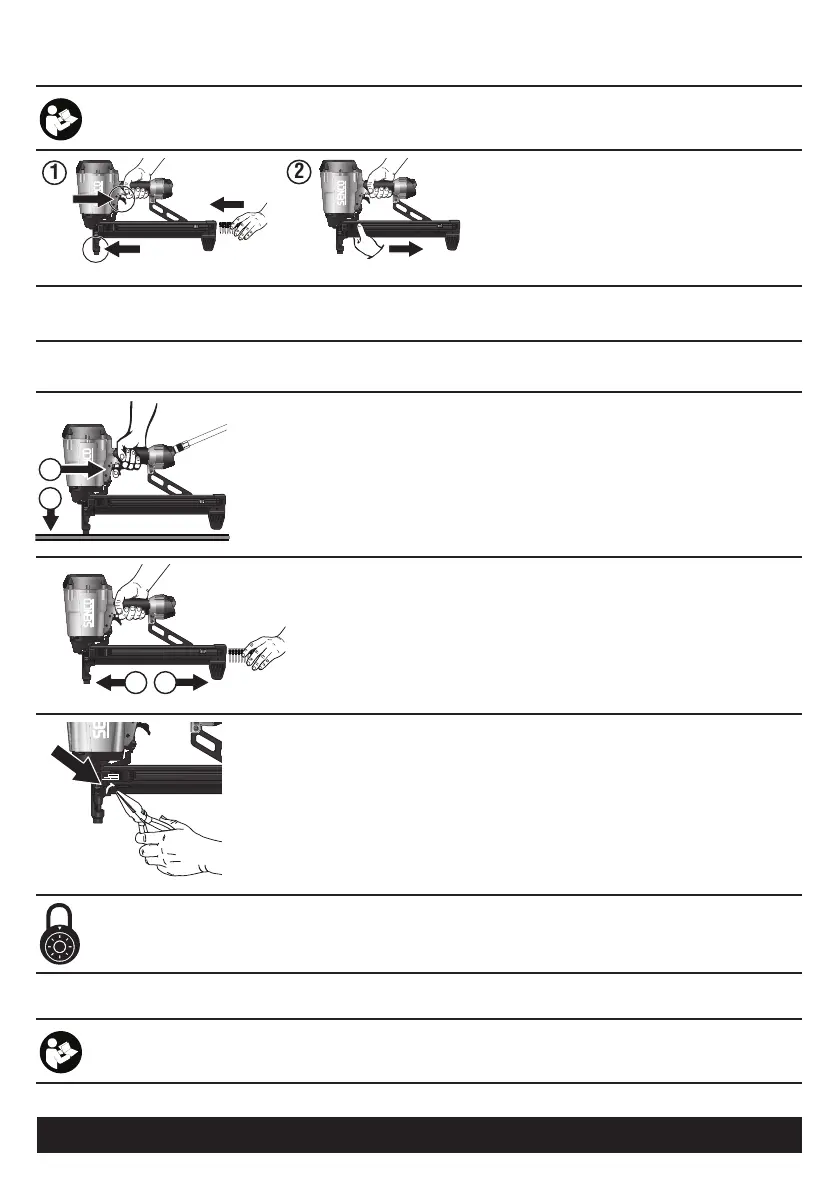

Tool Use
Read section titled “Safety Warnings” before using tool.
1
2
TO LOAD:
➀ Insert strip(s) of nails into rear of magazine. For
optimum performance use SENCO fasteners. Do
not load with workpiece contact (safety element) or
trigger depressed.
➁ Pull feeder shoe back.
UNLOADING THE TOOL:
Push Tab on feeder shoe to release feeder from strip. Pull fastener strip out past sheet metal nail detainer.
Do not load with workpiece contact (safety element) or trigger depressed.
Use only genuine SENCO fasteners (see Fastener Specifications).
1
2
ACTUATION SYSTEM:
With a Sequential Actuation (Restrictive) trigger, fasteners can only be driven one
way:
➀ Press the workpiece contact (safety element) against the work surface.
➁ Pull the trigger.
A single fastener will be driven.
Additional fastener drive requires both the workpiece contact and trigger be released.
21
CLEARING JAMS:
Should a fastener jam occur, disconnect air supply.
➀ Release the feeder shoe and slide it forward.
➁ Remove fasteners from tool.
Clear jammed fastener from guide body.
Connect air supply and replace fasteners. Pull feeder shoe back.
This tool is equipped with a lockout feature:
When approximately five nails remain in the magazine, the workpiece contact (safety element) will be locked in the
undepressed position until more nails are loaded into the magazine.
Repairs other than those described here should be performed only by trained, qualified personnel. Contact SENCO for
information at 1-800-543-4596.
Read section titled “Safety Warnings” before maintaining tool.
