ASSEMBLING AND DISASSEMBLING THE VACUUM CLEANER AND THE CHARGING
BASE

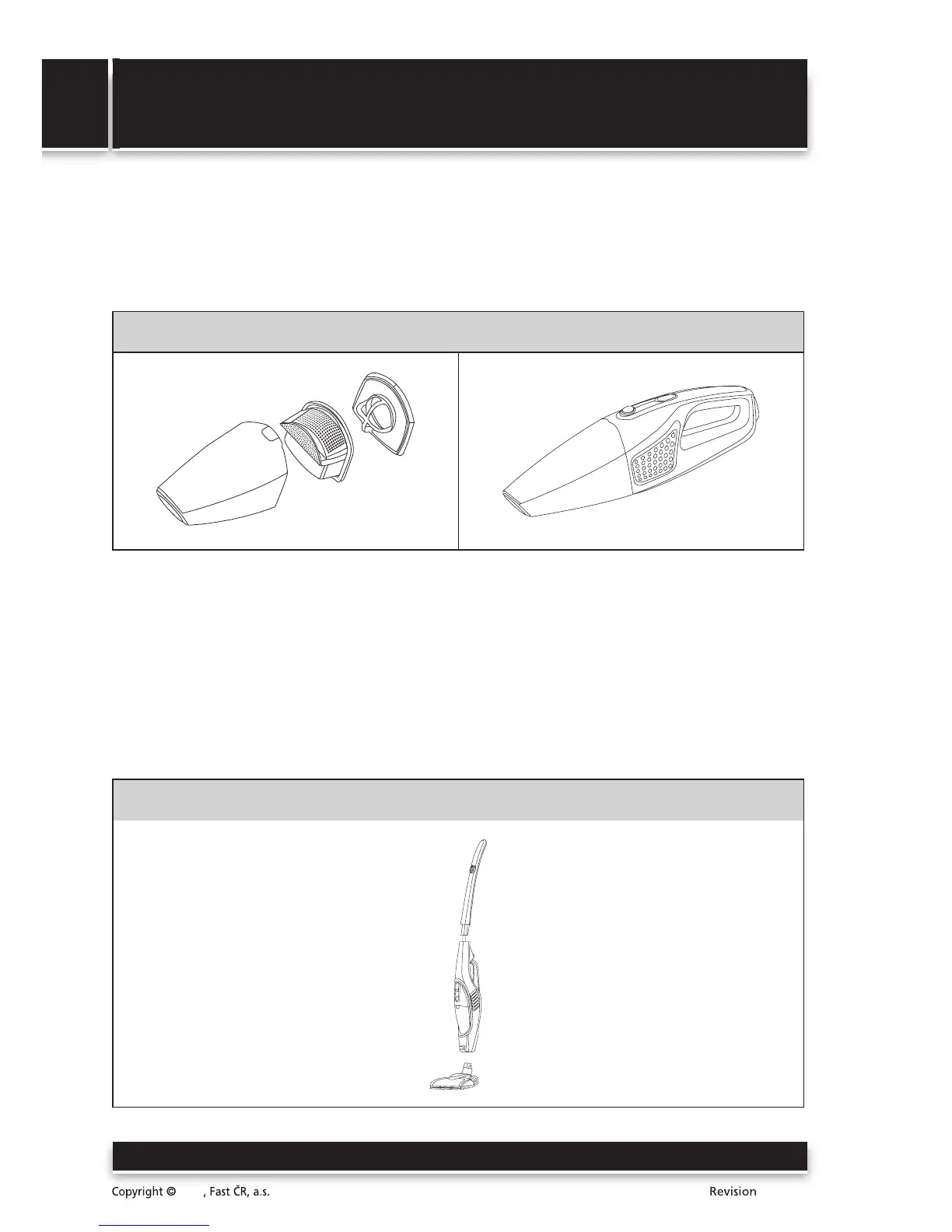

1. Assembling and disassembling the hand vacuum cleaner
• Insert the filter Aqk and the motor protection filter Aqj into the dust collection container A0. Attach
container A0 to the motor unit of the hand vacuum cleaner Aqf.
B
• It is possible to connect a brush or slot nozzle Awa or Aws, which is a part of the accessories, to the
suction opening Aqh.
• Disassemble the hand vacuum cleaner in reverse sequence. To remove the dust container A0, it is
necessary to first press button A8 and then to remove the container A0.
2. Assembling and disassembling the upright vacuum cleaner
• Connect the handle A1 to the body of the upright vacuum cleaner A6 so that the connecting cable
A3 is inside the connection. Secure the connection with the supplied screw A4. Into the body of
the upright vacuum cleaner A6 insert the assembled hand vacuum cleaner (without the brush or
slot nozzle Awa or Aws) from behind. Connect the floor nozzle Aqs to the bottom part of the body
of the vacuum cleaner A6.
C
