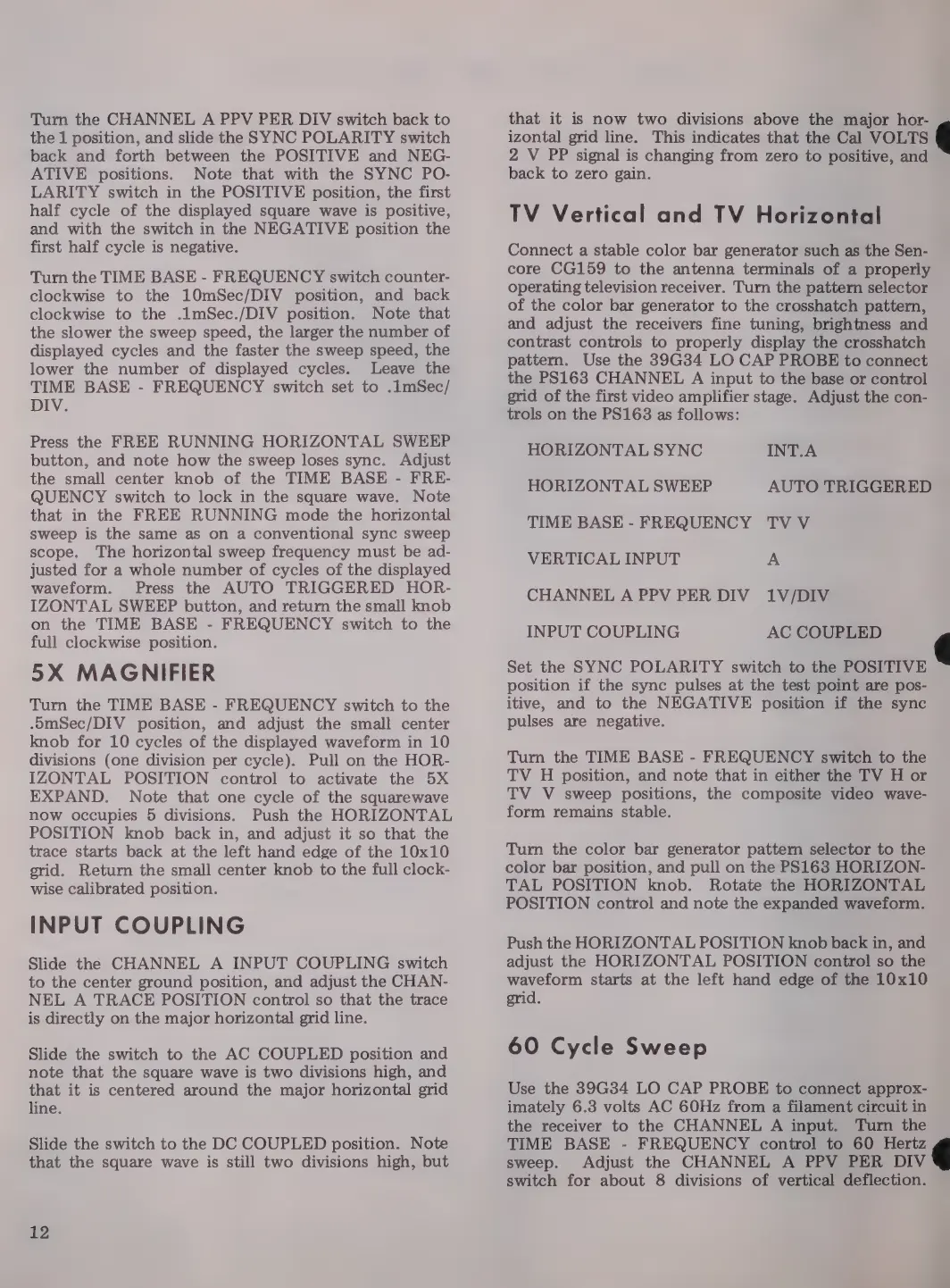

Turn
the
CHANNEL
A
PPV
PER
DIV
switch
back
to
the
1
position,
and
slide
the
SYNC
POLARITY
switch
back
and
forth
between
the
POSITIVE
and
NEG-
ATIVE
positions.
Note
that
with
the
SYNC
PO-
LARITY
switch
in
the
POSITIVE
position,
the
first
half
cycle
of
the
displayed
square
wave
is
positive,
and
with
the
switch
in
the
NEGATIVE
position
the
first
half
cycle
is
negative.
Turn
the
TIME
BASE
-
FREQUENCY
switch
counter-
clockwise
to
the
10mSec/DIV
position,
and
back
clockwise
to
the
.lmSec./DIV
position.
Note
that
the
slower
the
sweep
speed,
the
larger
the
number
of
displayed
cycles
and
the
faster
the
sweep
speed,
the
lower
the
number
of
displayed
cycles.
Leave
the
TIME
BASE
-
FREQUENCY
switch
set
to
.1mSec/
DIV.
Press
the
FREE
RUNNING
HORIZONTAL
SWEEP
button,
and
note
how
the
sweep
loses
sync.
Adjust
the
small
center
knob
of
the
TIME
BASE
-
FRE-
QUENCY
switch
to
lock
in
the
square
wave.
Note
that
in
the
FREE
RUNNING
mode
the
horizontal
sweep
is
the
same
as
on
a
conventional
sync
sweep
scope.
The
horizontal
sweep
frequency
must
be
ad-
justed
for
a
whole
number
of
cycles
of
the
displayed
waveform.
Press
the
AUTO
TRIGGERED
HOR-
IZONTAL
SWEEP
button,
and
return
the
small
knob
on
the
TIME
BASE
-
FREQUENCY
switch
to
the
full
clockwise
position.
5X
MAGNIFIER
Turn
the
TIME
BASE
-
FREQUENCY
switch
to
the
.-omSec/DIV
position,
and
adjust
the
small
center
knob
for
10
cycles
of
the
displayed
waveform
in
10
divisions
(one
division
per
cycle).
Pull
on
the
HOR-
IZONTAL
POSITION
control
to
activate
the
5X
EXPAND.
Note
that
one
cycle
of
the
squarewave
now
occupies
5
divisions.
Push
the
HORIZONTAL
POSITION
knob
back
in,
and
adjust
it
so
that
the
trace
starts
back
at
the
left
hand
edge
of
the
10x10
grid.
Return
the
small
center
knob
to
the
full
clock-
wise
calibrated
position.
INPUT
COUPLING
Slide
the
CHANNEL
A
INPUT
COUPLING
switch
to
the
center
ground
position,
and
adjust
the
CHAN-
NEL
A
TRACE
POSITION
control
so
that
the
trace
is
directly
on
the
major
horizontal
grid
line.
Slide
the
switch
to
the
AC
COUPLED
position
and
note
that
the
square
wave
is
two
divisions
high,
and
that
it
is
centered
around
the
major
horizontal
grid
line.
Slide
the
switch
to
the
DC
COUPLED
position.
Note
that
the
square
wave
is
still
two
divisions
high,
but
12
that
it
is
now
two
divisions
above
the
major
hor-
izontal
grid
line.
This
indicates
that
the
Cal
VOLTS
2
V
PP
signal
is
changing
from
zero
to
positive,
and
back
to
zero
gain.
TV
Vertical
and
TV
Horizontal
Connect
a
stable
color
bar
generator
such
as
the
Sen-
core
CG159
to
the
antenna
terminals
of
a
properly
operating
television
receiver.
Turn
the
pattern
selector
of
the
color
bar
generator
to
the
crosshatch
pattern,
and
adjust
the
receivers
fine
tuning,
brightness
and
contrast
controls
to
properly
display
the
crosshatch
pattern.
Use
the
39G34
LO
CAP
PROBE
to
connect
the
PS163
CHANNEL
A
input
to
the
base
or
control
grid
of
the
first
video
amplifier
stage.
Adjust
the
con-
trols
on
the
25163
as
follows:
HORIZONTAL
SYNC
INT.A
HORIZONTAL
SWEEP
AUTO
TRIGGERED
TIME
BASE
-
FREQUENCY
TV
V
VERTICAL
INPUT
A
CHANNEL
A
PPV
PER
DIV
1V/DIV
INPUT
COUPLING
AC
COUPLED
Set
the
SYNC
POLARITY
switch
to
the
POSITIVE
position
if
the
sync
pulses
at
the
test
point
are
pos-
itive,
and
to
the
NEGATIVE
position
if
the
sync
pulses
are
negative.
Turn
the
TIME
BASE
-
FREQUENCY
switch
to
the
TV
H
position,
and
note
that
in
either
the
TV
H
or
TV
V
sweep
positions,
the
composite
video
wave-
form
remains
stable.
Turn
the
color
bar
generator
pattern
selector
to
the
color
bar
position,
and
pull
on
the
25163
HORIZON-
TAL
POSITION
knob.
Rotate
the
HORIZONTAL
POSITION
control
and
note
the
expanded
waveform.
Push
the
HORIZONTAL
POSITION
knob
back
in,
and
adjust
the
HORIZONTAL
POSITION
control
so
the
waveform
starts
at
the
left
hand
edge
of
the
10x10.
grid.
60
Cycle
Sweep
Use
the
3934
LO
CAP
PROBE
to
connect
approx-
imately
6.3
volts
AC
60Hz
from
a
filament
circuit
in
the
receiver
to
the
CHANNEL
A
input.
Turn
the
TIME
BASE
-
FREQUENCY
control
to
60
Hertz
sweep.
Adjust
the
CHANNEL
A
PPV
PER
DIV
switch
for
about
8
divisions
of
vertical
deflection.
