Sencore PS163 User Manual

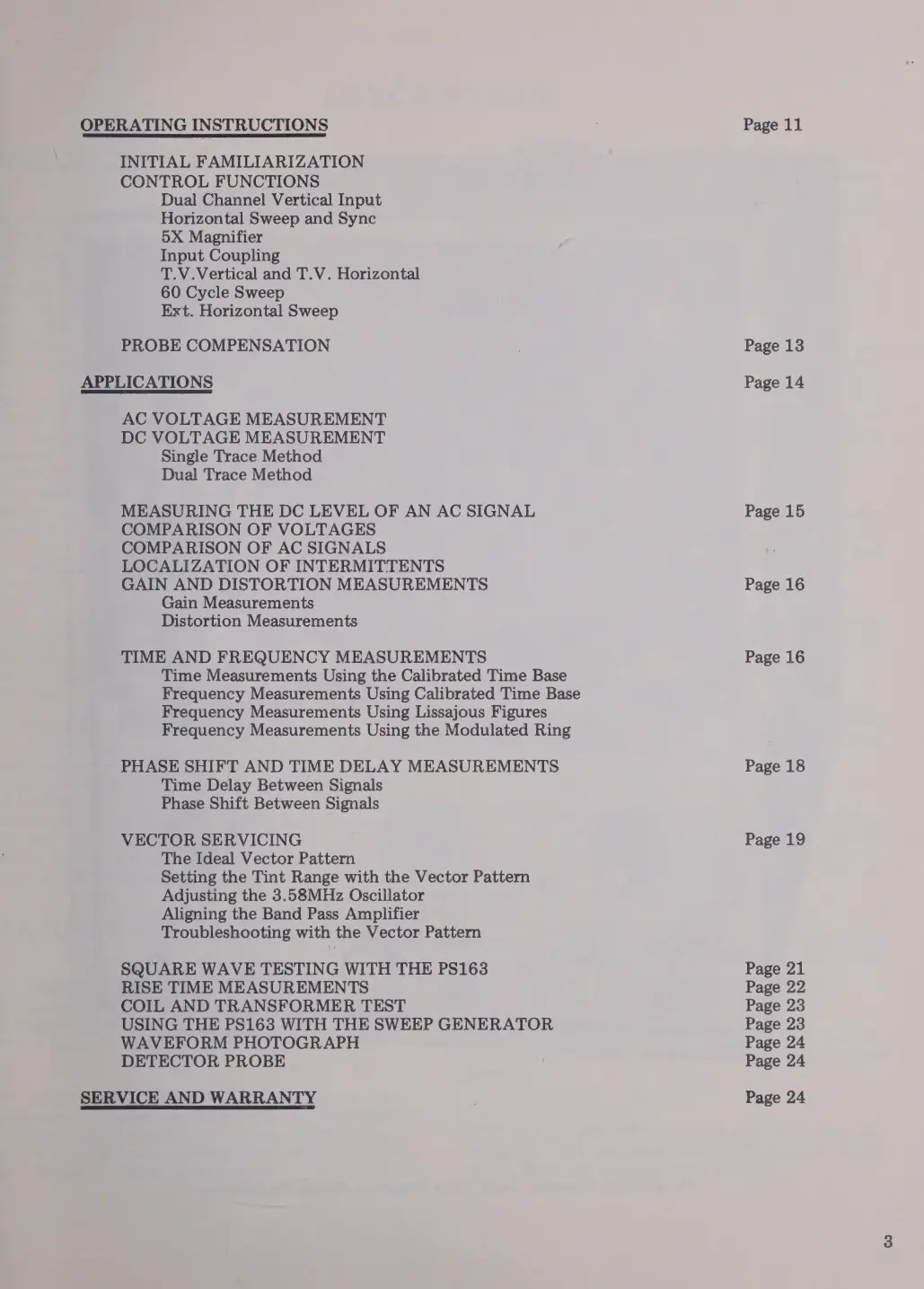

OPERATING INSTRUCTIONS Page 11
INITIAL FAMILIARIZATION
CONTROL FUNCTIONS
Dual Channel Vertical Input
Horizontal Sweep and Sync
5X Magnifier
Input Coupling
T.V.Vertical and T.V. Horizontal
60 Cycle Sweep
Ext. Horizontal Sweep
PROBE COMPENSATION Page 13
APPLICATIONS Page 14
AC VOLTAGE MEASUREMENT
DC VOLTAGE MEASUREMENT
Single Trace Method
Dual Trace Method
MEASURING THE DC LEVEL OF AN AC SIGNAL Page 15
COMPARISON OF VOLTAGES
COMPARISON OF AC SIGNALS
LOCALIZATION OF INTERMITTENTS
GAIN AND DISTORTION MEASUREMENTS Page 16
Gain Measurements
Distortion Measurements
TIME AND FREQUENCY MEASUREMENTS Page 16
Time Measurements Using the Calibrated Time Base
Frequency Measurements Using Calibrated Time Base
Frequency Measurements Using Lissajous Figures
Frequency Measurements Using the Modulated Ring
PHASE SHIFT AND TIME DELAY MEASUREMENTS Page 18
Time Delay Between Signals
Phase Shift Between Signals
VECTOR SERVICING Page 19
The Ideal Vector Pattern
Setting the Tint Range with the Vector Pattern
Adjusting the 3.58MHz Oscillator
Aligning the Band Pass Amplifier
Troubleshooting with the Vector Pattern
SQUARE WAVE TESTING WITH THE PS163 Page 21
RISE TIME MEASUREMENTS Page 22
COIL AND TRANSFORMER TEST Page 23
USING THE PS163 WITH THE SWEEP GENERATOR Page 23
WAVEFORM PHOTOGRAPH Page 24
DETECTOR PROBE Page 24
SERVICE AND WARRANTY Page 24

Sencore PS163 Specifications

General

Brand	Sencore
Model	PS163
Category	Test Equipment
Language	English
