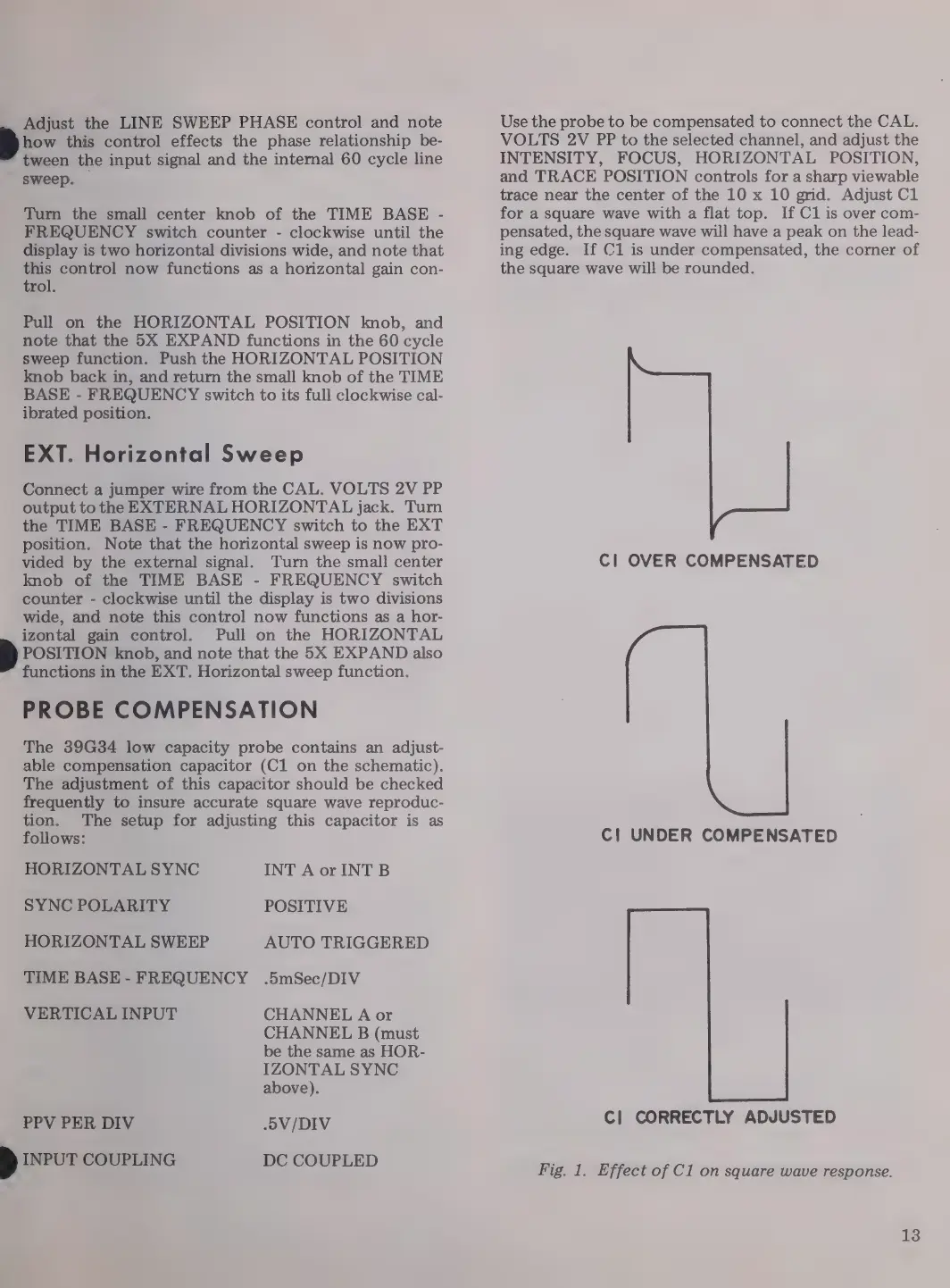

. Adjust the LINE SWEEP PHASE control and note Use the probe to be compensated to connect the CAL.
how this control effects the phase relationship be- VOLTS 2V PP to the selected channel, and adjust the
tween the input signal and the internal 60 cycle line INTENSITY, FOCUS, HORIZONTAL POSITION,
sweep. and TRACE POSITION controls for a sharp viewable
trace near the center of the 10 x 10 grid. Adjust 1
Turn the small center knob of the TIME BASE - for a square wave with a flat top. If C1 is over com-
FREQUENCY switch counter - clockwise until the pensated, the square wave will have a peak on the lead-
display is two horizontal divisions wide, and note that ing edge. If C1 is under compensated, the corner of
this control now functions as a horizontal gain con- the square wave will be rounded.
trol.
Pull on the HORIZONTAL POSITION knob, and
note that the 5X EXPAND functions in the 60 cycle
sweep function. Push the HORIZONTAL POSITION
knob back in, and return the small knob of the TIME
BASE - FREQUENCY switch to its full clockwise cal-
ibrated position.
EXT. Horizontal Sweep
Connect a jumper wire from the CAL. VOLTS 2V PP
output to the EXTERNAL HORIZONTAL jack. Turn
the TIME BASE - FREQUENCY switch to the EXT
position. Note that the horizontal sweep is now pro-
vided by the external signal. Turn the small center Cl OVER COMPENSATED
knob of the TIME BASE - FREQUENCY switch
counter - clockwise until the display is two divisions
wide, and note this control now functions as a hor-
izontal gain control. Pull on the HORIZONTAL
POSITION knob, and note that the 5X EXPAND also
functions in the EXT. Horizontal sweep function.
PROBE COMPENSATION
The 39G34 low capacity probe contains an adjust-
able compensation capacitor (C1 on the schematic).
The adjustment of this capacitor should be checked
frequently to insure accurate square wave reproduc-
tion. The setup for adjusting this capacitor is as
swe: Cl UNDER COMPENSATED
HORIZONTAL SYNC INT A or INT B
SYNC POLARITY POSITIVE
HORIZONTAL SWEEP AUTO TRIGGERED
TIME BASE - FREQUENCY .5mSec/DIV
VERTICAL INPUT CHANNEL A or
CHANNEL B (must
be the same as HOR-
IZONTAL SYNC
above).
PPV
PER
DIV
.5V/DIV
CI
CORRECTLY
ADJUSTED
2
7 taba Area nh Sa Marea Fig. 1. Effect of C1 on square wave response.
13
