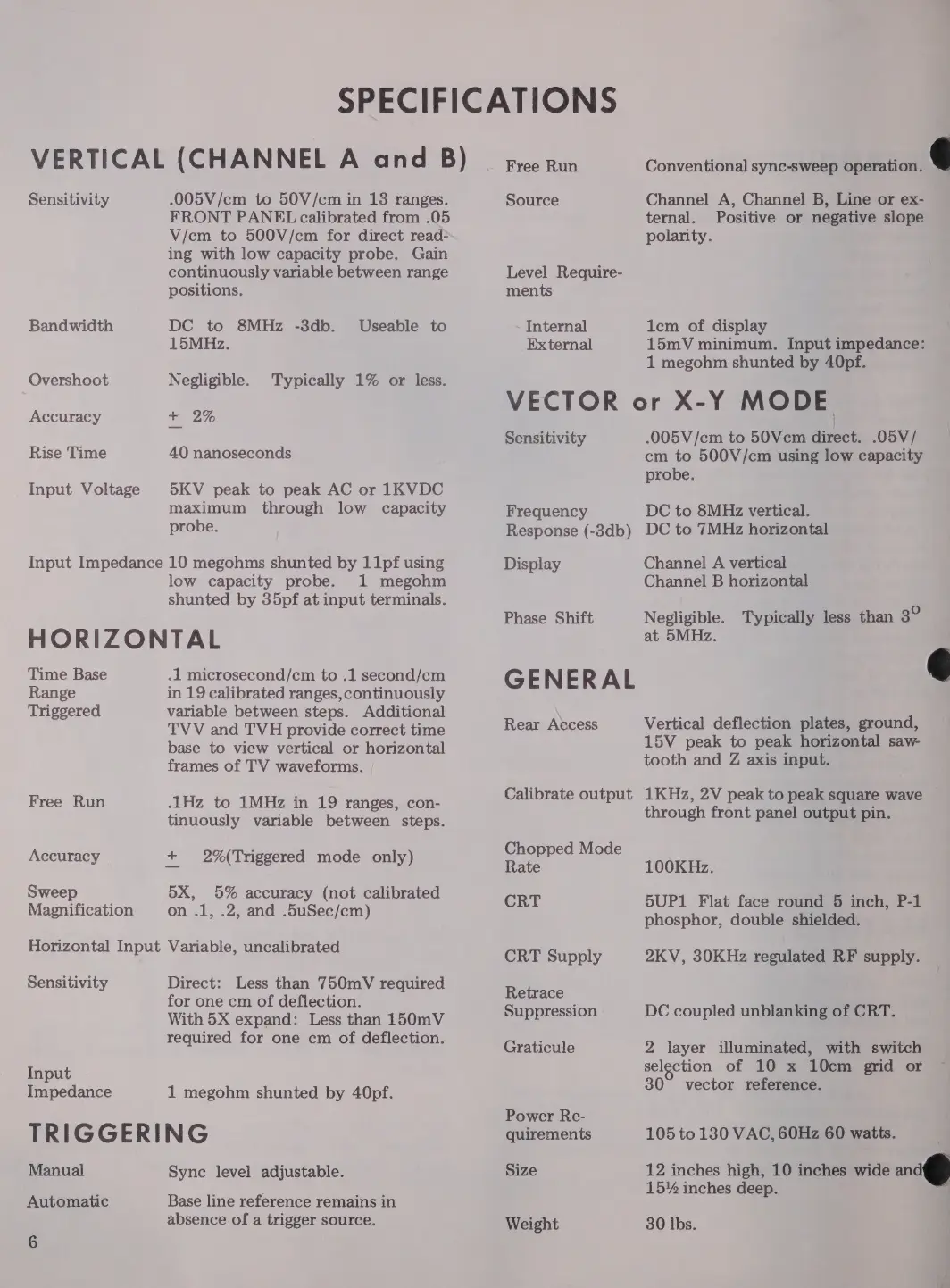

SPECIFICATIONS
VERTICAL (CHANNEL A and B)
Sensitivity .005V/cm to 50V/cm in 13 ranges.
FRONT PANEL calibrated from .05
V/cm to 500V/cm for direct read-
ing with low capacity probe. Gain
continuously variable between range
positions.
Bandwidth DC to 8MHz -8db. Useable to
15MHz.
Overshoot Negligible. Typically 1% or less.
Accuracy + 2%
Rise Time 40 nanoseconds
Input Voltage 5KV peak to peak AC or 1KVDC
maximum through low capacity
probe.
Input Impedance 10 megohms shunted by 11pf using
low capacity probe. 1 megohm
shunted by 35pf at input terminals.
HORIZONTAL
Time Base .1 microsecond/cm to .1 second/cm
Range in 19 calibrated ranges, continuously
Triggered variable between steps. Additional
TVV and TVH provide correct time
base to view vertical or horizontal
frames of TV waveforms.
Free Run .1Hz to 1MHz in 19 ranges, con-
tinuously variable between steps.
Accuracy + 2%(Triggered mode only)
Sweep 5X, 5% accuracy (not calibrated
Magnification on .1, .2, and .5uSec/cm)
Horizontal Input Variable, uncalibrated
Sensitivity Direct: Less than 750mV required
for one cm of deflection.
With 5X expand: Less than 150mV
required for one cm of deflection.
Input
Impedance 1 megohm shunted by 40pf.
TRIGGERING
Manual Sync level adjustable.
Base line reference remains in
absence of a trigger source.
Automatic
6
Free Run
Source
Level Require-
ments
Internal
External
Conventional sync-sweep operation. €
Channel A, Channel B, Line or ex-
ternal. Positive or negative slope
polarity.
lcm of display
15mV minimum. Input impedance:
1 megohm shunted by 40pf.
VECTOR or X-Y MODE
Sensitivity
Frequency
Response (-3db)
Display
Phase Shift
GENERAL
Rear Access
Calibrate output
Chopped Mode
Rate
CRT
CRT Supply
Retrace
Suppression
Graticule
Power Re-
quirements
Size
Weight
.005V/cm to 50Vcm direct. .05V/
cm to 500V/cm using low capacity
probe.
DC to 8MHz vertical.
DC to 7MHz horizontal
Channel A vertical
Channel B horizontal
Negligible. Typically less than 3°
at 5MHz.
Vertical deflection plates, ground,
15V peak to peak horizontal saw-
tooth and Z axis input.
1KHz, 2V peak to peak square wave
through front panel output pin.
100KHz.
5UP1 Flat face round 5 inch, P-1
phosphor, double shielded.
2KV, 30KHz regulated RF supply.
DC coupled unblanking of CRT.
2 layer illuminated, with switch
selection of 10 x 10cm grid or
30 vector reference.
105 to 130 VAC, 60Hz 60 watts.
12 inches high, 10 inches wide andi
15% inches deep.
30 lbs.
