USER MANUAL – Z-SG
8
TX
Blinking light
The module sent a RS485 data packet

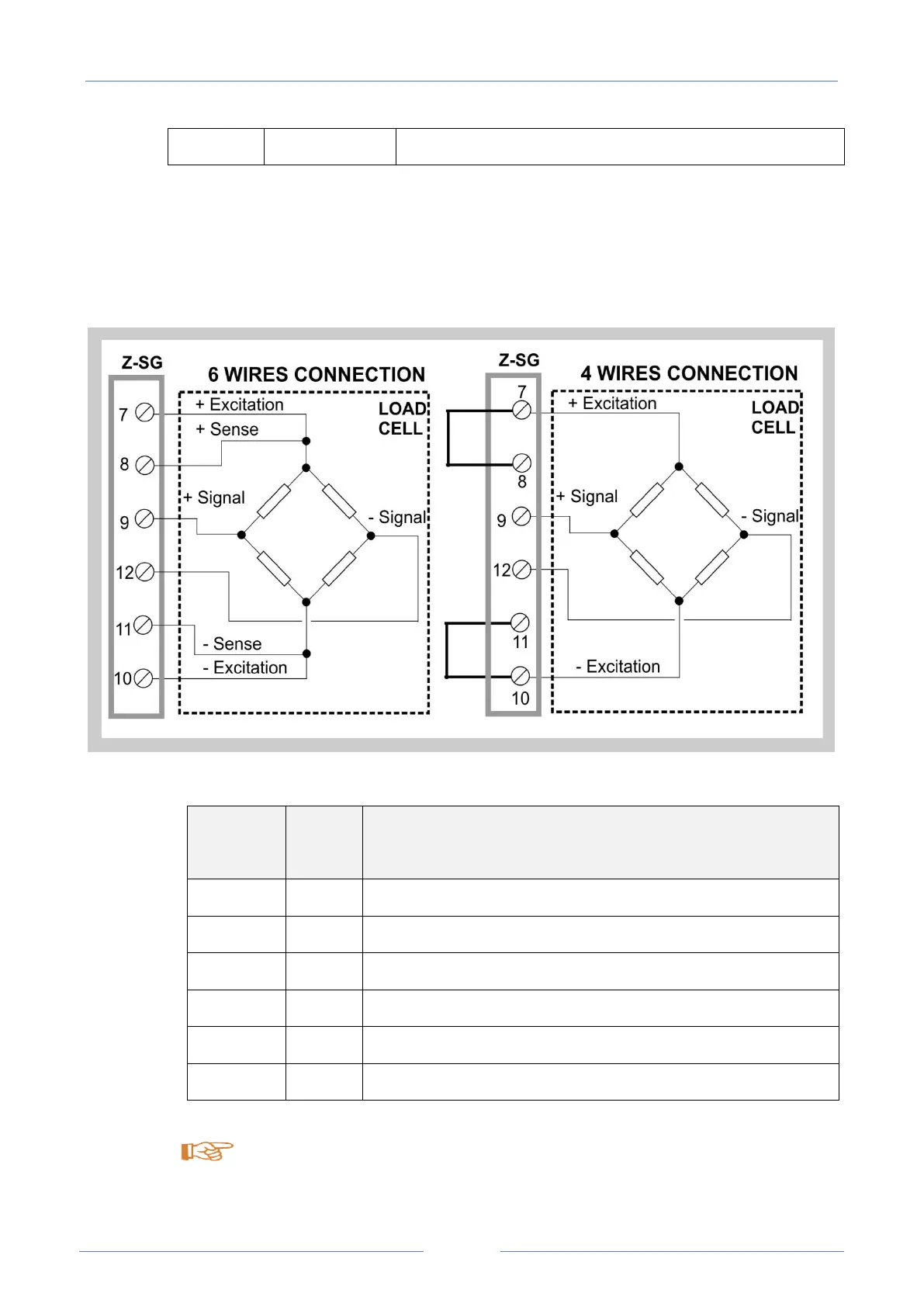

5. Load Cell: 4 or 6 Wires Connection
The Load Cell can be connected in 6 or 4 wires:
Input
Screw
terminal
Meaning
+ Excitation
7
Load cell power (+)
+ Sense
8
Reading of load cell power (+)
+ Signal
9
Load cell output signal (+)
- Signal
12
Load cell output signal (-)
- Sense
11
Reading of load cell power (-)
- Excitation
10
Load cell power (-)
To connect the Z-SG / Z-SG-L to load cell in 4-wires mode:
- short-circuit screw terminal 7 to screw terminal 8;
