USER MANUAL – Z-SG
- short-circuit screw terminal 10 to screw terminal 11.
Use shielded cables for connections.
6. ANALOG OUTPUT (ONLY Z-SG MODEL)
The Analog output can be configured in Voltage or Current mode:

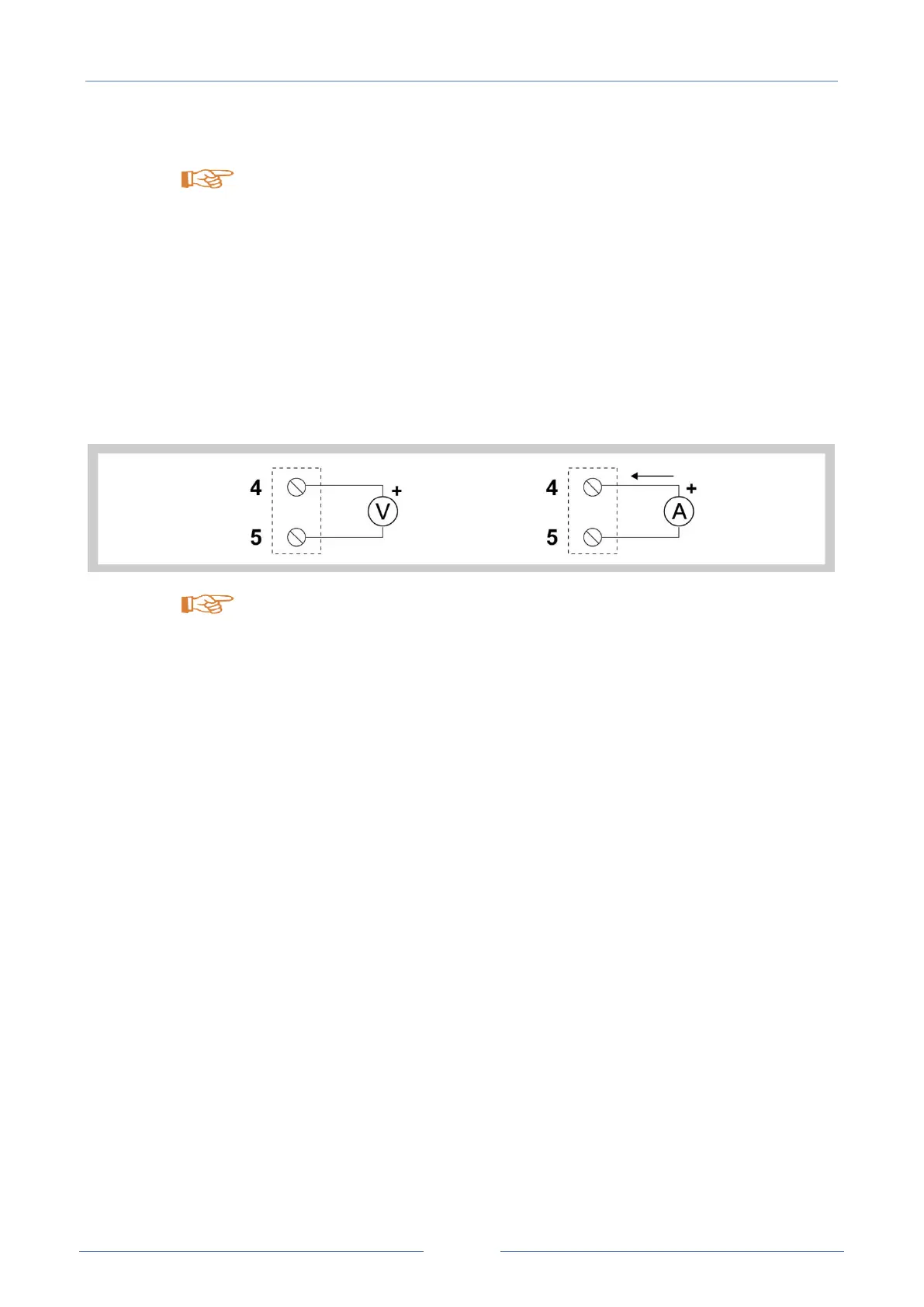

”V” means voltmeter, “A” means amperemeter.
The Analog output is proportional to the net weight measure.
The Analog Output 0% and 100% can be fully configurable.
7. “STABLE WEIGHT” CONDITION
Z-SG / Z-SG-L module allows to detect when a weight measure is stable:
weight stability information is available through 40066 Modbus register (bit Nr 4) or through
digital output.
In particular, a weight measure is stable:
If the net weight measure variation (reg.40064-40065), in a given time interval (“delta time”,
reg.40058), is less than weight interval (“delta weight”, reg.40056-40057).
8. DIGITAL INPUT / DIGITAL OUTPUT
