Putting the receiver into operation
11
Mounting the antennas to the front of the rack

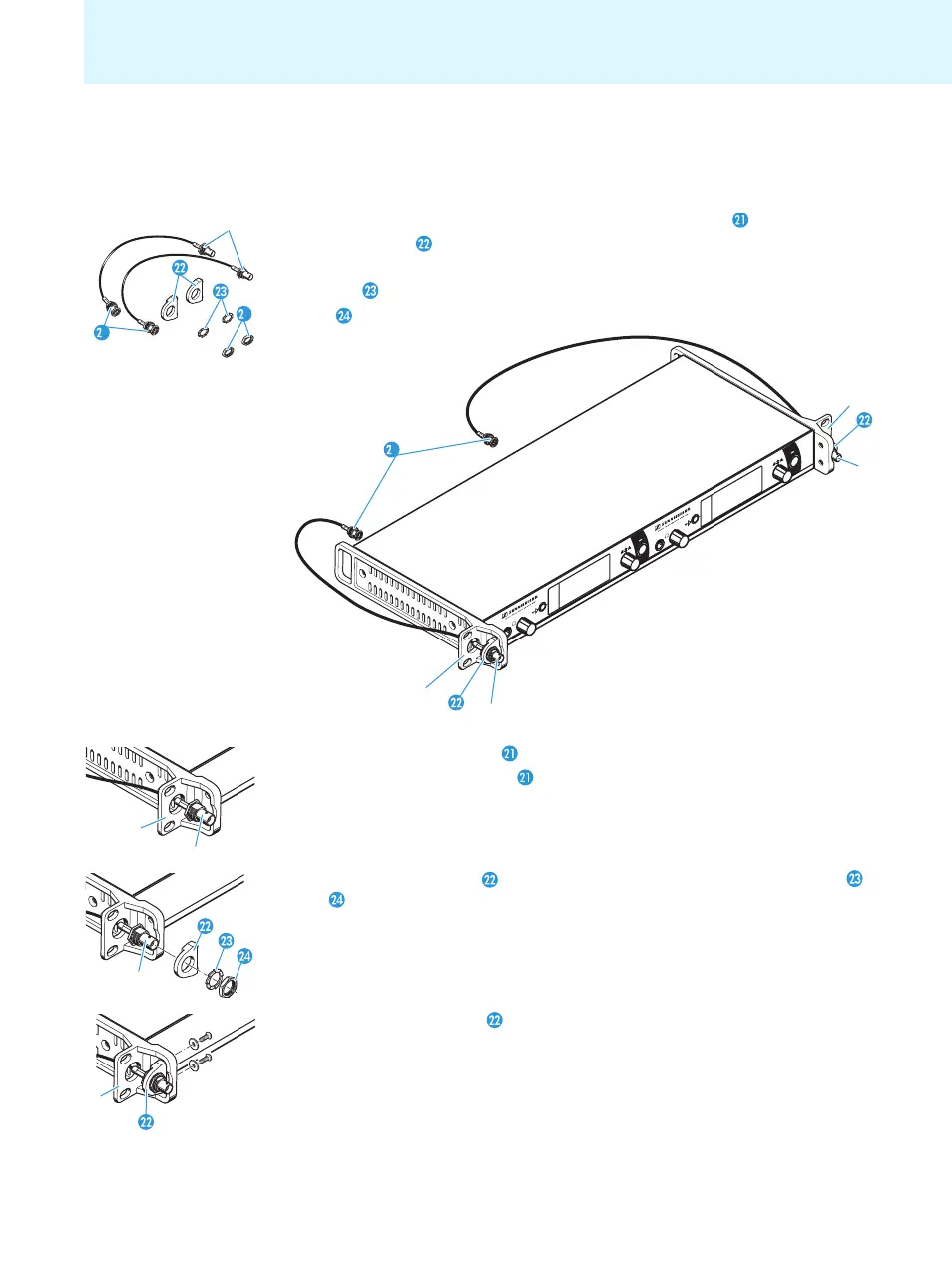

To mount the antenna connections to the front of the rack when rack mounting the receiver,
you require the GA 3030 AM antenna front mount kit (optional accessory). The GA 3030 AM
consists of:
• 2 BNC extension cables (screw-in BNC socket 씏 to BNC connector ),
• 2 antenna holders ,
•4 screws,
•2 washers ,
•2 nuts .
왘 Guide the two BNC connectors through the holes in the rack mount “ears” 쐃.
왘 Connect the two BNC connectors to the two BNC sockets 씋 and 씎.
왘 Screw the antenna holders to the BNC sockets 씏 using the supplied washers and
nuts .
왘 Secure the antenna holders to the rack mount “ears” 쐃 of the receiver using two of
the supplied screws respectively.
왘 Slide the receiver into the 19” rack.
