EW-DX SK | EW-DX SK 3-PIN bodypack transmitter
165
Connecting a microphone to the EW-DX SK 3-PIN
To connect a microphone to the EW-DX SK 3-PIN bodypack
transmitter:

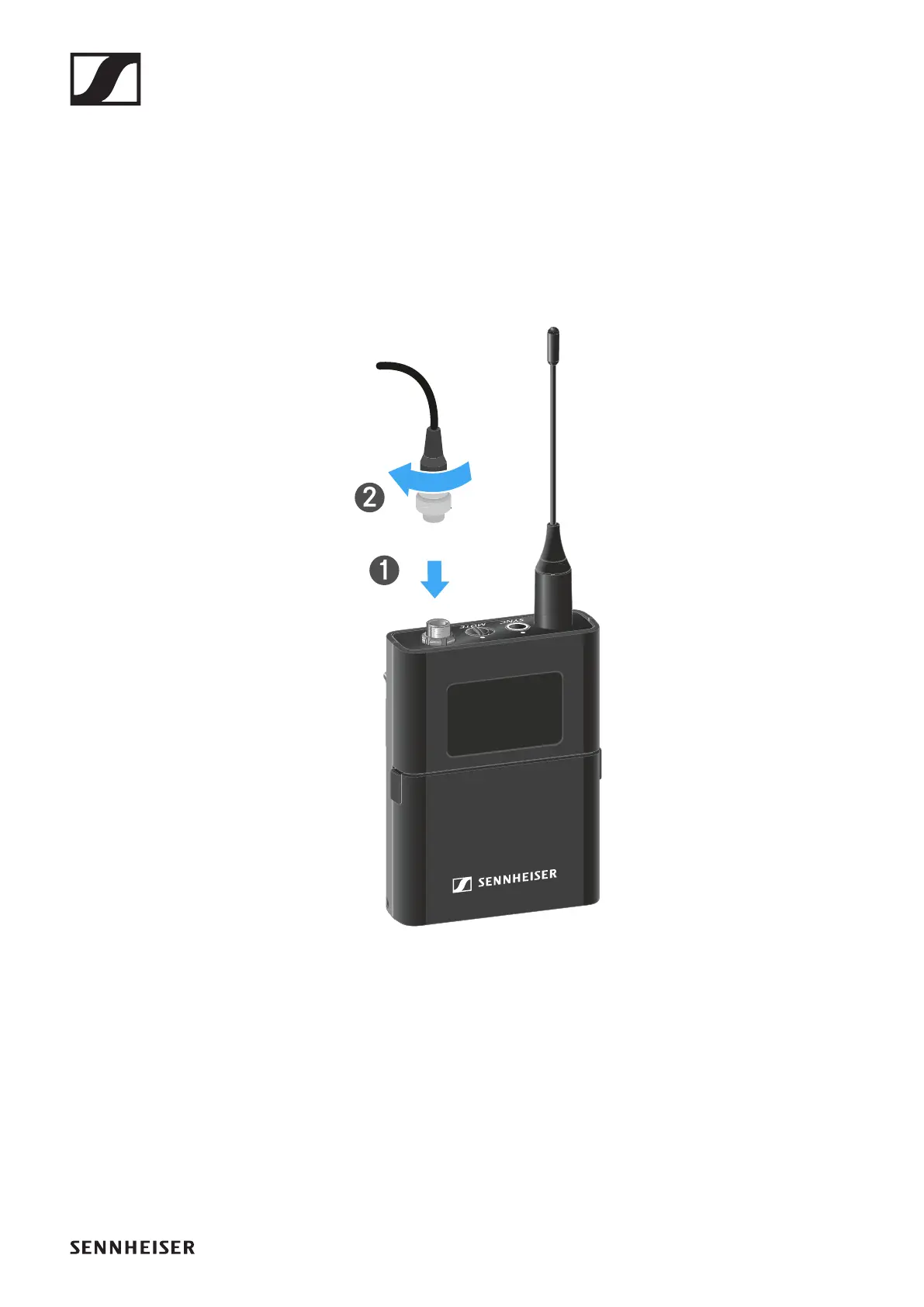

▷ Insert the cable’s three-pin plug into the socket on the
bodypack transmitter as shown in the diagram.
▷ Screw the plug’s coupling ring onto the audio socket thread
of the bodypack transmitter.
Compatible microphones
The following microphones are compatible with the EW-
DX SK 3-PIN bodypack transmitter:
Lavalier microphones:
• MKE 1-4 | Lavalier microphone with omni-directional pat-
tern
• MKE 2-4 | Lavalier microphone with omni-directional pat-
tern
