EW-DX SKM | EW-DX SKM-S handheld transmitter
137
EW-DX SKM | EW-DX SKM-S handheld
transmitter

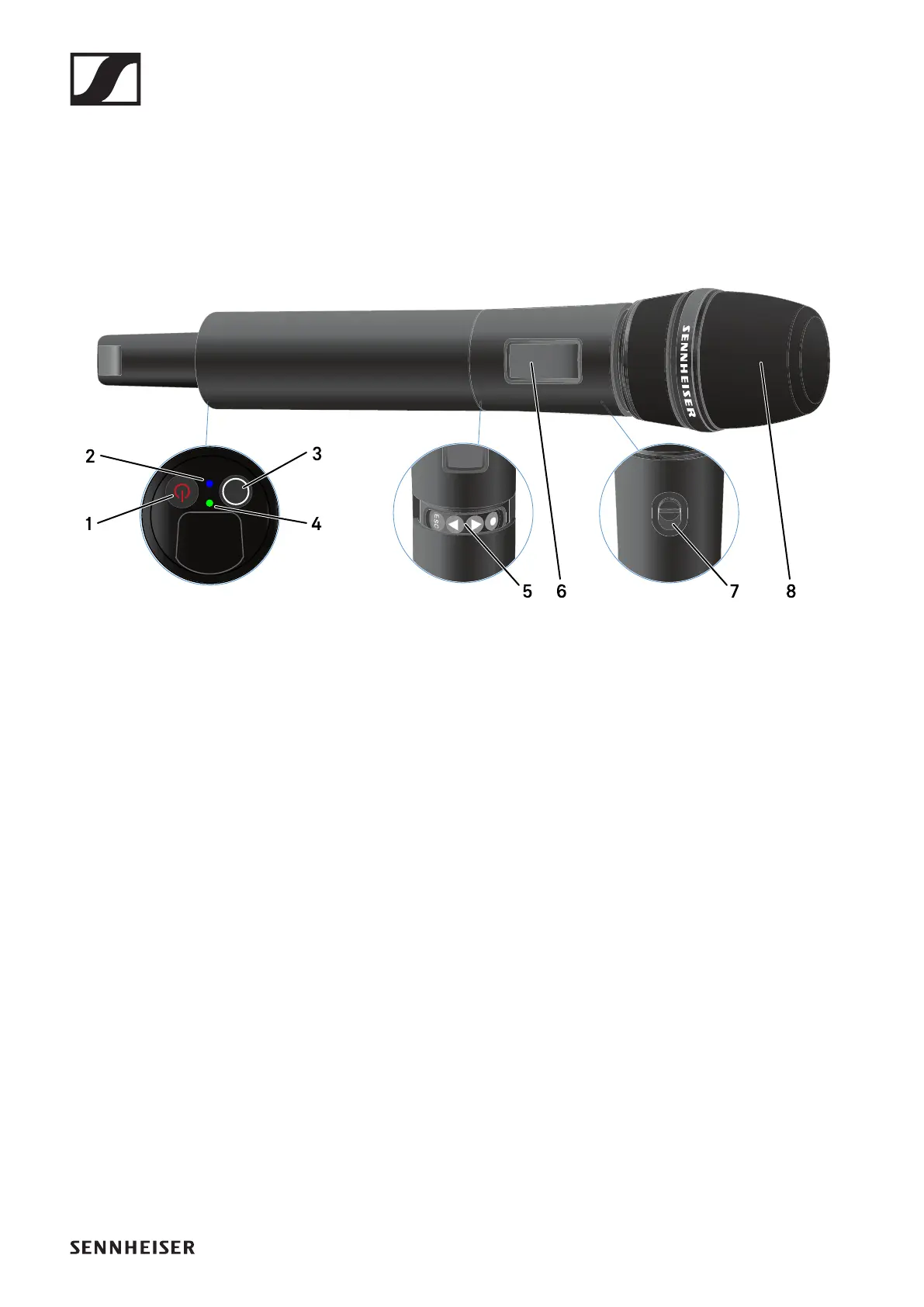

Product overview
►
1 ON/OFF button
• See „Switching the handheld transmitter on and off“
2 DATA LED
• See „Meaning of the LEDs“
3 SYNC button
• See „Establishing a connection to the receiver“
4 LINK LED
• See „Meaning of the LEDs“
5 Function buttons for navigating the menu
• See „Buttons for navigating the handheld transmitter’s
menu“
6 Display panel
• See „Information on the handheld transmitter’s display“
7 Mute switch (EW-DX SKM-S only)
• See „Configuring mute mode and muting the handheld
transmitter (EW-DX SKM-S only)“
8 Microphone module
• See „Replacing the microphone module“
