EW-D EM rack receiver
37

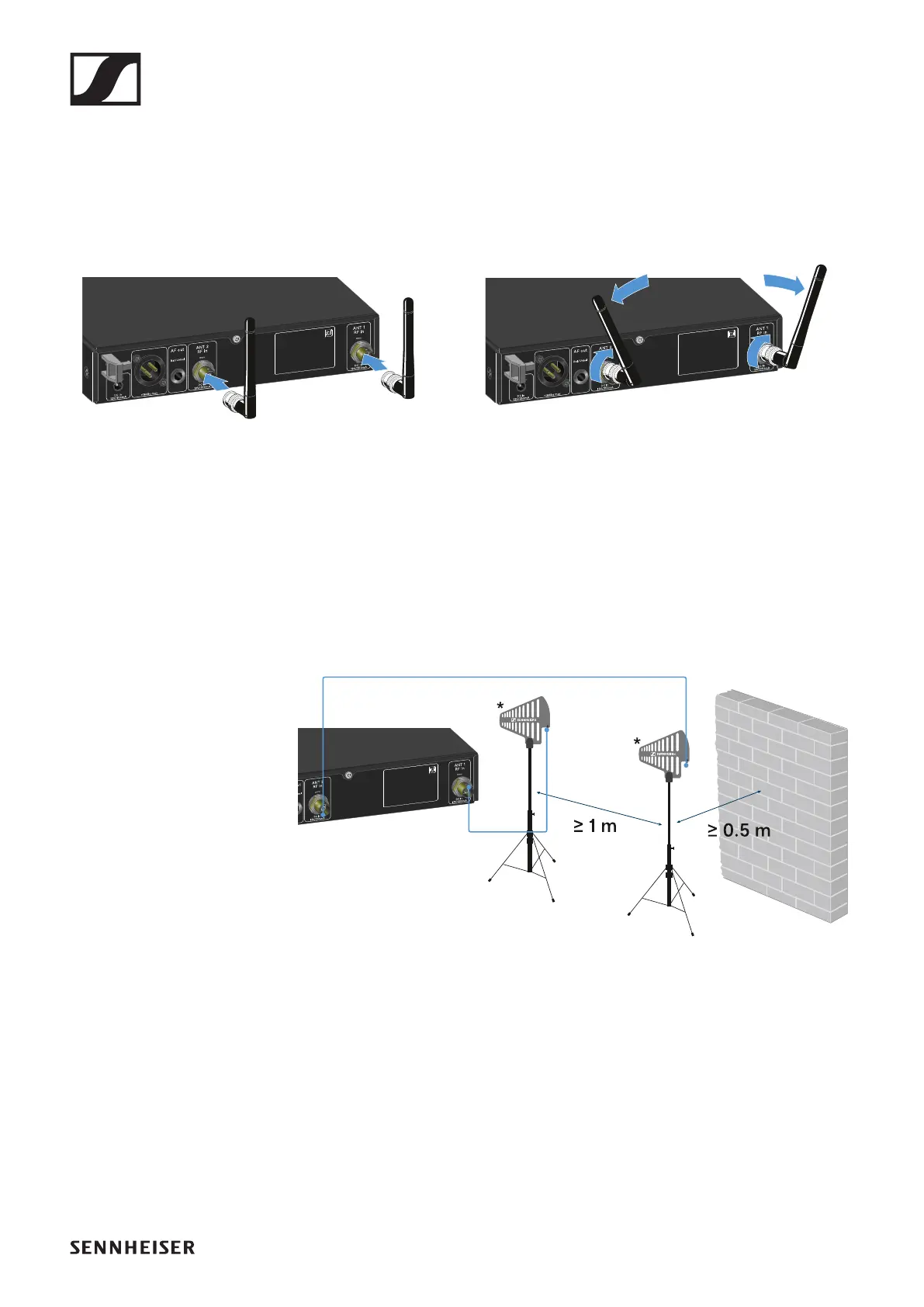

Connecting antennas
Connecting rod antennas
To connect the supplied rod antennas:
►
▷ Connect the antennas to the two antenna inputs on the re-
ceiver as shown in the figure.
▷ Slightly angle the antennas to the left and right as shown in
the figure.
Connecting remote antennas
To connect remote antennas:
►
▷ Connect the antennas to the two antenna inputs on the re-
ceiver as shown in the figure.
▷ Observe the specified minimum spacing.
*Recommended antennas:
• ADP UHF | 470 – 1075 MHz
• AD 1800 | 1400 – 2400 MHz
If you are using more than one receiver, we recommend
using remote antennas and possibly the EW-D ASA anten-
na splitter („EW-D ASA antenna splitter“).
