Connecting an instrument or line source to
the bodypack transmitter
Connecting an instrument or line source to the EW-
DX SK
You can connect instruments or audio sources with a line level
to the bodypack transmitter.
To do this, you will need the CI 1 (6.3 mm jack plug on a lock-
able 3.5 mm jack plug) or CL 2 (XLR-3F plug on a lockable 3.5
mm jack plug) Sennheiser cables.
To connect an instrument or line source to bodypack transmit-
ter:

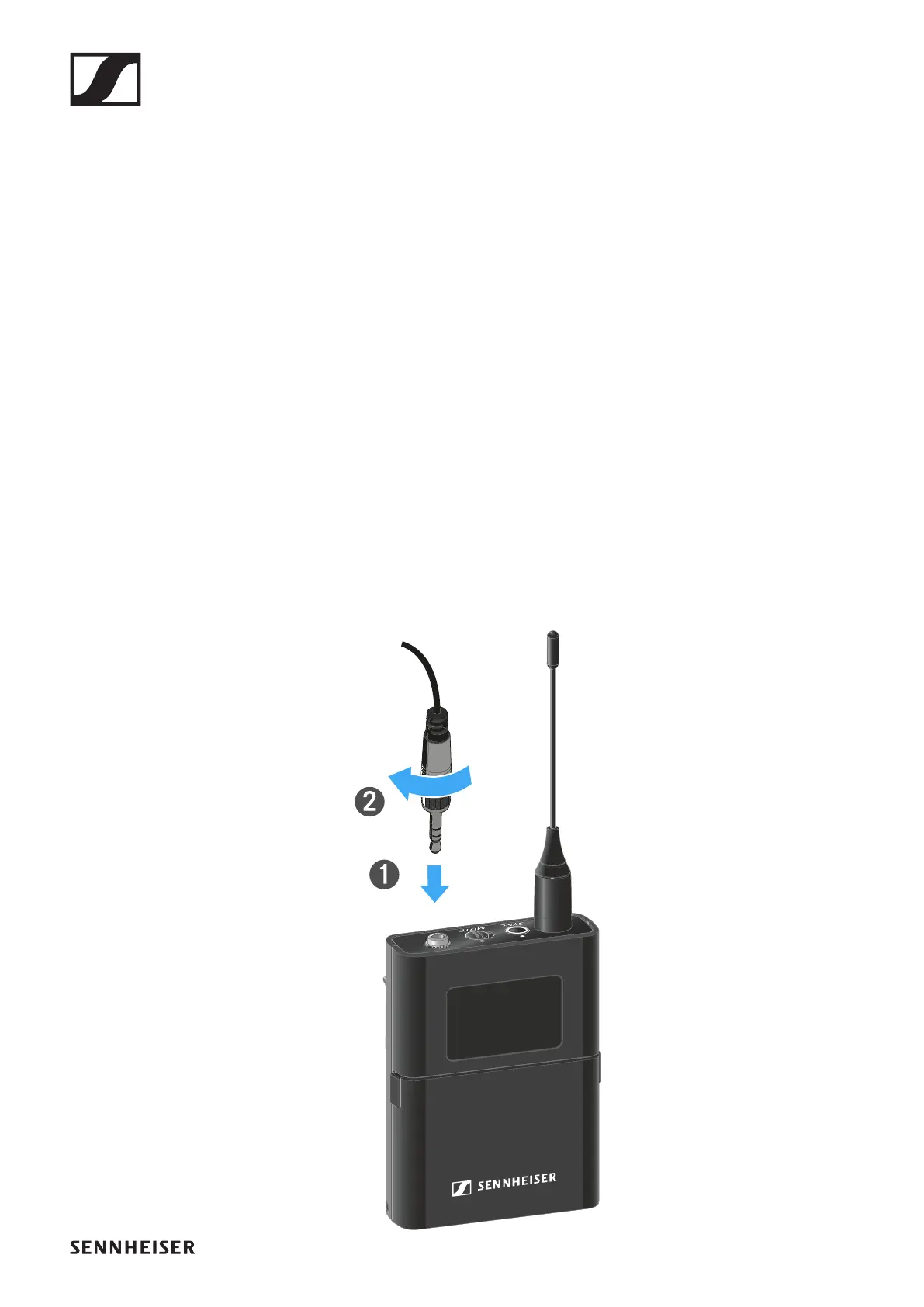

▷ Insert the cable’s 3.5 mm jack plug into the socket on the
bodypack transmitter as shown in the diagram.
▷ Screw the plug’s coupling ring onto the audio socket thread
of the bodypack transmitter.
